Fujitsu PRIMERGY TX200 S7 (Intel Xeon E5-2470) SPECpower_ssj2008 = 5,689 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Aug 31, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Sep 19, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 250 20.5
Calibration 2 251 20.5
Calibration 3 252 20.5
100% 252 20.6
90% 221 20.6
80% 188 20.6
70% 156 20.7
60% 133 20.7
50% 116 20.7
40% 103 20.6
30% 92.5 20.6
20% 82.1 20.6
10% 71.0 20.5
Active Idle 50.7 20.5

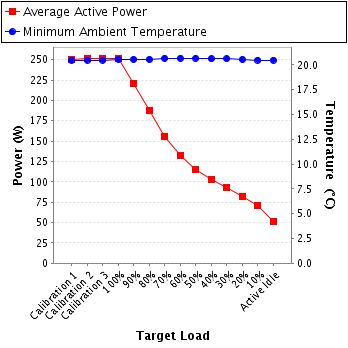

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 1.10 2.5 0.990 250 0.1%
Calibration 2 230 250.0 1.11 2.5 0.990 251 0.1%
Calibration 3 230 250.0 1.11 2.5 0.990 252 0.1%
100% 231 250.0 1.10 2.5 0.989 252 0.1%
90% 231 250.0 0.975 2.5 0.985 221 0.2%
80% 231 250.0 0.835 2.5 0.979 188 0.2%
70% 231 250.0 0.689 2.5 0.980 156 0.2%
60% 232 250.0 0.587 1.2 0.977 133 0.1%
50% 232 250.0 0.512 1.2 0.975 116 0.1%
40% 232 250.0 0.459 1.2 0.971 103 0.2%
30% 231 250.0 0.414 1.2 0.966 92.5 0.2%
20% 231 250.0 0.370 1.2 0.961 82.1 0.2%
10% 231 250.0 0.324 1.2 0.950 71.0 0.2%
Active Idle 231 250.0 0.241 1.2 0.912 50.7 0.3%

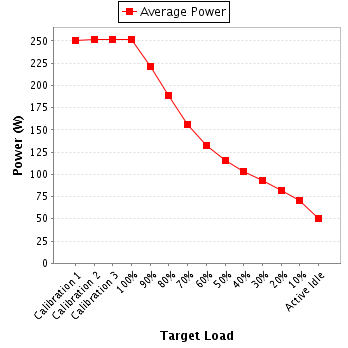

Power details for pwr1
