Fujitsu PRIMERGY TX200 S7 (Intel Xeon E5-2470) ssj_ops@100% = 1,516,025
ssj_ops@100% per JVM = 94,752
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Aug 31, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Sep 19, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,279
Calibration 2     1,514,541
Calibration 3     1,518,862
ssj_ops@calibrated=1,516,701
100% 100.0% 1,516,701 1,516,025
90% 89.9% 1,365,031 1,363,127
80% 80.1% 1,213,361 1,214,468
70% 69.9% 1,061,691 1,060,316
60% 59.8% 910,021 906,891
50% 49.9% 758,351 756,454
40% 39.8% 606,681 604,164
30% 30.0% 455,010 454,989
20% 20.0% 303,340 302,814
10% 10.0% 151,670 151,766
Active Idle   0 0
Graph of results
System Under Test
Set: 'TX200 S7'
Set Identifier: TX200 S7
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX200 S7 (Intel Xeon E5-2470)
Form Factor: Tower
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8-Core, 2.30GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Fujitsu Technology Solutions S26113-E575-E10
Disk Drive: 1 x 250GB, HDD, 2.5" SATA, S26361-F3708-E250
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82574L Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.7.0
Management Firmware Version: 6.53A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-K1IRTERJUTK.001 94,627
WIN-K1IRTERJUTK.002 93,746
WIN-K1IRTERJUTK.003 95,869
WIN-K1IRTERJUTK.004 94,295
WIN-K1IRTERJUTK.005 94,174
WIN-K1IRTERJUTK.006 95,115
WIN-K1IRTERJUTK.007 95,409
WIN-K1IRTERJUTK.008 94,904
WIN-K1IRTERJUTK.009 94,893
WIN-K1IRTERJUTK.010 95,642
WIN-K1IRTERJUTK.011 93,684
WIN-K1IRTERJUTK.012 94,560
WIN-K1IRTERJUTK.013 94,793
WIN-K1IRTERJUTK.014 94,418
WIN-K1IRTERJUTK.015 95,445
WIN-K1IRTERJUTK.016 94,452
ssj_ops@100% 1,516,025
ssj_ops@100% per JVM 94,752

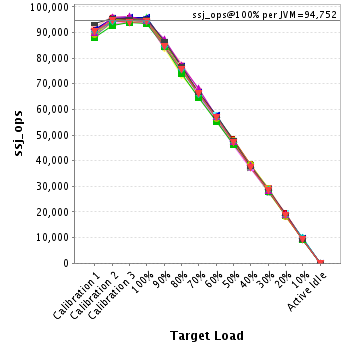

Graph of per-instance results

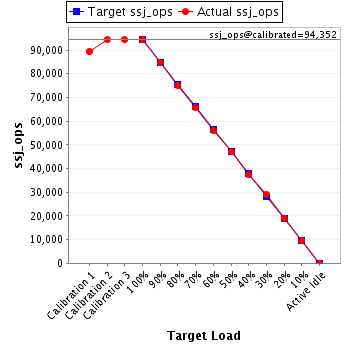

JVM 'WIN-K1IRTERJUTK.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,305
Calibration 2     94,401
Calibration 3     94,303
ssj_ops@calibrated=94,352
100% 100.3% 94,352 94,627
90% 89.8% 84,917 84,708
80% 79.7% 75,482 75,171
70% 69.8% 66,046 65,848
60% 59.4% 56,611 56,021
50% 49.9% 47,176 47,045
40% 39.7% 37,741 37,485
30% 30.7% 28,306 28,966
20% 19.9% 18,870 18,816
10% 10.0% 9,435 9,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

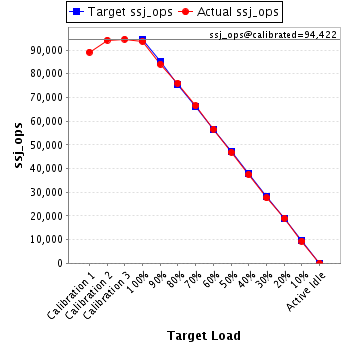

JVM 'WIN-K1IRTERJUTK.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,148
Calibration 2     94,225
Calibration 3     94,620
ssj_ops@calibrated=94,422
100% 99.3% 94,422 93,746
90% 89.0% 84,980 84,075
80% 80.5% 75,538 76,025
70% 70.4% 66,096 66,514
60% 60.0% 56,653 56,630
50% 49.6% 47,211 46,858
40% 39.7% 37,769 37,484
30% 29.3% 28,327 27,621
20% 20.1% 18,884 18,991
10% 9.9% 9,442 9,328
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

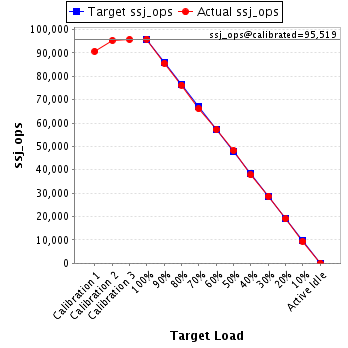

JVM 'WIN-K1IRTERJUTK.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,632
Calibration 2     95,300
Calibration 3     95,737
ssj_ops@calibrated=95,519
100% 100.4% 95,519 95,869
90% 89.5% 85,967 85,527
80% 79.8% 76,415 76,247
70% 69.2% 66,863 66,090
60% 59.9% 57,311 57,246
50% 50.5% 47,759 48,259
40% 39.5% 38,208 37,767
30% 30.0% 28,656 28,672
20% 19.9% 19,104 19,015
10% 9.8% 9,552 9,347
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,398
Calibration 2     92,777
Calibration 3     94,238
ssj_ops@calibrated=93,507
100% 100.8% 93,507 94,295
90% 89.5% 84,157 83,704
80% 78.4% 74,806 73,342
70% 69.8% 65,455 65,274
60% 59.2% 56,104 55,354
50% 49.8% 46,754 46,595
40% 40.1% 37,403 37,477
30% 29.7% 28,052 27,788
20% 19.9% 18,701 18,625
10% 9.8% 9,351 9,206
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

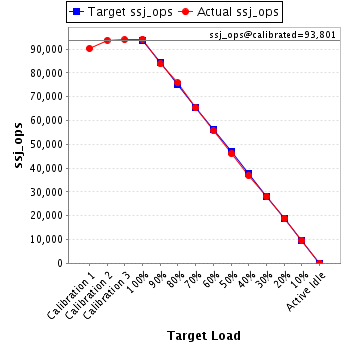

JVM 'WIN-K1IRTERJUTK.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,231
Calibration 2     93,671
Calibration 3     93,932
ssj_ops@calibrated=93,801
100% 100.4% 93,801 94,174
90% 89.3% 84,421 83,785
80% 80.8% 75,041 75,819
70% 69.6% 65,661 65,306
60% 59.3% 56,281 55,638
50% 49.1% 46,901 46,018
40% 39.3% 37,520 36,866
30% 30.0% 28,140 28,100
20% 20.1% 18,760 18,863
10% 10.1% 9,380 9,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,471
Calibration 2     94,515
Calibration 3     94,880
ssj_ops@calibrated=94,697
100% 100.4% 94,697 95,115
90% 89.3% 85,227 84,539
80% 80.1% 75,758 75,836
70% 70.4% 66,288 66,676
60% 60.8% 56,818 57,595
50% 50.1% 47,349 47,482
40% 39.9% 37,879 37,805
30% 29.4% 28,409 27,824
20% 20.3% 18,939 19,214
10% 9.7% 9,470 9,146
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,084
Calibration 2     96,285
Calibration 3     95,940
ssj_ops@calibrated=96,112
100% 99.3% 96,112 95,409
90% 90.0% 86,501 86,506
80% 81.0% 76,890 77,862
70% 70.6% 67,279 67,880
60% 59.3% 57,667 56,966
50% 49.5% 48,056 47,609
40% 39.9% 38,445 38,314
30% 30.4% 28,834 29,195
20% 20.3% 19,222 19,474
10% 10.2% 9,611 9,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,602
Calibration 2     94,446
Calibration 3     94,746
ssj_ops@calibrated=94,596
100% 100.3% 94,596 94,904
90% 89.6% 85,136 84,764
80% 79.5% 75,677 75,238
70% 69.9% 66,217 66,107
60% 60.2% 56,757 56,913
50% 49.8% 47,298 47,132
40% 39.5% 37,838 37,406
30% 29.9% 28,379 28,322
20% 20.5% 18,919 19,364
10% 10.1% 9,460 9,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,890
Calibration 2     95,313
Calibration 3     95,622
ssj_ops@calibrated=95,467
100% 99.4% 95,467 94,893
90% 89.8% 85,921 85,746
80% 80.5% 76,374 76,842
70% 69.8% 66,827 66,671
60% 59.5% 57,280 56,845
50% 50.4% 47,734 48,078
40% 40.5% 38,187 38,640
30% 29.4% 28,640 28,054
20% 20.3% 19,093 19,332
10% 10.0% 9,547 9,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,197
Calibration 2     95,319
Calibration 3     95,656
ssj_ops@calibrated=95,487
100% 100.2% 95,487 95,642
90% 90.2% 85,939 86,133
80% 80.4% 76,390 76,817
70% 69.6% 66,841 66,479
60% 60.4% 57,292 57,667
50% 49.5% 47,744 47,298
40% 40.1% 38,195 38,253
30% 30.1% 28,646 28,738
20% 19.4% 19,097 18,558
10% 10.1% 9,549 9,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,206
Calibration 2     92,910
Calibration 3     93,991
ssj_ops@calibrated=93,451
100% 100.2% 93,451 93,684
90% 90.3% 84,106 84,342
80% 79.1% 74,761 73,914
70% 69.3% 65,415 64,758
60% 59.1% 56,070 55,216
50% 49.6% 46,725 46,328
40% 40.7% 37,380 38,011
30% 30.0% 28,035 28,067
20% 19.9% 18,690 18,602
10% 10.1% 9,345 9,424
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

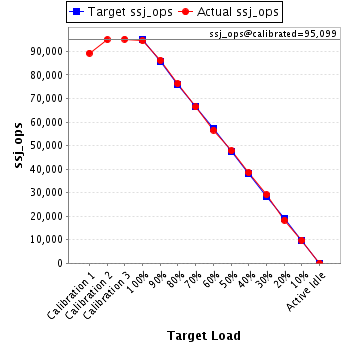

JVM 'WIN-K1IRTERJUTK.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,282
Calibration 2     95,003
Calibration 3     95,195
ssj_ops@calibrated=95,099
100% 99.4% 95,099 94,560
90% 90.7% 85,589 86,235
80% 80.3% 76,079 76,332
70% 69.8% 66,569 66,400
60% 59.5% 57,060 56,597
50% 50.2% 47,550 47,772
40% 40.5% 38,040 38,509
30% 30.6% 28,530 29,107
20% 19.3% 19,020 18,349
10% 10.2% 9,510 9,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

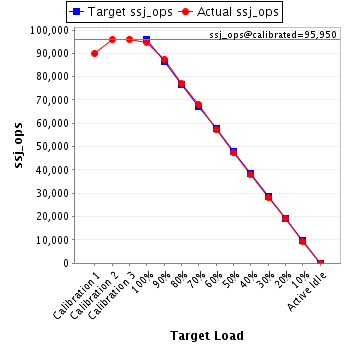

JVM 'WIN-K1IRTERJUTK.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,941
Calibration 2     95,821
Calibration 3     96,079
ssj_ops@calibrated=95,950
100% 98.8% 95,950 94,793
90% 91.1% 86,355 87,370
80% 80.2% 76,760 76,985
70% 70.8% 67,165 67,964
60% 59.6% 57,570 57,168
50% 49.4% 47,975 47,363
40% 39.7% 38,380 38,045
30% 29.5% 28,785 28,315
20% 19.9% 19,190 19,054
10% 9.9% 9,595 9,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,348
Calibration 2     94,422
Calibration 3     94,775
ssj_ops@calibrated=94,598
100% 99.8% 94,598 94,418
90% 89.5% 85,138 84,703
80% 79.8% 75,679 75,534
70% 69.6% 66,219 65,820
60% 60.1% 56,759 56,886
50% 50.2% 47,299 47,517
40% 39.5% 37,839 37,321
30% 30.5% 28,379 28,833
20% 19.8% 18,920 18,734
10% 10.7% 9,460 10,090
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,330
Calibration 2     95,547
Calibration 3     95,171
ssj_ops@calibrated=95,359
100% 100.1% 95,359 95,445
90% 90.7% 85,823 86,530
80% 80.5% 76,287 76,763
70% 69.7% 66,751 66,502
60% 60.3% 57,215 57,458
50% 50.3% 47,679 47,939
40% 39.4% 38,143 37,561
30% 30.3% 28,608 28,871
20% 20.0% 19,072 19,049
10% 9.7% 9,536 9,205
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K1IRTERJUTK.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,212
Calibration 2     94,588
Calibration 3     93,977
ssj_ops@calibrated=94,283
100% 100.2% 94,283 94,452
90% 89.6% 84,854 84,459
80% 80.3% 75,426 75,742
70% 70.0% 65,998 66,028
60% 60.1% 56,570 56,691
50% 50.0% 47,141 47,161
40% 39.5% 37,713 37,218
30% 30.2% 28,285 28,517
20% 19.9% 18,857 18,773
10% 9.9% 9,428 9,377
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
