Fujitsu PRIMERGY TX300 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,032 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jun 12, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Jun 27, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 1,309,437 240 5,446
90% 89.7% 1,175,162 210 5,595
80% 79.5% 1,041,684 178 5,860
70% 69.7% 912,920 150 6,100
60% 59.9% 784,649 129 6,067
50% 50.2% 657,538 115 5,741
40% 40.0% 523,788 103 5,070
30% 30.1% 394,634 93.5 4,219
20% 20.0% 262,141 84.0 3,122
10% 10.0% 130,576 74.1 1,762
Active Idle 0 52.6 0
∑ssj_ops / ∑power = 5,032

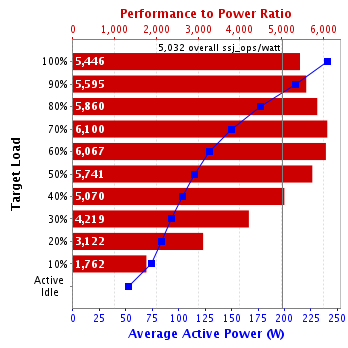

Graph of results
System Under Test
Set: 'RX350 S7'
Set Identifier: RX350 S7
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX300 S7 (Intel Xeon E5-2660)
Form Factor: Tower
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1E, 1F, 1G populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Fujitsu Technology Solutions S26113-E575-E10
Disk Drive: 1 x 32GB, SSD, 2.5" SATA, S26361-F3298-E320
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /node [0,1] /affinity [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.9.2
Management Firmware Version: 6.52A
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 950
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11111753
Date of Calibration: 14-Nov-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 240 20.1
90% 210 20.2
80% 178 20.3
70% 150 20.6
60% 129 20.8
50% 115 20.9
40% 103 21.1
30% 93.5 21.2
20% 84.0 21.4
10% 74.1 21.6
Active Idle 52.6 21.6
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 20.1 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,302,014
Calibration 2     1,310,112
Calibration 3     1,310,355
ssj_ops@calibrated=1,310,234
100% 99.9% 1,310,234 1,309,437
90% 89.7% 1,179,210 1,175,162
80% 79.5% 1,048,187 1,041,684
70% 69.7% 917,164 912,920
60% 59.9% 786,140 784,649
50% 50.2% 655,117 657,538
40% 40.0% 524,094 523,788
30% 30.1% 393,070 394,634
20% 20.0% 262,047 262,141
10% 10.0% 131,023 130,576
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
