SPECpower_ssj2008 Host 'WIN-K1IRTERJUTK' Performance Report

SPECpower_ssj2008

Host 'WIN-K1IRTERJUTK' Performance Report

Fujitsu PRIMERGY TX300 S7 (Intel Xeon E5-2660)			ssj_ops@100% = 1,309,437 ssj_ops@100% per JVM = 81,840
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Paderborn, NRW, Germany	Test Date:	Jun 12, 2012
Hardware Availability:	Jun-2012	Software Availability:	Dec-2011	Publication:	Jun 27, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,302,014
Calibration 2			1,310,112
Calibration 3			1,310,355
ssj_ops@calibrated=1,310,234
100%	99.9%	1,310,234	1,309,437
90%	89.7%	1,179,210	1,175,162
80%	79.5%	1,048,187	1,041,684
70%	69.7%	917,164	912,920
60%	59.9%	786,140	784,649
50%	50.2%	655,117	657,538
40%	40.0%	524,094	523,788
30%	30.1%	393,070	394,634
20%	20.0%	262,047	262,141
10%	10.0%	131,023	130,576
Active Idle		0	0

System Under Test

Set: 'RX350 S7'

Set Identifier:	RX350 S7
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY TX300 S7 (Intel Xeon E5-2660)
Form Factor:	Tower
CPU Name:	Intel Xeon E5-2660
CPU Characteristics:	8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz):	2200
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1, 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	24
# and size of DIMM:	6 x 4096 MB
Memory Details:	4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1E, 1F, 1G populated
Power Supply Quantity and Rating (W):	1 x 450
Power Supply Details:	Fujitsu Technology Solutions S26113-E575-E10
Disk Drive:	1 x 32GB, SSD, 2.5" SATA, S26361-F3298-E320
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version:	Version 6.1.7601 Service Pack 1 Build 7601
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /node [0,1] /affinity [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances:	16
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	R1.9.2
Management Firmware Version:	6.52A
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set "Adjacent Sector Prefetch = Disable" in BIOS.
Set "Hardware Prefetch = Disable" in BIOS.
Set "DCU Streamer Prefetch = Disable" in BIOS.
Set "DDR Performance = Low-Voltage optimized" in BIOS. (effective memory frequency = 1066 MHz)
Set "USB Port Control = Enable internal ports only" in BIOS.
Set "QPI Link Speed = 6.4GT/s" in BIOS.
Set "P-State coordination = SW_ANY" in BIOS.
Set "Intel Virtualization Technology = Disable" in BIOS.
Set "SAS/SATA OpROM = LSI MegaRAID" in BIOS.
Set "ASPM Support = Auto" in BIOS.
Set "LAN Port 2 = Disable" in BIOS.

Management Firmware Settings

None

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

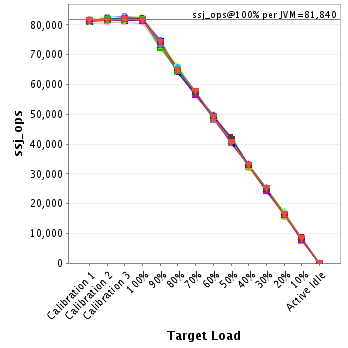

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-K1IRTERJUTK.001	81,934
WIN-K1IRTERJUTK.002	82,446
WIN-K1IRTERJUTK.003	82,299
WIN-K1IRTERJUTK.004	82,877
WIN-K1IRTERJUTK.005	81,677
WIN-K1IRTERJUTK.006	81,494
WIN-K1IRTERJUTK.007	80,618
WIN-K1IRTERJUTK.008	81,663
WIN-K1IRTERJUTK.009	82,245
WIN-K1IRTERJUTK.010	81,605
WIN-K1IRTERJUTK.011	81,880
WIN-K1IRTERJUTK.012	81,656
WIN-K1IRTERJUTK.013	81,618
WIN-K1IRTERJUTK.014	81,868
WIN-K1IRTERJUTK.015	82,106
WIN-K1IRTERJUTK.016	81,452
ssj_ops@100%	1,309,437
ssj_ops@100% per JVM	81,840

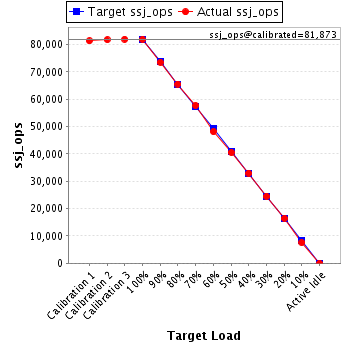

JVM 'WIN-K1IRTERJUTK.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,317
Calibration 2			81,768
Calibration 3			81,979
ssj_ops@calibrated=81,873
100%	100.1%	81,873	81,934
90%	89.8%	73,686	73,537
80%	80.1%	65,499	65,574
70%	70.5%	57,311	57,726
60%	58.8%	49,124	48,113
50%	49.5%	40,937	40,499
40%	40.3%	32,749	32,970
30%	30.0%	24,562	24,555
20%	20.1%	16,375	16,487
10%	9.3%	8,187	7,575
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

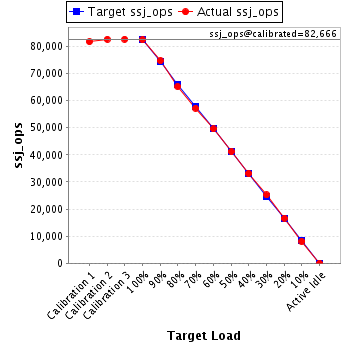

JVM 'WIN-K1IRTERJUTK.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,747
Calibration 2			82,645
Calibration 3			82,687
ssj_ops@calibrated=82,666
100%	99.7%	82,666	82,446
90%	90.4%	74,400	74,732
80%	78.9%	66,133	65,209
70%	69.3%	57,866	57,249
60%	59.9%	49,600	49,547
50%	49.8%	41,333	41,180
40%	40.1%	33,067	33,138
30%	30.5%	24,800	25,192
20%	20.1%	16,533	16,648
10%	9.8%	8,267	8,091
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,556
Calibration 2			82,441
Calibration 3			82,560
ssj_ops@calibrated=82,500
100%	99.8%	82,500	82,299
90%	89.0%	74,250	73,447
80%	79.9%	66,000	65,919
70%	69.4%	57,750	57,267
60%	60.2%	49,500	49,662
50%	49.4%	41,250	40,732
40%	39.2%	33,000	32,365
30%	30.1%	24,750	24,824
20%	21.0%	16,500	17,300
10%	9.9%	8,250	8,204
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

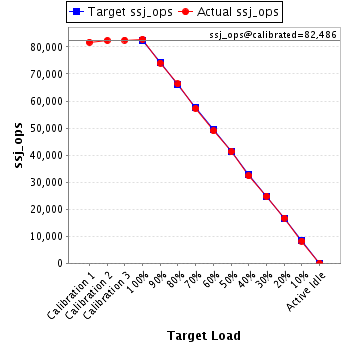

JVM 'WIN-K1IRTERJUTK.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,788
Calibration 2			82,404
Calibration 3			82,567
ssj_ops@calibrated=82,486
100%	100.5%	82,486	82,877
90%	89.8%	74,237	74,058
80%	80.4%	65,988	66,303
70%	69.4%	57,740	57,270
60%	59.3%	49,491	48,946
50%	50.1%	41,243	41,294
40%	39.2%	32,994	32,330
30%	30.1%	24,746	24,818
20%	20.3%	16,497	16,731
10%	10.0%	8,249	8,218
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,504
Calibration 2			82,002
Calibration 3			81,707
ssj_ops@calibrated=81,854
100%	99.8%	81,854	81,677
90%	89.9%	73,669	73,616
80%	79.1%	65,483	64,772
70%	68.5%	57,298	56,051
60%	60.8%	49,113	49,743
50%	50.0%	40,927	40,958
40%	40.1%	32,742	32,829
30%	29.6%	24,556	24,265
20%	19.6%	16,371	16,020
10%	9.8%	8,185	8,033
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,210
Calibration 2			81,893
Calibration 3			81,595
ssj_ops@calibrated=81,744
100%	99.7%	81,744	81,494
90%	88.4%	73,569	72,280
80%	80.4%	65,395	65,718
70%	69.8%	57,221	57,066
60%	60.3%	49,046	49,325
50%	49.8%	40,872	40,698
40%	40.1%	32,698	32,776
30%	29.6%	24,523	24,163
20%	20.0%	16,349	16,332
10%	10.3%	8,174	8,383
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

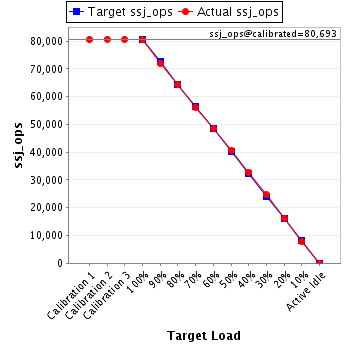

JVM 'WIN-K1IRTERJUTK.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			80,606
Calibration 2			80,720
Calibration 3			80,665
ssj_ops@calibrated=80,693
100%	99.9%	80,693	80,618
90%	89.1%	72,624	71,925
80%	79.6%	64,554	64,260
70%	69.7%	56,485	56,212
60%	60.2%	48,416	48,543
50%	50.3%	40,346	40,558
40%	40.6%	32,277	32,760
30%	30.5%	24,208	24,627
20%	20.1%	16,139	16,180
10%	9.7%	8,069	7,825
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,117
Calibration 2			81,531
Calibration 3			81,364
ssj_ops@calibrated=81,447
100%	100.3%	81,447	81,663
90%	89.7%	73,303	73,062
80%	79.0%	65,158	64,349
70%	69.8%	57,013	56,832
60%	59.5%	48,868	48,485
50%	50.1%	40,724	40,839
40%	40.3%	32,579	32,842
30%	30.5%	24,434	24,869
20%	20.1%	16,289	16,387
10%	9.8%	8,145	7,950
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,257
Calibration 2			82,080
Calibration 3			82,070
ssj_ops@calibrated=82,075
100%	100.2%	82,075	82,245
90%	89.6%	73,867	73,564
80%	78.5%	65,660	64,393
70%	69.8%	57,452	57,271
60%	59.8%	49,245	49,040
50%	51.4%	41,037	42,174
40%	39.8%	32,830	32,678
30%	30.6%	24,622	25,154
20%	20.1%	16,415	16,491
10%	10.6%	8,207	8,739
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

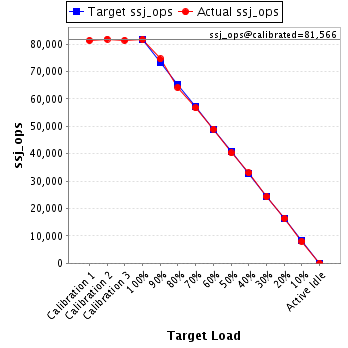

JVM 'WIN-K1IRTERJUTK.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,267
Calibration 2			81,770
Calibration 3			81,362
ssj_ops@calibrated=81,566
100%	100.0%	81,566	81,605
90%	91.4%	73,409	74,548
80%	78.6%	65,253	64,124
70%	69.5%	57,096	56,675
60%	60.0%	48,940	48,933
50%	49.4%	40,783	40,265
40%	40.4%	32,626	32,958
30%	29.7%	24,470	24,245
20%	20.0%	16,313	16,344
10%	9.8%	8,157	7,987
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,475
Calibration 2			81,771
Calibration 3			81,827
ssj_ops@calibrated=81,799
100%	100.1%	81,799	81,880
90%	88.6%	73,619	72,465
80%	79.0%	65,439	64,605
70%	69.7%	57,259	56,992
60%	60.3%	49,079	49,348
50%	50.2%	40,899	41,074
40%	39.5%	32,720	32,347
30%	29.7%	24,540	24,303
20%	19.8%	16,360	16,174
10%	10.3%	8,180	8,441
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

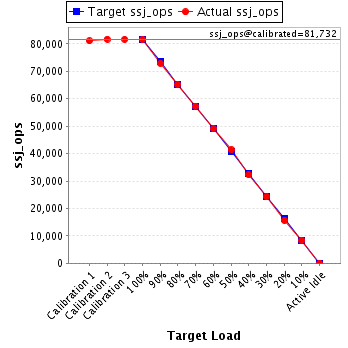

JVM 'WIN-K1IRTERJUTK.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,094
Calibration 2			81,745
Calibration 3			81,720
ssj_ops@calibrated=81,732
100%	99.9%	81,732	81,656
90%	89.3%	73,559	72,979
80%	79.9%	65,386	65,263
70%	70.1%	57,213	57,333
60%	59.9%	49,039	48,988
50%	50.7%	40,866	41,398
40%	39.4%	32,693	32,222
30%	29.7%	24,520	24,299
20%	19.1%	16,346	15,643
10%	10.3%	8,173	8,387
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

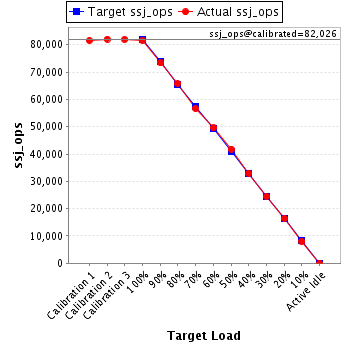

JVM 'WIN-K1IRTERJUTK.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,579
Calibration 2			82,053
Calibration 3			82,000
ssj_ops@calibrated=82,026
100%	99.5%	82,026	81,618
90%	89.4%	73,824	73,368
80%	80.2%	65,621	65,798
70%	69.0%	57,418	56,634
60%	60.4%	49,216	49,560
50%	51.0%	41,013	41,814
40%	40.2%	32,811	33,001
30%	29.9%	24,608	24,532
20%	20.0%	16,405	16,391
10%	9.8%	8,203	8,012
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,484
Calibration 2			82,052
Calibration 3			82,102
ssj_ops@calibrated=82,077
100%	99.7%	82,077	81,868
90%	89.3%	73,869	73,328
80%	80.1%	65,662	65,717
70%	70.2%	57,454	57,606
60%	59.2%	49,246	48,625
50%	50.8%	41,038	41,666
40%	40.2%	32,831	32,963
30%	30.8%	24,623	25,261
20%	19.9%	16,415	16,302
10%	10.2%	8,208	8,388
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,646
Calibration 2			81,785
Calibration 3			82,403
ssj_ops@calibrated=82,094
100%	100.0%	82,094	82,106
90%	90.1%	73,885	74,004
80%	79.4%	65,675	65,144
70%	69.5%	57,466	57,047
60%	59.7%	49,256	48,991
50%	51.2%	41,047	42,019
40%	39.9%	32,838	32,737
30%	29.9%	24,628	24,517
20%	20.1%	16,419	16,499
10%	9.8%	8,209	8,052
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			81,366
Calibration 2			81,452
Calibration 3			81,749
ssj_ops@calibrated=81,600
100%	99.8%	81,600	81,452
90%	91.0%	73,440	74,250
80%	79.1%	65,280	64,534
70%	70.7%	57,120	57,689
60%	59.8%	48,960	48,800
50%	49.5%	40,800	40,368
40%	40.3%	32,640	32,871
30%	30.6%	24,480	25,010
20%	19.9%	16,320	16,212
10%	10.2%	8,160	8,291
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
