Fujitsu PRIMERGY TX300 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,032 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jun 12, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Jun 27, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 237 20.2
Calibration 2 240 20.2
Calibration 3 240 20.2
100% 240 20.1
90% 210 20.2
80% 178 20.3
70% 150 20.6
60% 129 20.8
50% 115 20.9
40% 103 21.1
30% 93.5 21.2
20% 84.0 21.4
10% 74.1 21.6
Active Idle 52.6 21.6

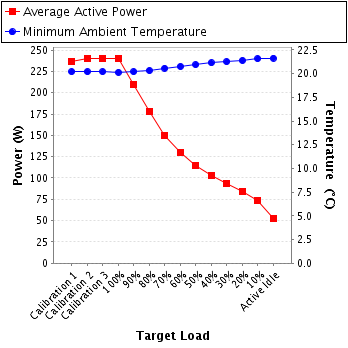

Graph of power and temperature
Measurement Devices
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11111753
Date of Calibration: 14-Nov-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 300.0 1.04 2.0 0.989 237 0.4%
Calibration 2 231 300.0 1.05 2.0 0.989 240 0.4%
Calibration 3 232 300.0 1.05 2.0 0.989 240 0.4%
100% 232 300.0 1.05 2.0 0.989 240 0.4%
90% 232 300.0 0.925 1.0 0.984 210 0.3%
80% 232 300.0 0.789 1.0 0.980 178 0.3%
70% 232 300.0 0.661 1.0 0.979 150 0.3%
60% 232 300.0 0.572 1.0 0.977 129 0.4%
50% 232 300.0 0.507 1.0 0.975 115 0.4%
40% 231 300.0 0.460 0.5 0.971 103 0.3%
30% 232 300.0 0.418 0.5 0.966 93.5 0.3%
20% 232 300.0 0.378 0.5 0.960 84.0 0.3%
10% 232 300.0 0.336 0.5 0.952 74.1 0.4%
Active Idle 232 300.0 0.247 0.5 0.915 52.6 0.5%

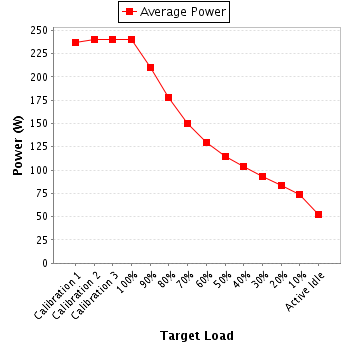

Power details for pwr2
