SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Supermicro SYS-6027R-72RF | SPECpower_ssj2008 = 2,956 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | San Jose, CA, USA | Test Date: | May 24, 2012 |
| Hardware Availability: | Apr-2012 | Software Availability: | Jan-2012 | Publication: | Jun 28, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

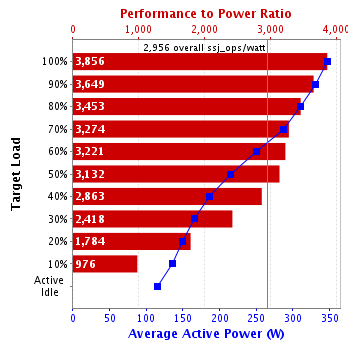

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.0% | 1,337,393 | 347 | 3,856 |
| 90% | 90.1% | 1,205,700 | 330 | 3,649 |
| 80% | 80.1% | 1,071,111 | 310 | 3,453 |
| 70% | 70.1% | 937,736 | 286 | 3,274 |
| 60% | 60.2% | 804,936 | 250 | 3,221 |
| 50% | 50.3% | 673,083 | 215 | 3,132 |
| 40% | 39.8% | 533,038 | 186 | 2,863 |
| 30% | 29.9% | 400,528 | 166 | 2,418 |
| 20% | 19.9% | 266,281 | 149 | 1,784 |
| 10% | 9.9% | 133,109 | 136 | 976 |
| Active Idle | 0 | 115 | 0 | |
| ∑ssj_ops / ∑power = | 2,956 | |||
| Set Identifier: | 6027R |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro |
| Model: | SYS-6027R-72RF |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2665 |
| CPU Characteristics: | 8-Core, 2.40GHz, 20MB L3 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 128 |
| # and size of DIMM: | 8 x 16384 MB |
| Memory Details: | 16GB 2Rx4 PC3-12800R ECC; A1, B1, C1, D1, E1, F1, G1, H1 Populated. |
| Power Supply Quantity and Rating (W): | 2 x 740 |
| Power Supply Details: | PWS-741P-1R |
| Disk Drive: | RAID0: 2 x FUJITSU 146 GB SASII 15KRPM (MBE2147RC) |
| Disk Controller: | Onboard LSI 2208 SAS Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Dual-Port 1Gbit Network Controller. |
| NICs Enabled in Firmware / OS / Connected: | 1/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver |
| Operating System (OS): | Microsoft Windows Server Enterprise 2008 R2 SP1 |
| OS Version: | 6.1.7601 Build 7601 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_26-b03) |
| JVM Command-line Options: | -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy |
| JVM Affinity: | start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 2048 |
| JVM Maximum Heap (MB): | 2048 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 4/20/2012 Ver1.00 |
| Management Firmware Version: | 1.48 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro |
| Model: | SYS-1026T-6RFT+ |
| CPU Description: | Intel Xeon L5630 |
| Memory amount (GB): | 16.0 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2008 R2 Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.7.0_02-b13) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT210 |
| Serial Number: | 91J523226 |
| Connectivity: | COM1 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SE Laboratories |
| Calibration Label: | C56-0089 |
| Date of Calibration: | 07-Jan-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 347 | 26.2 |
| 90% | 330 | 25.9 |
| 80% | 310 | 25.1 |
| 70% | 286 | 24.6 |
| 60% | 250 | 24.2 |
| 50% | 215 | 24.0 |
| 40% | 186 | 24.5 |
| 30% | 166 | 26.1 |
| 20% | 149 | 26.0 |
| 10% | 136 | 25.6 |
| Active Idle | 115 | 25.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 24.0 | 26 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,330,665 | ||
| Calibration 2 | 1,337,775 | ||
| Calibration 3 | 1,338,151 | ||
| ssj_ops@calibrated=1,337,963 | |||
| 100% | 100.0% | 1,337,963 | 1,337,393 |
| 90% | 90.1% | 1,204,167 | 1,205,700 |
| 80% | 80.1% | 1,070,371 | 1,071,111 |
| 70% | 70.1% | 936,574 | 937,736 |
| 60% | 60.2% | 802,778 | 804,936 |
| 50% | 50.3% | 668,982 | 673,083 |
| 40% | 39.8% | 535,185 | 533,038 |
| 30% | 29.9% | 401,389 | 400,528 |
| 20% | 19.9% | 267,593 | 266,281 |
| 10% | 9.9% | 133,796 | 133,109 |
| Active Idle | 0 | 0 | |
