SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Supermicro SYS-6027R-72RF | SPECpower_ssj2008 = 2,956 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | San Jose, CA, USA | Test Date: | May 24, 2012 |
| Hardware Availability: | Apr-2012 | Software Availability: | Jan-2012 | Publication: | Jun 28, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

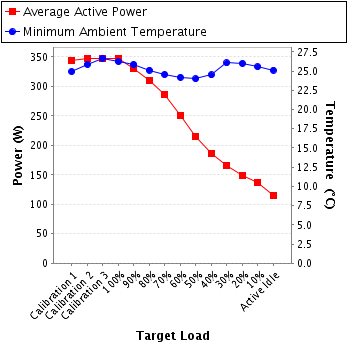

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 343 | 24.9 |
| Calibration 2 | 348 | 25.9 |
| Calibration 3 | 348 | 26.7 |
| 100% | 347 | 26.2 |
| 90% | 330 | 25.9 |
| 80% | 310 | 25.1 |
| 70% | 286 | 24.6 |
| 60% | 250 | 24.2 |
| 50% | 215 | 24.0 |
| 40% | 186 | 24.5 |
| 30% | 166 | 26.1 |
| 20% | 149 | 26.0 |
| 10% | 136 | 25.6 |
| Active Idle | 115 | 25.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT210 |
| Serial Number: | 91J523226 |
| Connectivity: | COM1 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SE Laboratories |
| Calibration Label: | C56-0089 |
| Date of Calibration: | 07-Jan-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

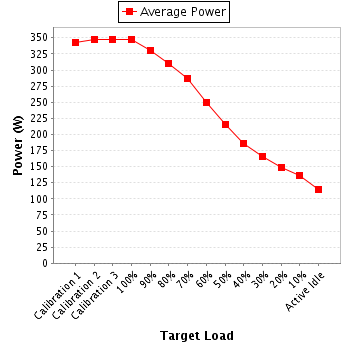

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.74 | 2.0 | 0.948 | 343 | 0.3% |
| Calibration 2 | 208 | 300.0 | 1.76 | 2.0 | 0.950 | 348 | 0.3% |
| Calibration 3 | 208 | 300.0 | 1.76 | 2.0 | 0.950 | 348 | 0.3% |
| 100% | 207 | 300.0 | 1.76 | 2.0 | 0.950 | 347 | 0.3% |
| 90% | 207 | 300.0 | 1.69 | 2.0 | 0.946 | 330 | 0.4% |
| 80% | 207 | 300.0 | 1.59 | 2.0 | 0.940 | 310 | 0.4% |
| 70% | 207 | 300.0 | 1.50 | 2.0 | 0.924 | 286 | 0.4% |
| 60% | 207 | 300.0 | 1.32 | 2.0 | 0.914 | 250 | 0.4% |
| 50% | 207 | 300.0 | 1.16 | 2.0 | 0.892 | 215 | 0.5% |
| 40% | 208 | 300.0 | 1.03 | 1.0 | 0.867 | 186 | 0.4% |
| 30% | 207 | 300.0 | 0.946 | 1.0 | 0.846 | 166 | 0.4% |
| 20% | 207 | 300.0 | 0.876 | 1.0 | 0.824 | 149 | 0.4% |
| 10% | 207 | 300.0 | 0.821 | 1.0 | 0.801 | 136 | 0.5% |
| Active Idle | 207 | 300.0 | 0.736 | 1.0 | 0.755 | 115 | 0.5% |
