Supermicro SYS-6027R-72RF ssj_ops@100% = 1,337,393
ssj_ops@100% per JVM = 167,174
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: May 24, 2012
Hardware Availability: Apr-2012 Software Availability: Jan-2012 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,330,665
Calibration 2     1,337,775
Calibration 3     1,338,151
ssj_ops@calibrated=1,337,963
100% 100.0% 1,337,963 1,337,393
90% 90.1% 1,204,167 1,205,700
80% 80.1% 1,070,371 1,071,111
70% 70.1% 936,574 937,736
60% 60.2% 802,778 804,936
50% 50.3% 668,982 673,083
40% 39.8% 535,185 533,038
30% 29.9% 401,389 400,528
20% 19.9% 267,593 266,281
10% 9.9% 133,796 133,109
Active Idle   0 0
Graph of results
System Under Test
Set: '6027R'
Set Identifier: 6027R
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SYS-6027R-72RF
Form Factor: 2U
CPU Name: Intel Xeon E5-2665
CPU Characteristics: 8-Core, 2.40GHz, 20MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx4 PC3-12800R ECC; A1, B1, C1, D1, E1, F1, G1, H1 Populated.
Power Supply Quantity and Rating (W): 2 x 740
Power Supply Details: PWS-741P-1R
Disk Drive: RAID0: 2 x FUJITSU 146 GB SASII 15KRPM (MBE2147RC)
Disk Controller: Onboard LSI 2208 SAS Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Dual-Port 1Gbit Network Controller.
NICs Enabled in Firmware / OS / Connected: 1/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power Saver
Operating System (OS): Microsoft Windows Server Enterprise 2008 R2 SP1
OS Version: 6.1.7601 Build 7601 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_26-b03)
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 4/20/2012 Ver1.00
Management Firmware Version: 1.48
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SV4I3SC3TQD.001 166,708
WIN-SV4I3SC3TQD.002 169,973
WIN-SV4I3SC3TQD.003 166,868
WIN-SV4I3SC3TQD.004 165,789
WIN-SV4I3SC3TQD.005 167,574
WIN-SV4I3SC3TQD.006 167,014
WIN-SV4I3SC3TQD.007 166,978
WIN-SV4I3SC3TQD.008 166,489
ssj_ops@100% 1,337,393
ssj_ops@100% per JVM 167,174

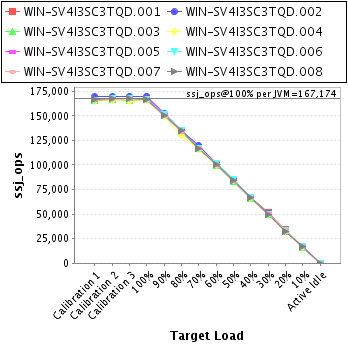

Graph of per-instance results
JVM 'WIN-SV4I3SC3TQD.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,379
Calibration 2     166,696
Calibration 3     167,639
ssj_ops@calibrated=167,167
100% 99.7% 167,167 166,708
90% 90.2% 150,451 150,830
80% 80.4% 133,734 134,456
70% 70.1% 117,017 117,213
60% 60.3% 100,300 100,783
50% 49.7% 83,584 83,162
40% 40.1% 66,867 66,964
30% 30.6% 50,150 51,149
20% 20.2% 33,433 33,842
10% 10.0% 16,717 16,710
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,370
Calibration 2     169,434
Calibration 3     169,723
ssj_ops@calibrated=169,578
100% 100.2% 169,578 169,973
90% 89.9% 152,620 152,400
80% 79.8% 135,663 135,402
70% 70.4% 118,705 119,423
60% 60.0% 101,747 101,792
50% 50.3% 84,789 85,263
40% 39.8% 67,831 67,418
30% 29.7% 50,873 50,345
20% 19.4% 33,916 32,824
10% 10.1% 16,958 17,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,604
Calibration 2     166,526
Calibration 3     165,967
ssj_ops@calibrated=166,247
100% 100.4% 166,247 166,868
90% 90.4% 149,622 150,304
80% 80.7% 132,997 134,093
70% 70.1% 116,373 116,500
60% 59.9% 99,748 99,623
50% 50.3% 83,123 83,692
40% 39.8% 66,499 66,128
30% 30.1% 49,874 49,998
20% 20.1% 33,249 33,476
10% 9.9% 16,625 16,425
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,673
Calibration 2     165,722
Calibration 3     164,887
ssj_ops@calibrated=165,304
100% 100.3% 165,304 165,789
90% 90.1% 148,774 148,889
80% 78.7% 132,243 130,042
70% 69.9% 115,713 115,590
60% 60.5% 99,183 99,951
50% 50.7% 82,652 83,878
40% 40.0% 66,122 66,194
30% 29.8% 49,591 49,323
20% 19.8% 33,061 32,751
10% 9.9% 16,530 16,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,289
Calibration 2     167,723
Calibration 3     167,256
ssj_ops@calibrated=167,489
100% 100.1% 167,489 167,574
90% 90.7% 150,740 151,889
80% 79.9% 133,992 133,873
70% 70.2% 117,243 117,625
60% 59.7% 100,494 100,008
50% 50.2% 83,745 84,139
40% 39.7% 66,996 66,536
30% 29.8% 50,247 49,909
20% 20.1% 33,498 33,587
10% 9.7% 16,749 16,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,038
Calibration 2     167,381
Calibration 3     167,685
ssj_ops@calibrated=167,533
100% 99.7% 167,533 167,014
90% 90.2% 150,780 151,068
80% 80.4% 134,027 134,690
70% 69.9% 117,273 117,167
60% 60.4% 100,520 101,237
50% 50.6% 83,767 84,774
40% 39.8% 67,013 66,742
30% 29.8% 50,260 49,843
20% 20.1% 33,507 33,632
10% 10.0% 16,753 16,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

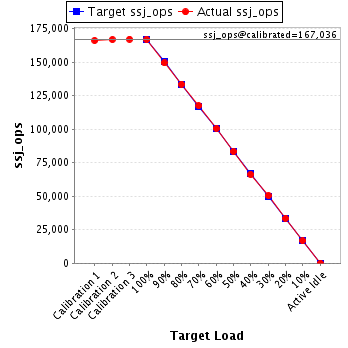

JVM 'WIN-SV4I3SC3TQD.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,200
Calibration 2     166,844
Calibration 3     167,227
ssj_ops@calibrated=167,036
100% 100.0% 167,036 166,978
90% 89.5% 150,332 149,552
80% 80.1% 133,628 133,724
70% 70.4% 116,925 117,575
60% 60.3% 100,221 100,667
50% 50.0% 83,518 83,502
40% 39.7% 66,814 66,278
30% 30.2% 50,111 50,441
20% 20.1% 33,407 33,597
10% 10.0% 16,704 16,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

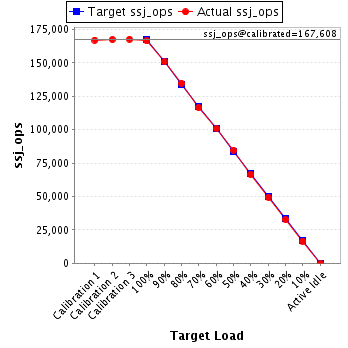

JVM 'WIN-SV4I3SC3TQD.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,111
Calibration 2     167,450
Calibration 3     167,766
ssj_ops@calibrated=167,608
100% 99.3% 167,608 166,489
90% 90.0% 150,848 150,769
80% 80.4% 134,087 134,831
70% 69.6% 117,326 116,643
60% 60.2% 100,565 100,874
50% 50.5% 83,804 84,674
40% 39.8% 67,043 66,778
30% 29.5% 50,283 49,520
20% 19.4% 33,522 32,570
10% 9.9% 16,761 16,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
