Hewlett-Packard Company ProLiant SL2x170z G6 SPECpower_ssj2008 = 2,357 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: May 3, 2010
Hardware Availability: Jun-2010 Software Availability: Jul-2009 Publication: Jun 2, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 2,097,467 656 3,196
90% 90.1% 1,896,501 616 3,079
80% 80.0% 1,683,760 572 2,943
70% 70.0% 1,473,670 530 2,779
60% 60.1% 1,265,151 489 2,585
50% 49.9% 1,051,829 449 2,340
40% 40.1% 844,393 413 2,047
30% 30.0% 632,408 377 1,677
20% 20.0% 421,467 341 1,236
10% 10.0% 209,861 288 728
Active Idle 0 179 0
∑ssj_ops / ∑power = 2,357

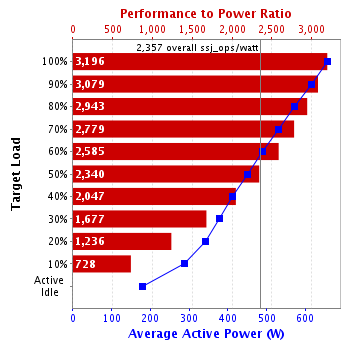

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 32 64 32.0 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant SL6000
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: HP part #: 570451-101
Network Switch: HP Procurve 6108
Network Switch Details: 8-Port Gigabit switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant SL2x170z G6
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL2x170z G6
Form Factor: 2U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40 GHz, 8 MB L3 cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #:586585-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 2 x HP NC362i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver plan in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: O34 8/25/09
Management Firmware Version: 4.04 7/1/09
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: NIC driver, HP component cp010296.exe. Driver version: 10.3.49.400
Boot Firmware Settings
See SUT notes
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 1
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB47167
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705436
Date of Calibration: 21-Jan-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supplies
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 656 22.1
90% 616 22.1
80% 572 22.2
70% 530 22.1
60% 489 22.1
50% 449 22.0
40% 413 22.3
30% 377 22.6
20% 341 22.5
10% 288 22.4
Active Idle 179 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.0 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,094,881
Calibration 2     2,106,083
Calibration 3     2,105,907
ssj_ops@calibrated=2,105,995
100% 99.6% 2,105,995 2,097,467
90% 90.1% 1,895,395 1,896,501
80% 80.0% 1,684,796 1,683,760
70% 70.0% 1,474,196 1,473,670
60% 60.1% 1,263,597 1,265,151
50% 49.9% 1,052,997 1,051,829
40% 40.1% 842,398 844,393
30% 30.0% 631,798 632,408
20% 20.0% 421,199 421,467
10% 10.0% 210,599 209,861
Active Idle   0 0
Graph of results
See the Aggregate Performance Report for additional details.
