Hewlett-Packard Company ProLiant SL2x170z G6 ssj_ops@100% = 2,097,467
ssj_ops@100% per Host = 524,367
ssj_ops@100% per JVM = 131,092
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: May 3, 2010
Hardware Availability: Jun-2010 Software Availability: Jul-2009 Publication: Jun 2, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,094,881
Calibration 2     2,106,083
Calibration 3     2,105,907
ssj_ops@calibrated=2,105,995
100% 99.6% 2,105,995 2,097,467
90% 90.1% 1,895,395 1,896,501
80% 80.0% 1,684,796 1,683,760
70% 70.0% 1,474,196 1,473,670
60% 60.1% 1,263,597 1,265,151
50% 49.9% 1,052,997 1,051,829
40% 40.1% 842,398 844,393
30% 30.0% 631,798 632,408
20% 20.0% 421,199 421,467
10% 10.0% 210,599 209,861
Active Idle   0 0

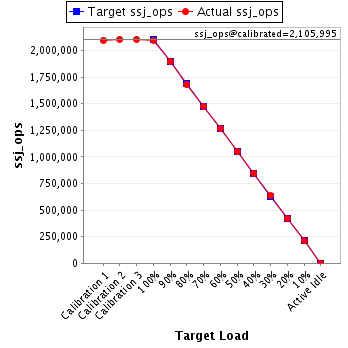

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 32 64 32.0 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant SL6000
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: HP part #: 570451-101
Network Switch: HP Procurve 6108
Network Switch Details: 8-Port Gigabit switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant SL2x170z G6
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL2x170z G6
Form Factor: 2U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40 GHz, 8 MB L3 cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #:586585-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 2 x HP NC362i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver plan in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: O34 8/25/09
Management Firmware Version: 4.04 7/1/09
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: NIC driver, HP component cp010296.exe. Driver version: 10.3.49.400
Boot Firmware Settings
See SUT notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
node1 527,096
sl2x170z-node2 520,618
sl2x170z-node3 527,321
sl2x170z-node4 522,432
ssj_ops@100% 2,097,467
ssj_ops@100% per Host 524,367
ssj_ops@100% per JVM 131,092

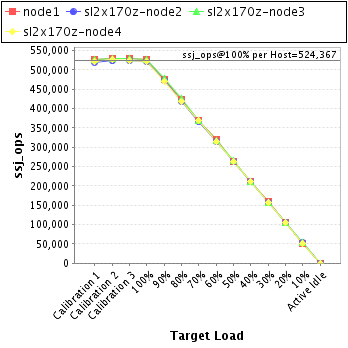

Graph of per-host results
Host 'node1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     526,275
Calibration 2     528,326
Calibration 3     528,192
ssj_ops@calibrated=528,259
100% 99.8% 528,259 527,096
90% 90.0% 475,433 475,358
80% 80.0% 422,607 422,563
70% 69.9% 369,781 368,996
60% 60.5% 316,955 319,525
50% 49.9% 264,130 263,500
40% 40.0% 211,304 211,368
30% 30.3% 158,478 160,284
20% 20.1% 105,652 106,136
10% 9.9% 52,826 52,290
Active Idle   0 0

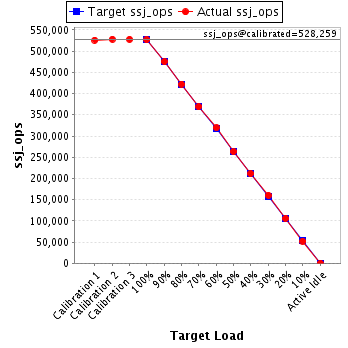

Graph of results
See the Host Performance Report for additional details.
Host 'sl2x170z-node2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     519,848
Calibration 2     522,961
Calibration 3     523,146
ssj_ops@calibrated=523,053
100% 99.5% 523,053 520,618
90% 90.5% 470,748 473,352
80% 79.8% 418,443 417,642
70% 69.9% 366,137 365,693
60% 60.1% 313,832 314,554
50% 50.1% 261,527 262,135
40% 40.2% 209,221 210,110
30% 30.0% 156,916 157,119
20% 20.3% 104,611 106,138
10% 10.0% 52,305 52,403
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'sl2x170z-node3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     526,999
Calibration 2     528,720
Calibration 3     530,090
ssj_ops@calibrated=529,405
100% 99.6% 529,405 527,321
90% 90.1% 476,465 476,848
80% 80.3% 423,524 424,921
70% 69.9% 370,584 370,196
60% 60.0% 317,643 317,386
50% 49.9% 264,703 264,367
40% 39.9% 211,762 211,429
30% 29.9% 158,822 158,074
20% 19.8% 105,881 104,744
10% 10.0% 52,941 53,117
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'sl2x170z-node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     521,759
Calibration 2     526,075
Calibration 3     524,479
ssj_ops@calibrated=525,277
100% 99.5% 525,277 522,432
90% 89.7% 472,749 470,943
80% 79.7% 420,222 418,633
70% 70.2% 367,694 368,784
60% 59.7% 315,166 313,686
50% 49.8% 262,639 261,828
40% 40.3% 210,111 211,486
30% 29.9% 157,583 156,930
20% 19.9% 105,055 104,449
10% 9.9% 52,528 52,052
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
