SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant SL2x170z G6 | SPECpower_ssj2008 = 2,357 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | May 3, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Jul-2009 | Publication: | Jun 2, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

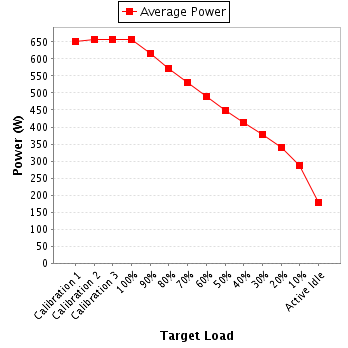

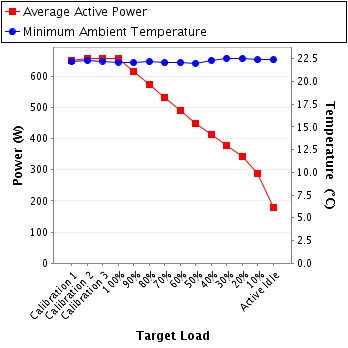

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 650 | 22.2 |
| Calibration 2 | 656 | 22.3 |
| Calibration 3 | 658 | 22.2 |
| 100% | 656 | 22.1 |
| 90% | 616 | 22.1 |
| 80% | 572 | 22.2 |
| 70% | 530 | 22.1 |
| 60% | 489 | 22.1 |
| 50% | 449 | 22.0 |
| 40% | 413 | 22.3 |
| 30% | 377 | 22.6 |
| 20% | 341 | 22.5 |
| 10% | 288 | 22.4 |
| Active Idle | 179 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB47167 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705436 |
| Date of Calibration: | 21-Jan-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supplies |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 212 | 300.0 | 3.10 | 5.0 | 0.990 | 650 | 0.4% |
| Calibration 2 | 212 | 300.0 | 3.13 | 5.0 | 0.990 | 656 | 0.4% |
| Calibration 3 | 211 | 300.0 | 3.15 | 5.0 | 0.991 | 658 | 0.4% |
| 100% | 211 | 300.0 | 3.14 | 5.0 | 0.991 | 656 | 0.4% |
| 90% | 212 | 300.0 | 2.94 | 5.0 | 0.989 | 616 | 0.4% |
| 80% | 212 | 300.0 | 2.74 | 5.0 | 0.988 | 572 | 0.4% |
| 70% | 212 | 300.0 | 2.54 | 5.0 | 0.986 | 530 | 0.4% |
| 60% | 211 | 300.0 | 2.36 | 5.0 | 0.984 | 489 | 0.4% |
| 50% | 211 | 300.0 | 2.17 | 5.0 | 0.982 | 449 | 0.5% |
| 40% | 211 | 300.0 | 2.00 | 5.0 | 0.980 | 413 | 0.5% |
| 30% | 212 | 300.0 | 1.82 | 5.0 | 0.979 | 377 | 0.5% |
| 20% | 210 | 300.0 | 1.66 | 5.0 | 0.977 | 341 | 0.6% |
| 10% | 210 | 300.0 | 1.42 | 5.0 | 0.965 | 288 | 0.7% |
| Active Idle | 210 | 300.0 | 0.897 | 2.0 | 0.947 | 179 | 0.5% |
