SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3400 M2 | SPECpower_ssj2008 = 1,865 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nankang, Taipei, Taiwan | Test Date: | Oct 20, 2009 |
| Hardware Availability: | Dec-2009 | Software Availability: | May-2009 | Publication: | Dec 2, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

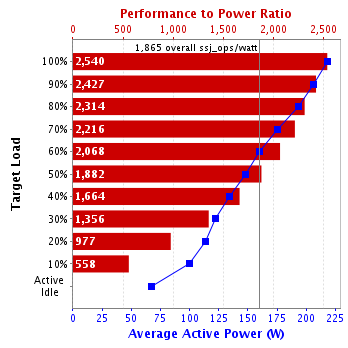

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.7% | 553,807 | 218 | 2,540 |
| 90% | 90.0% | 499,610 | 206 | 2,427 |
| 80% | 80.4% | 446,582 | 193 | 2,314 |
| 70% | 69.9% | 388,038 | 175 | 2,216 |
| 60% | 59.7% | 331,576 | 160 | 2,068 |
| 50% | 50.0% | 277,877 | 148 | 1,882 |
| 40% | 40.3% | 223,774 | 134 | 1,664 |
| 30% | 29.8% | 165,509 | 122 | 1,356 |
| 20% | 20.0% | 110,992 | 114 | 977 |
| 10% | 10.0% | 55,780 | 100.0 | 558 |
| Active Idle | 0 | 67.0 | 0 | |
| ∑ssj_ops / ∑power = | 1,865 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Here is a comment for this set. |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3400 M2 |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon E5540 |
| CPU Characteristics: | Quad-Core, 2.53GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2533 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | Samsung M391B5673EH1-CH9 DDR3-10600E; slots 3, 6, 11 and 14 populated |
| Power Supply Quantity and Rating (W): | 1 x 670 |
| Power Supply Details: | IBM P/N 39Y7392 |
| Disk Drive: | 1 x 160 GB 7.2K RPM SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Broadcom NetXtreme II Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver plan in OS |
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [000F,00F0,0F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1675 |
| JVM Maximum Heap (MB): | 1675 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 30V |
| Management Firmware Version: | 44A |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IntelliStation M Pro |
| CPU Description: | Intel Pentium 4 561 |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional Edition |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H245650 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-01 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 218 | 25.5 |
| 90% | 206 | 25.4 |
| 80% | 193 | 25.5 |
| 70% | 175 | 25.5 |
| 60% | 160 | 25.4 |
| 50% | 148 | 25.4 |
| 40% | 134 | 25.4 |
| 30% | 122 | 25.4 |
| 20% | 114 | 25.4 |
| 10% | 100.0 | 25.4 |
| Active Idle | 67.0 | 25.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 25.4 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 555,690 | ||
| Calibration 2 | 554,928 | ||
| Calibration 3 | 555,927 | ||
| ssj_ops@calibrated=555,427 | |||
| 100% | 99.7% | 555,427 | 553,807 |
| 90% | 90.0% | 499,884 | 499,610 |
| 80% | 80.4% | 444,342 | 446,582 |
| 70% | 69.9% | 388,799 | 388,038 |
| 60% | 59.7% | 333,256 | 331,576 |
| 50% | 50.0% | 277,714 | 277,877 |
| 40% | 40.3% | 222,171 | 223,774 |
| 30% | 29.8% | 166,628 | 165,509 |
| 20% | 20.0% | 111,085 | 110,992 |
| 10% | 10.0% | 55,543 | 55,780 |
| Active Idle | 0 | 0 | |
