IBM Corporation IBM System x3400 M2 SPECpower_ssj2008 = 1,865 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Oct 20, 2009
Hardware Availability: Dec-2009 Software Availability: May-2009 Publication: Dec 2, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 218 25.5
Calibration 2 218 25.5
Calibration 3 220 25.5
100% 218 25.5
90% 206 25.4
80% 193 25.5
70% 175 25.5
60% 160 25.4
50% 148 25.4
40% 134 25.4
30% 122 25.4
20% 114 25.4
10% 100.0 25.4
Active Idle 67.0 25.4

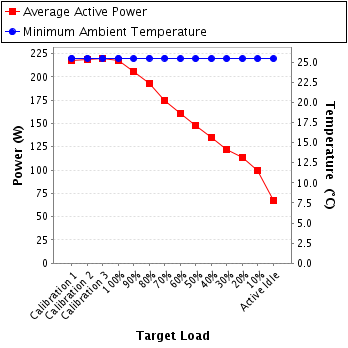

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H245650
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 09-04-BAC-150-01
Date of Calibration: 13-Apr-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 1.14 2.0 0.913 218 0.5%
Calibration 2 211 300.0 1.14 2.0 0.913 218 0.5%
Calibration 3 210 300.0 1.15 2.0 0.914 220 0.5%
100% 210 300.0 1.14 2.0 0.913 218 0.5%
90% 210 300.0 1.08 2.0 0.908 206 0.5%
80% 211 300.0 1.02 2.0 0.901 193 0.5%
70% 211 300.0 0.935 1.0 0.889 175 0.4%
60% 211 300.0 0.866 1.0 0.879 160 0.4%
50% 211 300.0 0.806 1.0 0.870 148 0.4%
40% 211 300.0 0.741 1.0 0.858 134 0.4%
30% 210 300.0 0.686 1.0 0.850 122 0.5%
20% 209 300.0 0.647 1.0 0.840 114 0.5%
10% 209 300.0 0.586 1.0 0.815 100.0 0.5%
Active Idle 209 300.0 0.424 0.5 0.756 67.0 0.5%

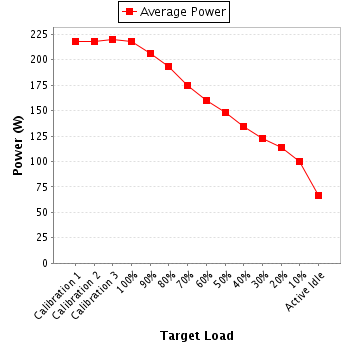

Power details for pwr1
