IBM Corporation IBM System x3400 M2 ssj_ops@100% = 553,807
ssj_ops@100% per JVM = 138,452
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Oct 20, 2009
Hardware Availability: Dec-2009 Software Availability: May-2009 Publication: Dec 2, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     555,690
Calibration 2     554,928
Calibration 3     555,927
ssj_ops@calibrated=555,427
100% 99.7% 555,427 553,807
90% 90.0% 499,884 499,610
80% 80.4% 444,342 446,582
70% 69.9% 388,799 388,038
60% 59.7% 333,256 331,576
50% 50.0% 277,714 277,877
40% 40.3% 222,171 223,774
30% 29.8% 166,628 165,509
20% 20.0% 111,085 110,992
10% 10.0% 55,543 55,780
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3400 M2
Form Factor: Tower
CPU Name: Intel Xeon E5540
CPU Characteristics: Quad-Core, 2.53GHz, 8MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: Samsung M391B5673EH1-CH9 DDR3-10600E; slots 3, 6, 11 and 14 populated
Power Supply Quantity and Rating (W): 1 x 670
Power Supply Details: IBM P/N 39Y7392
Disk Drive: 1 x 160 GB 7.2K RPM SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power saver plan in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [000F,00F0,0F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1675
JVM Maximum Heap (MB): 1675
JVM Address Bits: 64
Boot Firmware Version: 30V
Management Firmware Version: 44A
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-TX4AT0CS0KZ.001 136,612
WIN-TX4AT0CS0KZ.002 137,666
WIN-TX4AT0CS0KZ.003 140,148
WIN-TX4AT0CS0KZ.004 139,381
ssj_ops@100% 553,807
ssj_ops@100% per JVM 138,452

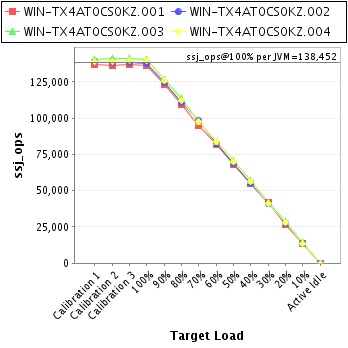

Graph of per-instance results
JVM 'WIN-TX4AT0CS0KZ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,058
Calibration 2     136,236
Calibration 3     136,615
ssj_ops@calibrated=136,425
100% 100.1% 136,425 136,612
90% 90.0% 122,783 122,841
80% 80.4% 109,140 109,733
70% 69.5% 95,498 94,865
60% 59.9% 81,855 81,770
50% 49.9% 68,213 68,080
40% 40.4% 54,570 55,159
30% 30.5% 40,928 41,607
20% 19.8% 27,285 26,985
10% 10.2% 13,643 13,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TX4AT0CS0KZ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,250
Calibration 2     138,453
Calibration 3     138,574
ssj_ops@calibrated=138,514
100% 99.4% 138,514 137,666
90% 90.0% 124,662 124,627
80% 80.1% 110,811 110,997
70% 70.8% 96,959 98,133
60% 59.4% 83,108 82,302
50% 49.8% 69,257 69,030
40% 39.8% 55,405 55,191
30% 29.5% 41,554 40,874
20% 19.7% 27,703 27,305
10% 10.0% 13,851 13,839
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TX4AT0CS0KZ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,539
Calibration 2     141,314
Calibration 3     140,785
ssj_ops@calibrated=141,049
100% 99.4% 141,049 140,148
90% 89.6% 126,944 126,365
80% 80.5% 112,839 113,478
70% 69.1% 98,734 97,444
60% 59.3% 84,629 83,682
50% 50.3% 70,525 70,977
40% 40.5% 56,420 57,105
30% 29.5% 42,315 41,672
20% 20.3% 28,210 28,620
10% 10.3% 14,105 14,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TX4AT0CS0KZ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,843
Calibration 2     138,925
Calibration 3     139,954
ssj_ops@calibrated=139,439
100% 100.0% 139,439 139,381
90% 90.2% 125,495 125,776
80% 80.6% 111,551 112,374
70% 70.0% 97,607 97,596
60% 60.1% 83,663 83,822
50% 50.1% 69,720 69,790
40% 40.4% 55,776 56,319
30% 29.7% 41,832 41,355
20% 20.1% 27,888 28,082
10% 9.8% 13,944 13,618
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
