SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3200 M3 | SPECpower_ssj2008 = 2,057 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Oct 27, 2009 |
| Hardware Availability: | Sep-2009 | Software Availability: | Jun-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

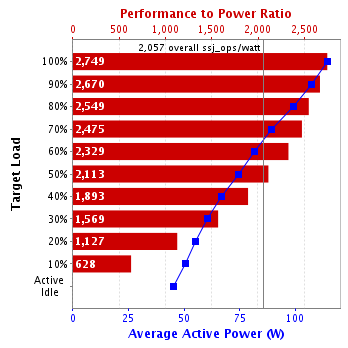

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.4% | 314,803 | 115 | 2,749 |
| 90% | 90.4% | 286,252 | 107 | 2,670 |
| 80% | 80.0% | 253,237 | 99.4 | 2,549 |
| 70% | 70.0% | 221,689 | 89.6 | 2,475 |
| 60% | 60.3% | 190,878 | 81.9 | 2,329 |
| 50% | 49.7% | 157,334 | 74.5 | 2,113 |
| 40% | 39.9% | 126,407 | 66.8 | 1,893 |
| 30% | 30.0% | 95,039 | 60.6 | 1,569 |
| 20% | 19.7% | 62,354 | 55.3 | 1,127 |
| 10% | 10.0% | 31,793 | 50.6 | 628 |
| Active Idle | 0 | 45.4 | 0 | |
| ∑ssj_ops / ∑power = | 2,057 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3200 M3 |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon X3470 |
| CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600E ECC CL9; slots 1 and 4 populated |
| Power Supply Quantity and Rating (W): | 1 x 430 |
| Power Supply Details: | IBM P/N:46M6669 |
| Disk Drive: | 1 x 250GB 7200RPM 3.5" SATA (IBM P/N:42C0463) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel 82574L Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | GYE122TUS |
| Management Firmware Version: | YU0044A |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | ThinkCentre |
| CPU Description: | Intel Pentum 4 |
| Memory amount (GB): | 0.5 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional Edition |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9 VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-03 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 115 | 24.2 |
| 90% | 107 | 24.2 |
| 80% | 99.4 | 24.2 |
| 70% | 89.6 | 24.0 |
| 60% | 81.9 | 23.9 |
| 50% | 74.5 | 23.9 |
| 40% | 66.8 | 23.9 |
| 30% | 60.6 | 23.9 |
| 20% | 55.3 | 23.8 |
| 10% | 50.6 | 23.7 |
| Active Idle | 45.4 | 23.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 23.6 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 313,019 | ||
| Calibration 2 | 316,546 | ||
| Calibration 3 | 316,721 | ||
| ssj_ops@calibrated=316,633 | |||
| 100% | 99.4% | 316,633 | 314,803 |
| 90% | 90.4% | 284,970 | 286,252 |
| 80% | 80.0% | 253,307 | 253,237 |
| 70% | 70.0% | 221,643 | 221,689 |
| 60% | 60.3% | 189,980 | 190,878 |
| 50% | 49.7% | 158,317 | 157,334 |
| 40% | 39.9% | 126,653 | 126,407 |
| 30% | 30.0% | 94,990 | 95,039 |
| 20% | 19.7% | 63,327 | 62,354 |
| 10% | 10.0% | 31,663 | 31,793 |
| Active Idle | 0 | 0 | |
