IBM Corporation IBM System x3200 M3 ssj_ops@100% = 314,803
ssj_ops@100% per JVM = 157,402
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: NanKang, Taipei, Taiwan Test Date: Oct 27, 2009
Hardware Availability: Sep-2009 Software Availability: Jun-2009 Publication: Nov 18, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     313,019
Calibration 2     316,546
Calibration 3     316,721
ssj_ops@calibrated=316,633
100% 99.4% 316,633 314,803
90% 90.4% 284,970 286,252
80% 80.0% 253,307 253,237
70% 70.0% 221,643 221,689
60% 60.3% 189,980 190,878
50% 49.7% 158,317 157,334
40% 39.9% 126,653 126,407
30% 30.0% 94,990 95,039
20% 19.7% 63,327 62,354
10% 10.0% 31,663 31,793
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3200 M3
Form Factor: Tower
CPU Name: Intel Xeon X3470
CPU Characteristics: Quad-Core, 2.93GHz, 8MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E ECC CL9; slots 1 and 4 populated
Power Supply Quantity and Rating (W): 1 x 430
Power Supply Details: IBM P/N:46M6669
Disk Drive: 1 x 250GB 7200RPM 3.5" SATA (IBM P/N:42C0463)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82574L Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0F,F0]
JVM Instances: 2
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: GYE122TUS
Management Firmware Version: YU0044A
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-GFCUEQLZTHI.001 157,282
WIN-GFCUEQLZTHI.002 157,521
ssj_ops@100% 314,803
ssj_ops@100% per JVM 157,402

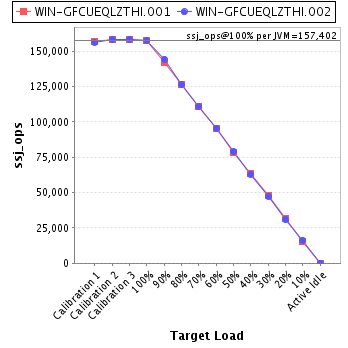

Graph of per-instance results
JVM 'WIN-GFCUEQLZTHI.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,793
Calibration 2     158,321
Calibration 3     158,265
ssj_ops@calibrated=158,293
100% 99.4% 158,293 157,282
90% 89.7% 142,464 141,917
80% 80.0% 126,634 126,695
70% 70.0% 110,805 110,729
60% 60.3% 94,976 95,401
50% 49.5% 79,146 78,413
40% 40.0% 63,317 63,349
30% 30.2% 47,488 47,861
20% 19.8% 31,659 31,396
10% 9.8% 15,829 15,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GFCUEQLZTHI.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,226
Calibration 2     158,225
Calibration 3     158,456
ssj_ops@calibrated=158,340
100% 99.5% 158,340 157,521
90% 91.2% 142,506 144,335
80% 79.9% 126,672 126,542
70% 70.1% 110,838 110,961
60% 60.3% 95,004 95,477
50% 49.8% 79,170 78,921
40% 39.8% 63,336 63,058
30% 29.8% 47,502 47,177
20% 19.6% 31,668 30,958
10% 10.3% 15,834 16,281
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
