SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3200 M3 | SPECpower_ssj2008 = 2,057 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Oct 27, 2009 |
| Hardware Availability: | Sep-2009 | Software Availability: | Jun-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

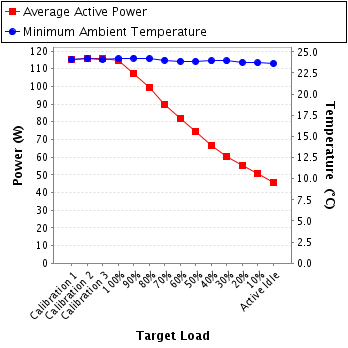

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 115 | 24.1 |
| Calibration 2 | 116 | 24.2 |
| Calibration 3 | 116 | 24.1 |
| 100% | 115 | 24.2 |
| 90% | 107 | 24.2 |
| 80% | 99.4 | 24.2 |
| 70% | 89.6 | 24.0 |
| 60% | 81.9 | 23.9 |
| 50% | 74.5 | 23.9 |
| 40% | 66.8 | 23.9 |
| 30% | 60.6 | 23.9 |
| 20% | 55.3 | 23.8 |
| 10% | 50.6 | 23.7 |
| Active Idle | 45.4 | 23.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-03 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |

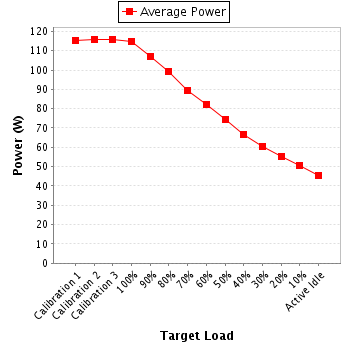

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 0.599 | 1.0 | 0.927 | 115 | 0.4% |
| Calibration 2 | 207 | 300.0 | 0.603 | 1.0 | 0.928 | 116 | 0.4% |
| Calibration 3 | 206 | 300.0 | 0.604 | 1.0 | 0.929 | 116 | 0.4% |
| 100% | 207 | 300.0 | 0.597 | 1.0 | 0.928 | 115 | 0.4% |
| 90% | 207 | 300.0 | 0.564 | 1.0 | 0.919 | 107 | 0.5% |
| 80% | 207 | 300.0 | 0.531 | 1.0 | 0.906 | 99.4 | 0.5% |
| 70% | 207 | 300.0 | 0.488 | 1.0 | 0.887 | 89.6 | 0.5% |
| 60% | 207 | 300.0 | 0.455 | 0.5 | 0.869 | 81.9 | 0.4% |
| 50% | 208 | 300.0 | 0.422 | 0.5 | 0.851 | 74.5 | 0.4% |
| 40% | 208 | 300.0 | 0.388 | 0.5 | 0.830 | 66.8 | 0.5% |
| 30% | 208 | 300.0 | 0.359 | 0.5 | 0.812 | 60.6 | 0.5% |
| 20% | 208 | 300.0 | 0.336 | 0.5 | 0.791 | 55.3 | 0.5% |
| 10% | 208 | 300.0 | 0.317 | 0.5 | 0.768 | 50.6 | 0.6% |
| Active Idle | 208 | 300.0 | 0.296 | 0.5 | 0.737 | 45.4 | 0.6% |
