Hewlett-Packard Company ProLiant BL2x220c G6 SPECpower_ssj2008 = 2,113 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Oct 2, 2009
Hardware Availability: Nov-2009 Software Availability: Jul-2009 Publication: Nov 18, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 16,445,126 5,547 2,965
90% 90.4% 14,881,823 5,205 2,859
80% 80.3% 13,226,781 4,860 2,722
70% 70.0% 11,524,212 4,528 2,545
60% 60.0% 9,872,870 4,224 2,337
50% 50.0% 8,234,022 3,957 2,081
40% 40.0% 6,593,544 3,686 1,789
30% 30.0% 4,936,502 3,413 1,446
20% 20.0% 3,293,145 3,117 1,057
10% 10.0% 1,646,307 2,675 615
Active Idle 0 1,696 0
∑ssj_ops / ∑power = 2,113

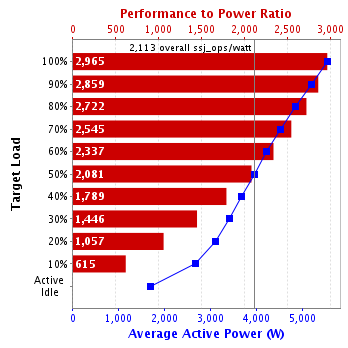

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
32 64 256 512 256 32 128
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HP BladeSystem c7000 Enclosure
Form Factor: 10U
Power Supply Quantity and Rating (W): 4 x 2400
Power Supply Details: HP Part #499243-B21
Network Switch: HP ProCurve 2848
Network Switch Details: 48-port GbE Managed Switch
KVM Switch: HP Onboard Administrator
KVM Switch Details: Virtual KVM based remote console
Other Hardware: 2xEthernet Pass-Through Module for HP BladeSystem, part #406740-B21; 10xHP Active Cool 200 Fans, part #412120-B21
Comment: Network switch is a standalone device and is not included in the measured power. Two power supplies were connected to each of the two power analyzers using "Y" power cords.
Set: 'sut'
Set Identifier: sut
Set Description: Systems Under Test
# of Identical Nodes: 32
Comment: None
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL2x220c G6
Form Factor: Half-height server blade
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E CL9; 4 slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: On board SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced power enabled in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: I26 09/06/2009
Management Firmware Version: 1.79
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
See SUT notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 4
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer WT210-1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45371
Connectivity: GPIB
Input Connection: Default
Calibration Institute: HP Metrology
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705420
Date of Calibration: 26-Nov-2008
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: None
Power Analyzer WT210-2
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB
Input Connection: Default
Calibration Institute: HP Metrology
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705449
Date of Calibration: 17-Dec-2008
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: None
Temperature Sensor watchportH
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 5,547 22.6
90% 5,205 22.5
80% 4,860 22.6
70% 4,528 22.6
60% 4,224 22.5
50% 3,957 22.6
40% 3,686 22.5
30% 3,413 22.4
20% 3,117 22.5
10% 2,675 22.4
Active Idle 1,696 22.5
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.4 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,361,622
Calibration 2     16,472,432
Calibration 3     16,459,909
ssj_ops@calibrated=16,466,171
100% 99.9% 16,466,171 16,445,126
90% 90.4% 14,819,553 14,881,823
80% 80.3% 13,172,936 13,226,781
70% 70.0% 11,526,319 11,524,212
60% 60.0% 9,879,702 9,872,870
50% 50.0% 8,233,085 8,234,022
40% 40.0% 6,586,468 6,593,544
30% 30.0% 4,939,851 4,936,502
20% 20.0% 3,293,234 3,293,145
10% 10.0% 1,646,617 1,646,307
Active Idle   0 0
Graph of results
See the Aggregate Performance Report for additional details.
