SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R710 (Intel Xeon L5530, 2.40 GHz) | SPECpower_ssj2008 = 1,918 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Aug 21, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | May-2009 | Publication: | Oct 21, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

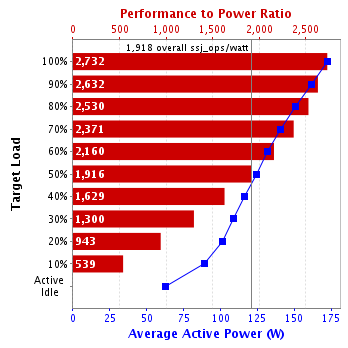

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.2% | 470,740 | 172 | 2,732 |
| 90% | 89.5% | 424,584 | 161 | 2,632 |
| 80% | 80.2% | 380,719 | 150 | 2,530 |
| 70% | 70.1% | 332,832 | 140 | 2,371 |
| 60% | 60.1% | 285,186 | 132 | 2,160 |
| 50% | 50.1% | 237,909 | 124 | 1,916 |
| 40% | 40.0% | 189,686 | 116 | 1,629 |
| 30% | 29.9% | 141,716 | 109 | 1,300 |
| 20% | 20.1% | 95,317 | 101 | 943 |
| 10% | 10.1% | 47,940 | 89.0 | 539 |
| Active Idle | 0 | 62.8 | 0 | |
| ∑ssj_ops / ∑power = | 1,918 | |||
| Set Identifier: | sut |
| Set Description: | PowerEdge R710 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge R710 (Intel Xeon L5530, 2.40 GHz) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon L5530 |
| CPU Characteristics: | Quad Core, 2.40 GHz, 8 MB L3 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-8400E ECC, Slots A1-A2 and B1-B2 populated |
| Power Supply Quantity and Rating (W): | 1 x 570 |
| Power Supply Details: | Dell PN FU100 |
| Disk Drive: | 1 x 50 GB 2.5" SATA SSD (Dell SKU 341-8857) |
| Disk Controller: | SAS 6iR |
| # and type of Network Interface Cards (NICs) Installed: | 2 x dual-port onboard Broadcom NetXtreme II BCM5709 |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver |
| Operating System (OS): | Microsoft Windows 2008 Enterprise x64 Edition |
| OS Version: | SP2 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R)6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | start /affinity [0F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1650 |
| JVM Maximum Heap (MB): | 1650 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.2.6 |
| Management Firmware Version: | A01 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge 1950 |
| CPU Description: | Intel Xeon 5160 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 2003 Server Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Jrockit(R) 1.6.0_02 build R26.4.0-63 (32-bit) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91HB22773 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | factory calibration label |
| Date of Calibration: | 21-Jan-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 172 | 22.1 |
| 90% | 161 | 22.0 |
| 80% | 150 | 22.0 |
| 70% | 140 | 22.0 |
| 60% | 132 | 21.9 |
| 50% | 124 | 21.9 |
| 40% | 116 | 21.9 |
| 30% | 109 | 21.9 |
| 20% | 101 | 21.9 |
| 10% | 89.0 | 21.9 |
| Active Idle | 62.8 | 21.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 1 wire | 21.9 | 255 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 470,810 | ||
| Calibration 2 | 474,456 | ||
| Calibration 3 | 474,533 | ||
| ssj_ops@calibrated=474,494 | |||
| 100% | 99.2% | 474,494 | 470,740 |
| 90% | 89.5% | 427,045 | 424,584 |
| 80% | 80.2% | 379,596 | 380,719 |
| 70% | 70.1% | 332,146 | 332,832 |
| 60% | 60.1% | 284,697 | 285,186 |
| 50% | 50.1% | 237,247 | 237,909 |
| 40% | 40.0% | 189,798 | 189,686 |
| 30% | 29.9% | 142,348 | 141,716 |
| 20% | 20.1% | 94,899 | 95,317 |
| 10% | 10.1% | 47,449 | 47,940 |
| Active Idle | 0 | 0 | |
