Dell Inc. PowerEdge R710 (Intel Xeon L5530, 2.40 GHz) ssj_ops@100% = 470,740
ssj_ops@100% per JVM = 117,685
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 21, 2009
Hardware Availability: Aug-2009 Software Availability: May-2009 Publication: Oct 21, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     470,810
Calibration 2     474,456
Calibration 3     474,533
ssj_ops@calibrated=474,494
100% 99.2% 474,494 470,740
90% 89.5% 427,045 424,584
80% 80.2% 379,596 380,719
70% 70.1% 332,146 332,832
60% 60.1% 284,697 285,186
50% 50.1% 237,247 237,909
40% 40.0% 189,798 189,686
30% 29.9% 142,348 141,716
20% 20.1% 94,899 95,317
10% 10.1% 47,449 47,940
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge R710
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R710 (Intel Xeon L5530, 2.40 GHz)
Form Factor: 2U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad Core, 2.40 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-8400E ECC, Slots A1-A2 and B1-B2 populated
Power Supply Quantity and Rating (W): 1 x 570
Power Supply Details: Dell PN FU100
Disk Drive: 1 x 50 GB 2.5" SATA SSD (Dell SKU 341-8857)
Disk Controller: SAS 6iR
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Broadcom NetXtreme II BCM5709
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: SP2 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R)6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: 1.2.6
Management Firmware Version: A01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WHVL-W2K8SP2.001 117,169
WHVL-W2K8SP2.002 118,018
WHVL-W2K8SP2.003 117,984
WHVL-W2K8SP2.004 117,570
ssj_ops@100% 470,740
ssj_ops@100% per JVM 117,685

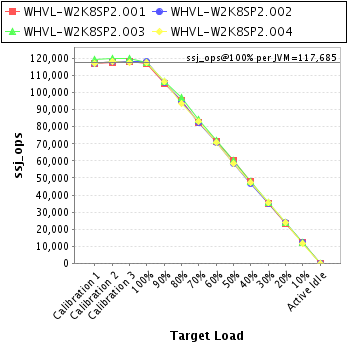

Graph of per-instance results
JVM 'WHVL-W2K8SP2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,120
Calibration 2     117,853
Calibration 3     118,018
ssj_ops@calibrated=117,936
100% 99.4% 117,936 117,169
90% 89.6% 106,142 105,621
80% 80.7% 94,349 95,152
70% 70.2% 82,555 82,748
60% 60.4% 70,761 71,198
50% 51.2% 58,968 60,384
40% 40.5% 47,174 47,753
30% 29.9% 35,381 35,237
20% 20.0% 23,587 23,560
10% 10.3% 11,794 12,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WHVL-W2K8SP2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,248
Calibration 2     118,475
Calibration 3     118,567
ssj_ops@calibrated=118,521
100% 99.6% 118,521 118,018
90% 89.4% 106,669 105,995
80% 80.0% 94,817 94,847
70% 69.8% 82,965 82,769
60% 59.8% 71,113 70,901
50% 49.5% 59,261 58,656
40% 39.5% 47,409 46,832
30% 29.8% 35,556 35,327
20% 20.0% 23,704 23,645
10% 10.1% 11,852 11,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WHVL-W2K8SP2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,328
Calibration 2     119,952
Calibration 3     120,230
ssj_ops@calibrated=120,091
100% 98.2% 120,091 117,984
90% 88.8% 108,082 106,680
80% 80.7% 96,073 96,887
70% 70.1% 84,064 84,133
60% 60.0% 72,055 72,064
50% 50.4% 60,046 60,508
40% 39.8% 48,036 47,808
30% 29.8% 36,027 35,805
20% 20.1% 24,018 24,130
10% 10.0% 12,009 11,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WHVL-W2K8SP2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,115
Calibration 2     118,176
Calibration 3     117,717
ssj_ops@calibrated=117,946
100% 99.7% 117,946 117,570
90% 90.1% 106,152 106,288
80% 79.6% 94,357 93,833
70% 70.5% 82,563 83,182
60% 60.2% 70,768 71,023
50% 49.5% 58,973 58,361
40% 40.1% 47,179 47,293
30% 30.0% 35,384 35,347
20% 20.3% 23,589 23,983
10% 10.0% 11,795 11,840
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
