SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R710 (Intel Xeon L5530, 2.40 GHz) | SPECpower_ssj2008 = 1,918 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Aug 21, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | May-2009 | Publication: | Oct 21, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

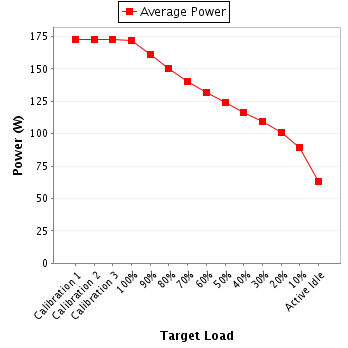

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 172 | 22.1 |
| Calibration 2 | 173 | 22.1 |
| Calibration 3 | 173 | 22.1 |
| 100% | 172 | 22.1 |
| 90% | 161 | 22.0 |
| 80% | 150 | 22.0 |
| 70% | 140 | 22.0 |
| 60% | 132 | 21.9 |
| 50% | 124 | 21.9 |
| 40% | 116 | 21.9 |
| 30% | 109 | 21.9 |
| 20% | 101 | 21.9 |
| 10% | 89.0 | 21.9 |
| Active Idle | 62.8 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91HB22773 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | factory calibration label |
| Date of Calibration: | 21-Jan-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 0.866 | 1.0 | 0.957 | 172 | 0.3% |
| Calibration 2 | 208 | 300.0 | 0.868 | 1.0 | 0.958 | 173 | 0.3% |
| Calibration 3 | 208 | 300.0 | 0.867 | 1.0 | 0.957 | 173 | 0.3% |
| 100% | 208 | 300.0 | 0.865 | 1.0 | 0.957 | 172 | 0.3% |
| 90% | 209 | 300.0 | 0.812 | 1.0 | 0.952 | 161 | 0.4% |
| 80% | 209 | 300.0 | 0.762 | 1.0 | 0.947 | 150 | 0.4% |
| 70% | 209 | 300.0 | 0.714 | 1.0 | 0.940 | 140 | 0.4% |
| 60% | 208 | 300.0 | 0.679 | 1.0 | 0.934 | 132 | 0.4% |
| 50% | 208 | 300.0 | 0.643 | 1.0 | 0.927 | 124 | 0.4% |
| 40% | 209 | 300.0 | 0.607 | 1.0 | 0.920 | 116 | 0.4% |
| 30% | 209 | 300.0 | 0.572 | 1.0 | 0.913 | 109 | 0.5% |
| 20% | 209 | 300.0 | 0.536 | 1.0 | 0.903 | 101 | 0.5% |
| 10% | 209 | 300.0 | 0.483 | 0.5 | 0.882 | 89.0 | 0.4% |
| Active Idle | 208 | 300.0 | 0.364 | 0.5 | 0.830 | 62.8 | 0.5% |
