SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R610 (Intel Xeon L5530, 2.40 GHz) | SPECpower_ssj2008 = 1,930 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jul 16, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | May-2009 | Publication: | Sep 9, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

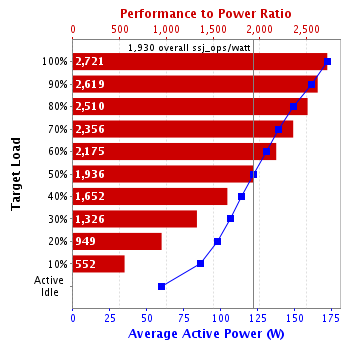

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.7% | 468,471 | 172 | 2,721 |
| 90% | 89.8% | 422,024 | 161 | 2,619 |
| 80% | 79.8% | 375,048 | 149 | 2,510 |
| 70% | 69.8% | 327,870 | 139 | 2,356 |
| 60% | 60.5% | 284,444 | 131 | 2,175 |
| 50% | 50.3% | 236,387 | 122 | 1,936 |
| 40% | 40.1% | 188,615 | 114 | 1,652 |
| 30% | 30.1% | 141,325 | 107 | 1,326 |
| 20% | 19.8% | 92,925 | 98.0 | 949 |
| 10% | 10.1% | 47,511 | 86.0 | 552 |
| Active Idle | 0 | 60.0 | 0 | |
| ∑ssj_ops / ∑power = | 1,930 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge R610 (Intel Xeon L5530, 2.40 GHz) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon L5530 |
| CPU Characteristics: | Quad Core, 2.40 GHz, 8 MB L3 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 2GB PC3-8500E (Slots A1-A2, B1-B2 populated) |
| Power Supply Quantity and Rating (W): | 1 x 502 |
| Power Supply Details: | Dell SKU 330-3517 |
| Disk Drive: | 1 x 50GB SSD 2.5" SATA (Dell SKU 341-8857) |
| Disk Controller: | SAS6iR |
| # and type of Network Interface Cards (NICs) Installed: | 2 x dual-port onboard Broadcom NetXtreme II BCM5709 |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
| OS Version: | SP2 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R)6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | start /affinity [0F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1650 |
| JVM Maximum Heap (MB): | 1650 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.2.5 |
| Management Firmware Version: | A01 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | Remote Desktop used |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge 1950 |
| CPU Description: | Intel Xeon 5160 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 2003 Server Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Jrockit(R) 1.6.0_02 build R26.4.0-63 (32-bit) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 2565983 |
| Date of Calibration: | 20-Aug-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 172 | 22.7 |
| 90% | 161 | 22.8 |
| 80% | 149 | 22.8 |
| 70% | 139 | 22.8 |
| 60% | 131 | 22.8 |
| 50% | 122 | 22.8 |
| 40% | 114 | 22.8 |
| 30% | 107 | 22.8 |
| 20% | 98.0 | 22.7 |
| 10% | 86.0 | 22.7 |
| Active Idle | 60.0 | 22.7 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 1 wire | 22.7 | 255 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 467,445 | ||
| Calibration 2 | 469,572 | ||
| Calibration 3 | 470,303 | ||
| ssj_ops@calibrated=469,937 | |||
| 100% | 99.7% | 469,937 | 468,471 |
| 90% | 89.8% | 422,943 | 422,024 |
| 80% | 79.8% | 375,950 | 375,048 |
| 70% | 69.8% | 328,956 | 327,870 |
| 60% | 60.5% | 281,962 | 284,444 |
| 50% | 50.3% | 234,969 | 236,387 |
| 40% | 40.1% | 187,975 | 188,615 |
| 30% | 30.1% | 140,981 | 141,325 |
| 20% | 19.8% | 93,987 | 92,925 |
| 10% | 10.1% | 46,994 | 47,511 |
| Active Idle | 0 | 0 | |
