Dell Inc. PowerEdge R610 (Intel Xeon L5530, 2.40 GHz) ssj_ops@100% = 468,471
ssj_ops@100% per JVM = 117,118
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 16, 2009
Hardware Availability: Aug-2009 Software Availability: May-2009 Publication: Sep 9, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     467,445
Calibration 2     469,572
Calibration 3     470,303
ssj_ops@calibrated=469,937
100% 99.7% 469,937 468,471
90% 89.8% 422,943 422,024
80% 79.8% 375,950 375,048
70% 69.8% 328,956 327,870
60% 60.5% 281,962 284,444
50% 50.3% 234,969 236,387
40% 40.1% 187,975 188,615
30% 30.1% 140,981 141,325
20% 19.8% 93,987 92,925
10% 10.1% 46,994 47,511
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R610 (Intel Xeon L5530, 2.40 GHz)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad Core, 2.40 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB PC3-8500E (Slots A1-A2, B1-B2 populated)
Power Supply Quantity and Rating (W): 1 x 502
Power Supply Details: Dell SKU 330-3517
Disk Drive: 1 x 50GB SSD 2.5" SATA (Dell SKU 341-8857)
Disk Controller: SAS6iR
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Broadcom NetXtreme II BCM5709
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: SP2 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R)6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: 1.2.5
Management Firmware Version: A01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: Remote Desktop used
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SPECpower-SUT.001 116,183
SPECpower-SUT.002 116,363
SPECpower-SUT.003 117,004
SPECpower-SUT.004 118,921
ssj_ops@100% 468,471
ssj_ops@100% per JVM 117,118

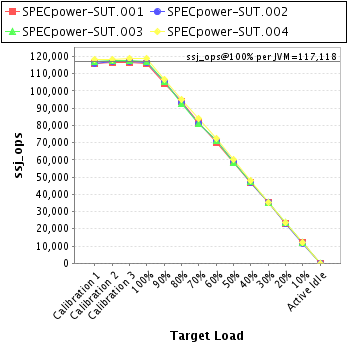

Graph of per-instance results
JVM 'SPECpower-SUT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,002
Calibration 2     116,591
Calibration 3     116,435
ssj_ops@calibrated=116,513
100% 99.7% 116,513 116,183
90% 89.7% 104,862 104,473
80% 80.5% 93,211 93,790
70% 70.0% 81,559 81,605
60% 60.0% 69,908 69,902
50% 50.3% 58,257 58,657
40% 40.0% 46,605 46,647
30% 30.3% 34,954 35,257
20% 19.7% 23,303 22,968
10% 10.3% 11,651 11,950
Active Idle   0 0

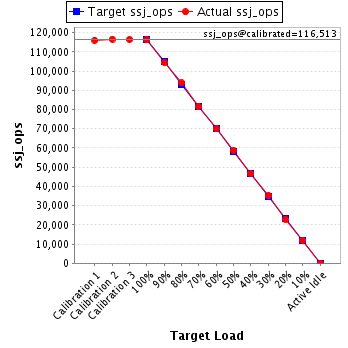

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SPECpower-SUT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,152
Calibration 2     117,195
Calibration 3     117,141
ssj_ops@calibrated=117,168
100% 99.3% 117,168 116,363
90% 89.8% 105,451 105,254
80% 79.8% 93,734 93,508
70% 69.5% 82,018 81,379
60% 60.6% 70,301 71,002
50% 50.5% 58,584 59,114
40% 40.0% 46,867 46,899
30% 30.3% 35,150 35,510
20% 19.6% 23,434 23,020
10% 10.0% 11,717 11,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SPECpower-SUT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,106
Calibration 2     117,380
Calibration 3     117,716
ssj_ops@calibrated=117,548
100% 99.5% 117,548 117,004
90% 89.7% 105,793 105,440
80% 78.8% 94,038 92,651
70% 68.9% 82,283 80,991
60% 60.5% 70,529 71,097
50% 49.9% 58,774 58,654
40% 40.2% 47,019 47,229
30% 29.8% 35,264 35,008
20% 20.0% 23,510 23,541
10% 10.1% 11,755 11,896
Active Idle   0 0

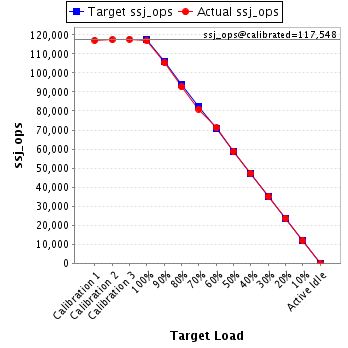

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SPECpower-SUT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,186
Calibration 2     118,407
Calibration 3     119,010
ssj_ops@calibrated=118,709
100% 100.2% 118,709 118,921
90% 90.0% 106,838 106,856
80% 80.1% 94,967 95,099
70% 70.7% 83,096 83,896
60% 61.0% 71,225 72,444
50% 50.5% 59,354 59,963
40% 40.3% 47,483 47,840
30% 29.9% 35,613 35,550
20% 19.7% 23,742 23,395
10% 10.1% 11,871 11,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
