Dell Inc. PowerEdge R610 (Intel Xeon L5530, 2.40 GHz) SPECpower_ssj2008 = 1,930 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 16, 2009
Hardware Availability: Aug-2009 Software Availability: May-2009 Publication: Sep 9, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 170 22.7
Calibration 2 172 22.7
Calibration 3 172 22.7
100% 172 22.7
90% 161 22.8
80% 149 22.8
70% 139 22.8
60% 131 22.8
50% 122 22.8
40% 114 22.8
30% 107 22.8
20% 98.0 22.7
10% 86.0 22.7
Active Idle 60.0 22.7

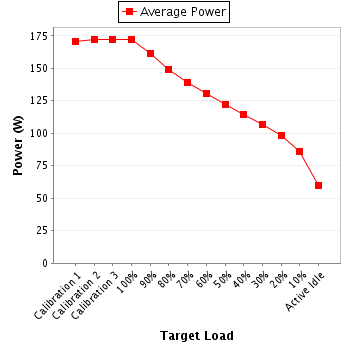

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H648897
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 2565983
Date of Calibration: 20-Aug-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 0.891 1.0 0.919 170 0.4%
Calibration 2 208 300.0 0.896 1.0 0.920 172 0.4%
Calibration 3 209 300.0 0.898 1.0 0.920 172 0.4%
100% 209 300.0 0.897 1.0 0.920 172 0.4%
90% 209 300.0 0.846 1.0 0.912 161 0.4%
80% 209 300.0 0.792 1.0 0.904 149 0.4%
70% 209 300.0 0.743 1.0 0.897 139 0.4%
60% 209 300.0 0.701 1.0 0.893 131 0.4%
50% 209 300.0 0.658 1.0 0.888 122 0.4%
40% 209 300.0 0.620 1.0 0.882 114 0.5%
30% 209 300.0 0.584 1.0 0.873 107 0.5%
20% 209 300.0 0.548 1.0 0.856 98.0 0.5%
10% 209 300.0 0.504 1.0 0.817 86.0 0.6%
Active Idle 209 300.0 0.406 1.0 0.707 60.0 0.8%
Power details for pwr1
