SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL785 G6 (2.1 GHz, AMD Opteron 8425 HE) | SPECpower_ssj2008 = 1,297 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Cupertino, CA, USA | Test Date: | Aug 17, 2009 |
| Hardware Availability: | Oct-2009 | Software Availability: | Oct-2009 | Publication: | Sep 14, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

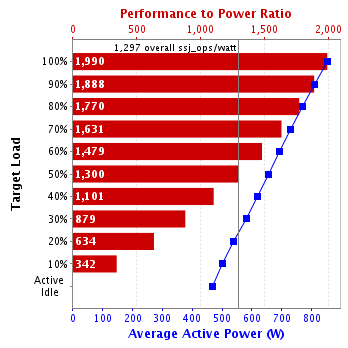

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 1,696,373 | 852 | 1,990 |
| 90% | 89.9% | 1,531,195 | 811 | 1,888 |
| 80% | 80.0% | 1,363,901 | 770 | 1,770 |
| 70% | 69.7% | 1,188,373 | 728 | 1,631 |
| 60% | 60.0% | 1,023,072 | 692 | 1,479 |
| 50% | 50.0% | 851,788 | 655 | 1,300 |
| 40% | 40.0% | 681,901 | 619 | 1,101 |
| 30% | 30.0% | 511,279 | 582 | 879 |
| 20% | 20.0% | 340,607 | 537 | 634 |
| 10% | 10.1% | 171,462 | 501 | 342 |
| Active Idle | 0 | 468 | 0 | |
| ∑ssj_ops / ∑power = | 1,297 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL785 G6 (2.1 GHz, AMD Opteron 8425 HE) |
| Form Factor: | 7U |
| CPU Name: | Six-Core AMD Opteron(r) Processor 8425 HE |
| CPU Characteristics: | Six-Core, 2.1 GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2100 |
| CPU(s) Enabled: | 48 cores, 8 chips, 6 cores/chip |
| Hardware Threads: | 48 (1 / core) |
| CPU(s) Orderable: | 4,8 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per chip |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 16 x 4096 MB |
| Memory Details: | 4GB Reg PC2-5300 2x2GB LP Kit 483401-B21; slots 1 and 2 populated on each board |
| Power Supply Quantity and Rating (W): | 3 x 1200 |
| Power Supply Details: | HP P/N 500172-B21 |
| Disk Drive: | 1 x 73GB 10K RPM SFF SAS |
| Disk Controller: | Integrated P400i SmartArray controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC371i NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | none |
| Software | |
|---|---|
| Power Management: | HP Dynamic Power Savings Mode (default) |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | Build 6002: Service Pack 2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /B /AFFINITY <mask> (mask taking values 0x3F, 0xFC0, 0x3F000, 0xFC0000, 0x3F000000, 0xFC0000000, 0x3F000000000, 0xFC0000000000) |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | A15 08/14/2009 |
| Management Firmware Version: | 1.78 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | Compaq nc6220 |
| CPU Description: | Pentium M |
| Memory amount (GB): | 0.5 |
| Software | |
|---|---|
| Operating System (OS): | Ubuntu 9.04 Jaunty Jackelope |
| JVM Vendor: | Sun Microsystems |
| JVM Version: | 1.6.0_13 |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91FB02050 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Instrument Calibration Service |
| Calibration Label: | 67961 |
| Date of Calibration: | 02-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-b98694b5 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | OS Supplied |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of center of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 852 | 22.9 |
| 90% | 811 | 22.8 |
| 80% | 770 | 22.9 |
| 70% | 728 | 22.9 |
| 60% | 692 | 22.8 |
| 50% | 655 | 23.0 |
| 40% | 619 | 22.8 |
| 30% | 582 | 22.6 |
| 20% | 537 | 22.7 |
| 10% | 501 | 22.9 |
| Active Idle | 468 | 22.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.6 | 72 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,706,722 | ||
| Calibration 2 | 1,704,672 | ||
| Calibration 3 | 1,703,437 | ||
| ssj_ops@calibrated=1,704,054 | |||
| 100% | 99.5% | 1,704,054 | 1,696,373 |
| 90% | 89.9% | 1,533,649 | 1,531,195 |
| 80% | 80.0% | 1,363,243 | 1,363,901 |
| 70% | 69.7% | 1,192,838 | 1,188,373 |
| 60% | 60.0% | 1,022,433 | 1,023,072 |
| 50% | 50.0% | 852,027 | 851,788 |
| 40% | 40.0% | 681,622 | 681,901 |
| 30% | 30.0% | 511,216 | 511,279 |
| 20% | 20.0% | 340,811 | 340,607 |
| 10% | 10.1% | 170,405 | 171,462 |
| Active Idle | 0 | 0 | |
