Hewlett-Packard Company ProLiant DL785 G6 (2.1 GHz, AMD Opteron 8425 HE) ssj_ops@100% = 1,696,373
ssj_ops@100% per JVM = 212,047
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Cupertino, CA, USA Test Date: Aug 17, 2009
Hardware Availability: Oct-2009 Software Availability: Oct-2009 Publication: Sep 14, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,706,722
Calibration 2     1,704,672
Calibration 3     1,703,437
ssj_ops@calibrated=1,704,054
100% 99.5% 1,704,054 1,696,373
90% 89.9% 1,533,649 1,531,195
80% 80.0% 1,363,243 1,363,901
70% 69.7% 1,192,838 1,188,373
60% 60.0% 1,022,433 1,023,072
50% 50.0% 852,027 851,788
40% 40.0% 681,622 681,901
30% 30.0% 511,216 511,279
20% 20.0% 340,811 340,607
10% 10.1% 170,405 171,462
Active Idle   0 0

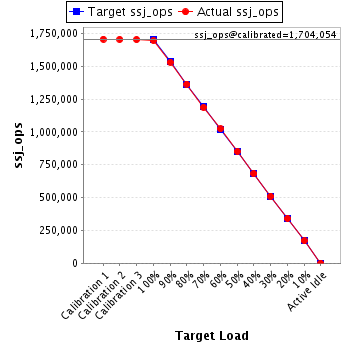

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL785 G6 (2.1 GHz, AMD Opteron 8425 HE)
Form Factor: 7U
CPU Name: Six-Core AMD Opteron(r) Processor 8425 HE
CPU Characteristics: Six-Core, 2.1 GHz, 6MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 48 cores, 8 chips, 6 cores/chip
Hardware Threads: 48 (1 / core)
CPU(s) Orderable: 4,8 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per chip
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB Reg PC2-5300 2x2GB LP Kit 483401-B21; slots 1 and 2 populated on each board
Power Supply Quantity and Rating (W): 3 x 1200
Power Supply Details: HP P/N 500172-B21
Disk Drive: 1 x 73GB 10K RPM SFF SAS
Disk Controller: Integrated P400i SmartArray controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC371i NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: none
Software
Power Management: HP Dynamic Power Savings Mode (default)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Build 6002: Service Pack 2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /B /AFFINITY <mask> (mask taking values 0x3F, 0xFC0, 0x3F000, 0xFC0000, 0x3F000000, 0xFC0000000, 0x3F000000000, 0xFC0000000000)
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: A15 08/14/2009
Management Firmware Version: 1.78
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: None
Boot Firmware Settings
Hardware Prefetch disabled
Management Firmware Settings
Default
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-DEJL0IOHCB7.001 214,266
WIN-DEJL0IOHCB7.002 210,930
WIN-DEJL0IOHCB7.003 218,025
WIN-DEJL0IOHCB7.004 211,300
WIN-DEJL0IOHCB7.005 207,603
WIN-DEJL0IOHCB7.006 211,619
WIN-DEJL0IOHCB7.007 211,129
WIN-DEJL0IOHCB7.008 211,501
ssj_ops@100% 1,696,373
ssj_ops@100% per JVM 212,047

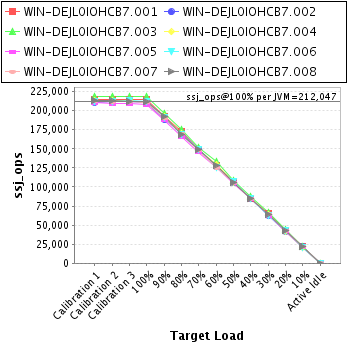

Graph of per-instance results

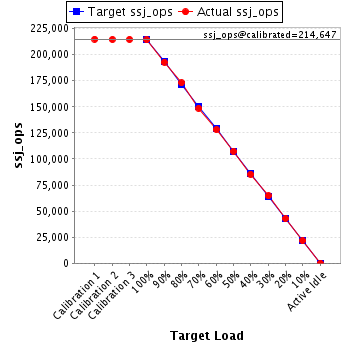

JVM 'WIN-DEJL0IOHCB7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,910
Calibration 2     214,549
Calibration 3     214,745
ssj_ops@calibrated=214,647
100% 99.8% 214,647 214,266
90% 89.9% 193,182 192,950
80% 80.6% 171,717 173,015
70% 69.2% 150,253 148,635
60% 59.7% 128,788 128,209
50% 50.1% 107,323 107,544
40% 39.7% 85,859 85,301
30% 30.1% 64,394 64,685
20% 19.9% 42,929 42,808
10% 10.1% 21,465 21,732
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DEJL0IOHCB7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,140
Calibration 2     211,533
Calibration 3     211,558
ssj_ops@calibrated=211,546
100% 99.7% 211,546 210,930
90% 89.0% 190,391 188,338
80% 80.8% 169,236 170,942
70% 70.4% 148,082 148,840
60% 59.7% 126,927 126,340
50% 50.1% 105,773 106,025
40% 40.1% 84,618 84,745
30% 29.9% 63,464 63,156
20% 19.9% 42,309 42,169
10% 10.1% 21,155 21,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DEJL0IOHCB7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     218,145
Calibration 2     219,049
Calibration 3     218,025
ssj_ops@calibrated=218,537
100% 99.8% 218,537 218,025
90% 89.8% 196,683 196,261
80% 80.0% 174,830 174,936
70% 69.3% 152,976 151,487
60% 60.9% 131,122 133,135
50% 49.6% 109,269 108,340
40% 39.9% 87,415 87,259
30% 30.2% 65,561 65,974
20% 20.0% 43,707 43,636
10% 10.2% 21,854 22,345
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DEJL0IOHCB7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,824
Calibration 2     213,333
Calibration 3     212,976
ssj_ops@calibrated=213,155
100% 99.1% 213,155 211,300
90% 90.1% 191,839 192,033
80% 80.1% 170,524 170,675
70% 69.2% 149,208 147,580
60% 60.7% 127,893 129,311
50% 49.7% 106,577 105,839
40% 39.9% 85,262 85,143
30% 29.9% 63,946 63,805
20% 19.8% 42,631 42,214
10% 9.8% 21,315 20,897
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

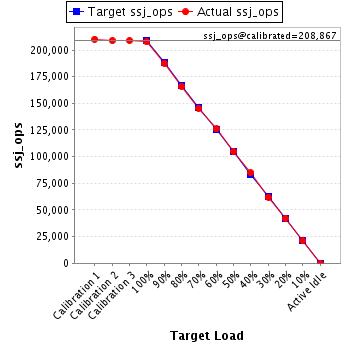

JVM 'WIN-DEJL0IOHCB7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,185
Calibration 2     208,855
Calibration 3     208,878
ssj_ops@calibrated=208,867
100% 99.4% 208,867 207,603
90% 89.8% 187,980 187,564
80% 79.5% 167,093 166,110
70% 69.6% 146,207 145,398
60% 60.3% 125,320 125,935
50% 50.3% 104,433 104,970
40% 40.6% 83,547 84,781
30% 29.7% 62,660 61,997
20% 20.1% 41,773 41,919
10% 10.1% 20,887 21,009
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DEJL0IOHCB7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,663
Calibration 2     212,697
Calibration 3     212,838
ssj_ops@calibrated=212,767
100% 99.5% 212,767 211,619
90% 90.0% 191,491 191,501
80% 79.5% 170,214 169,190
70% 70.1% 148,937 149,095
60% 59.3% 127,660 126,186
50% 50.4% 106,384 107,236
40% 40.0% 85,107 85,008
30% 29.6% 63,830 63,083
20% 20.2% 42,553 42,994
10% 9.9% 21,277 21,001
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DEJL0IOHCB7.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,193
Calibration 2     211,658
Calibration 3     212,018
ssj_ops@calibrated=211,838
100% 99.7% 211,838 211,129
90% 89.8% 190,654 190,155
80% 80.2% 169,471 169,880
70% 69.9% 148,287 148,078
60% 59.3% 127,103 125,514
50% 50.0% 105,919 105,815
40% 39.8% 84,735 84,358
30% 30.3% 63,551 64,086
20% 20.0% 42,368 42,373
10% 10.1% 21,184 21,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DEJL0IOHCB7.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,663
Calibration 2     212,997
Calibration 3     212,399
ssj_ops@calibrated=212,698
100% 99.4% 212,698 211,501
90% 90.5% 191,429 192,394
80% 79.5% 170,159 169,152
70% 70.2% 148,889 149,261
60% 60.4% 127,619 128,443
50% 49.8% 106,349 106,019
40% 40.1% 85,079 85,307
30% 30.3% 63,810 64,491
20% 20.0% 42,540 42,494
10% 10.2% 21,270 21,669
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
