SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL785 G6 (2.1 GHz, AMD Opteron 8425 HE) | SPECpower_ssj2008 = 1,297 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Cupertino, CA, USA | Test Date: | Aug 17, 2009 |
| Hardware Availability: | Oct-2009 | Software Availability: | Oct-2009 | Publication: | Sep 14, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

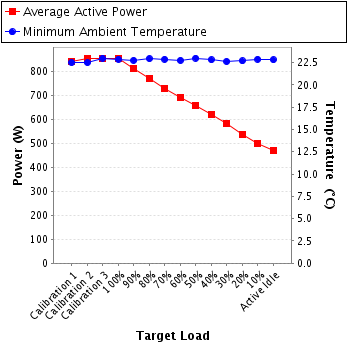

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 843 | 22.5 |
| Calibration 2 | 852 | 22.5 |
| Calibration 3 | 854 | 23.0 |
| 100% | 852 | 22.9 |
| 90% | 811 | 22.8 |
| 80% | 770 | 22.9 |
| 70% | 728 | 22.9 |
| 60% | 692 | 22.8 |
| 50% | 655 | 23.0 |
| 40% | 619 | 22.8 |
| 30% | 582 | 22.6 |
| 20% | 537 | 22.7 |
| 10% | 501 | 22.9 |
| Active Idle | 468 | 22.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91FB02050 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Instrument Calibration Service |
| Calibration Label: | 67961 |
| Date of Calibration: | 02-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-b98694b5 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | OS Supplied |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of center of SUT main intake |

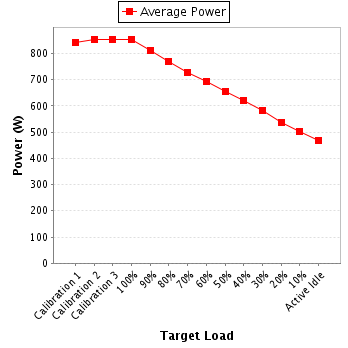

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300.0 | 4.31 | 5.0 | 0.962 | 843 | 0.3% |
| Calibration 2 | 203 | 300.0 | 4.35 | 5.0 | 0.962 | 852 | 0.3% |
| Calibration 3 | 203 | 300.0 | 4.37 | 5.0 | 0.963 | 854 | 0.3% |
| 100% | 203 | 300.0 | 4.36 | 5.0 | 0.963 | 852 | 0.3% |
| 90% | 203 | 300.0 | 4.16 | 5.0 | 0.960 | 811 | 0.3% |
| 80% | 203 | 300.0 | 3.96 | 5.0 | 0.957 | 770 | 0.4% |
| 70% | 203 | 300.0 | 3.76 | 5.0 | 0.954 | 728 | 0.4% |
| 60% | 204 | 300.0 | 3.57 | 5.0 | 0.950 | 692 | 0.4% |
| 50% | 205 | 300.0 | 3.39 | 5.0 | 0.946 | 655 | 0.4% |
| 40% | 205 | 300.0 | 3.21 | 5.0 | 0.942 | 619 | 0.4% |
| 30% | 205 | 300.0 | 3.03 | 5.0 | 0.937 | 582 | 0.4% |
| 20% | 205 | 300.0 | 2.82 | 5.0 | 0.931 | 537 | 0.5% |
| 10% | 205 | 300.0 | 2.65 | 5.0 | 0.925 | 501 | 0.5% |
| Active Idle | 205 | 300.0 | 2.50 | 5.0 | 0.918 | 468 | 0.5% |
