SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R720 | SPECpower_ssj2008 = 810 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, R.O.C. | Test Date: | Nov 14, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Sep-2008 | Publication: | Dec 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

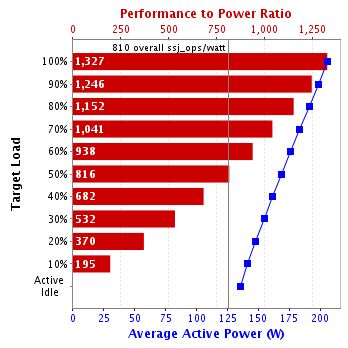

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.4% | 273,032 | 206 | 1,327 |
| 90% | 90.1% | 247,546 | 199 | 1,246 |
| 80% | 80.2% | 220,390 | 191 | 1,152 |
| 70% | 69.5% | 190,940 | 183 | 1,041 |
| 60% | 60.1% | 165,117 | 176 | 938 |
| 50% | 50.1% | 137,624 | 169 | 816 |
| 40% | 40.1% | 110,203 | 162 | 682 |
| 30% | 30.0% | 82,336 | 155 | 532 |
| 20% | 19.9% | 54,789 | 148 | 370 |
| 10% | 10.0% | 27,465 | 141 | 195 |
| Active Idle | 0 | 135 | 0 | |
| ∑ssj_ops / ∑power = | 810 | |||
| Set Identifier: | sut |
| Set Description: | Altos R720 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Altos R720 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5430 |
| CPU Characteristics: | 2.66 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 2667 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4 GB |
| Memory Details: | DDR2-667 CL5 FBDIMM; slots 1, 5 populated |
| Power Supply Quantity and Rating (W): | 1 x 750 |
| Power Supply Details: | DELTA DPS-750EB Redundant Power Supply |
| Disk Drive: | 1 x Seagate ST3160815AS 160GB 7200 RPM SATA |
| Disk Controller: | onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x onboard Intel PRO/1000 gigabit network interface controller with Intel I/O Acceleration Technology |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Processor Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1600m -Xmx1600m -Xns1300m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=256k |
| JVM Affinity: | start /affinity [03, 0C, 30, C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Altos G330 Mk2 |
| CPU Description: | Intel Core 2 Duo E6850 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-06-BCC-159-01 |
| Date of Calibration: | 16-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 206 | 24.2 |
| 90% | 199 | 24.1 |
| 80% | 191 | 24.0 |
| 70% | 183 | 23.9 |
| 60% | 176 | 23.8 |
| 50% | 169 | 23.8 |
| 40% | 162 | 23.7 |
| 30% | 155 | 23.6 |
| 20% | 148 | 23.6 |
| 10% | 141 | 23.6 |
| Active Idle | 135 | 23.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 23.5 | 52 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 272,850 | ||
| Calibration 2 | 275,317 | ||
| Calibration 3 | 274,135 | ||
| ssj_ops@calibrated=274,726 | |||
| 100% | 99.4% | 274,726 | 273,032 |
| 90% | 90.1% | 247,254 | 247,546 |
| 80% | 80.2% | 219,781 | 220,390 |
| 70% | 69.5% | 192,308 | 190,940 |
| 60% | 60.1% | 164,836 | 165,117 |
| 50% | 50.1% | 137,363 | 137,624 |
| 40% | 40.1% | 109,890 | 110,203 |
| 30% | 30.0% | 82,418 | 82,336 |
| 20% | 19.9% | 54,945 | 54,789 |
| 10% | 10.0% | 27,473 | 27,465 |
| Active Idle | 0 | 0 | |
