SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R720 | SPECpower_ssj2008 = 810 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, R.O.C. | Test Date: | Nov 14, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Sep-2008 | Publication: | Dec 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

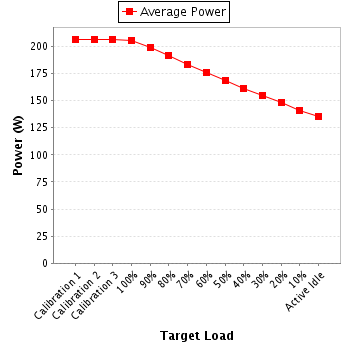

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 207 | 24.3 |
| Calibration 2 | 207 | 24.3 |
| Calibration 3 | 206 | 24.2 |
| 100% | 206 | 24.2 |
| 90% | 199 | 24.1 |
| 80% | 191 | 24.0 |
| 70% | 183 | 23.9 |
| 60% | 176 | 23.8 |
| 50% | 169 | 23.8 |
| 40% | 162 | 23.7 |
| 30% | 155 | 23.6 |
| 20% | 148 | 23.6 |
| 10% | 141 | 23.6 |
| Active Idle | 135 | 23.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-06-BCC-159-01 |
| Date of Calibration: | 16-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300V | 1.05 | 2A | 0.935 | 207 | -- |
| Calibration 2 | 210 | 300V | 1.05 | 2A | 0.936 | 207 | -- |
| Calibration 3 | 210 | 300V | 1.05 | 2A | 0.936 | 206 | -- |
| 100% | 210 | 300V | 1.05 | 2A | 0.935 | 206 | -- |
| 90% | 210 | 300V | 1.02 | 2A | 0.931 | 199 | -- |
| 80% | 210 | 300V | 0.982 | 2A | 0.927 | 191 | -- |
| 70% | 211 | 300V | 0.943 | 2A | 0.921 | 183 | -- |
| 60% | 212 | 300V | 0.907 | 2A | 0.916 | 176 | -- |
| 50% | 212 | 300V | 0.872 | 2A | 0.911 | 169 | -- |
| 40% | 213 | 300V | 0.839 | 2A | 0.906 | 162 | -- |
| 30% | 213 | 300V | 0.806 | 2A | 0.901 | 155 | -- |
| 20% | 213 | 300V | 0.774 | 2A | 0.896 | 148 | -- |
| 10% | 213 | 300V | 0.742 | 2A | 0.892 | 141 | -- |
| Active Idle | 214 | 300V | 0.714 | 2A | 0.887 | 135 | -- |
