SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R720 | ssj_ops@100% = 273,032 ssj_ops@100% per JVM = 68,258 |
||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, R.O.C. | Test Date: | Nov 14, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Sep-2008 | Publication: | Dec 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 272,850 | ||
| Calibration 2 | 275,317 | ||
| Calibration 3 | 274,135 | ||
| ssj_ops@calibrated=274,726 | |||
| 100% | 99.4% | 274,726 | 273,032 |
| 90% | 90.1% | 247,254 | 247,546 |
| 80% | 80.2% | 219,781 | 220,390 |
| 70% | 69.5% | 192,308 | 190,940 |
| 60% | 60.1% | 164,836 | 165,117 |
| 50% | 50.1% | 137,363 | 137,624 |
| 40% | 40.1% | 109,890 | 110,203 |
| 30% | 30.0% | 82,418 | 82,336 |
| 20% | 19.9% | 54,945 | 54,789 |
| 10% | 10.0% | 27,473 | 27,465 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Altos R720 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Altos R720 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5430 |
| CPU Characteristics: | 2.66 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 2667 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4 GB |
| Memory Details: | DDR2-667 CL5 FBDIMM; slots 1, 5 populated |
| Power Supply Quantity and Rating (W): | 1 x 750 |
| Power Supply Details: | DELTA DPS-750EB Redundant Power Supply |
| Disk Drive: | 1 x Seagate ST3160815AS 160GB 7200 RPM SATA |
| Disk Controller: | onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x onboard Intel PRO/1000 gigabit network interface controller with Intel I/O Acceleration Technology |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Processor Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1600m -Xmx1600m -Xns1300m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=256k |
| JVM Affinity: | start /affinity [03, 0C, 30, C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 68,051 |
| 0001.002 | 68,399 |
| 0001.003 | 68,343 |
| 0001.004 | 68,239 |
| ssj_ops@100% | 273,032 |
| ssj_ops@100% per JVM | 68,258 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 68,525 | ||
| Calibration 2 | 69,173 | ||
| Calibration 3 | 68,699 | ||
| ssj_ops@calibrated=68,936 | |||
| 100% | 98.7% | 68,936 | 68,051 |
| 90% | 89.3% | 62,043 | 61,532 |
| 80% | 80.2% | 55,149 | 55,315 |
| 70% | 70.3% | 48,255 | 48,467 |
| 60% | 60.1% | 41,362 | 41,414 |
| 50% | 49.8% | 34,468 | 34,341 |
| 40% | 40.8% | 27,574 | 28,115 |
| 30% | 29.4% | 20,681 | 20,287 |
| 20% | 19.9% | 13,787 | 13,737 |
| 10% | 10.4% | 6,894 | 7,142 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 68,407 | ||
| Calibration 2 | 68,968 | ||
| Calibration 3 | 68,825 | ||
| ssj_ops@calibrated=68,897 | |||
| 100% | 99.3% | 68,897 | 68,399 |
| 90% | 90.3% | 62,007 | 62,223 |
| 80% | 80.3% | 55,117 | 55,304 |
| 70% | 68.9% | 48,228 | 47,491 |
| 60% | 60.2% | 41,338 | 41,443 |
| 50% | 50.2% | 34,448 | 34,614 |
| 40% | 39.3% | 27,559 | 27,100 |
| 30% | 30.0% | 20,669 | 20,662 |
| 20% | 19.7% | 13,779 | 13,559 |
| 10% | 9.8% | 6,890 | 6,771 |
| Active Idle | 0 | 0 | |

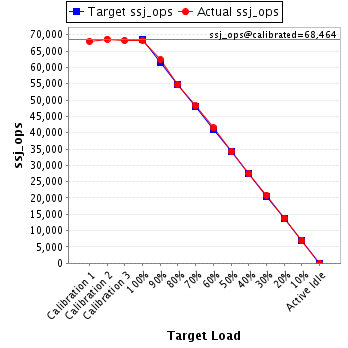

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 68,047 | ||
| Calibration 2 | 68,658 | ||
| Calibration 3 | 68,269 | ||
| ssj_ops@calibrated=68,464 | |||
| 100% | 99.8% | 68,464 | 68,343 |
| 90% | 91.1% | 61,617 | 62,341 |
| 80% | 80.1% | 54,771 | 54,826 |
| 70% | 70.5% | 47,925 | 48,256 |
| 60% | 60.6% | 41,078 | 41,494 |
| 50% | 50.1% | 34,232 | 34,330 |
| 40% | 40.1% | 27,385 | 27,472 |
| 30% | 30.4% | 20,539 | 20,830 |
| 20% | 20.2% | 13,693 | 13,849 |
| 10% | 10.1% | 6,846 | 6,942 |
| Active Idle | 0 | 0 | |

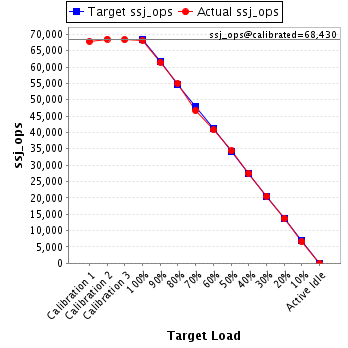

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 67,871 | ||
| Calibration 2 | 68,519 | ||
| Calibration 3 | 68,341 | ||
| ssj_ops@calibrated=68,430 | |||
| 100% | 99.7% | 68,430 | 68,239 |
| 90% | 89.8% | 61,587 | 61,450 |
| 80% | 80.3% | 54,744 | 54,945 |
| 70% | 68.3% | 47,901 | 46,726 |
| 60% | 59.6% | 41,058 | 40,765 |
| 50% | 50.2% | 34,215 | 34,339 |
| 40% | 40.2% | 27,372 | 27,516 |
| 30% | 30.0% | 20,529 | 20,556 |
| 20% | 19.9% | 13,686 | 13,644 |
| 10% | 9.7% | 6,843 | 6,612 |
| Active Idle | 0 | 0 | |
