SPECpower_ssj2008

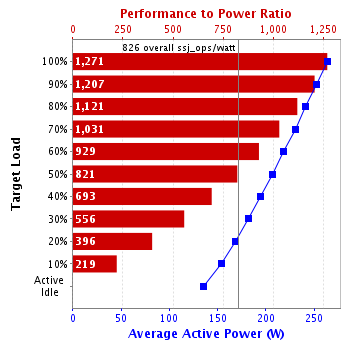

Tyan Computer Corp. Transport GT24 (B2912-E)				SPECpower_ssj2008 = 826 overall ssj_ops/watt
Test Sponsor:	Advanced Micro Devices	SPEC License #:	49	Hardware Availability:	Dec-2008
Tested By:	Advanced Micro Devices	Test Location:	Austin, TX, USA	Software Availability:	May-2008
System Source:	Single Supplier	Test Date:	Oct 16, 2008	Publication:	Nov 5, 2008

Hardware
Hardware Vendor:	Tyan Computer Corp.
Model:	Transport GT24 (B2912-E)
CPU Name:	AMD Opteron 2384
CPU Characteristics:	Quad-Core, 2.7GHz, 6MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	8 cores, 2 chips, 4 cores/chip
Hardware Threads / Core:	1
CPU(s) Orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	4 x 4096 MB
Memory Details:	DDR2-800 CL5; slots A1/B1 populated for each socket
Power Supply Quantity and Rating (W):	1 x 500
Power Supply Details:	Delta Electronics DPS-500GB
Disk Drive:	1 x 500GB WD5000ABPS SATAII
Disk Controller:	Integrated NFP3600 SATA controller
# and type of Network Interface Cards (NICs) Installed:	2 x Integrated Marvell 88E1121 Gigabit NIC
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	KVM
Mouse:	KVM
Monitor:	KVM
Optical Drives:	Yes
Other Hardware:	None

Software
Power Management:	Enabled (Balanced profile enabled)
Operating System (OS):	Microsoft Windows Server 2008 Enterprise
OS Version:	SP1 (64-bit)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle JRockit(build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options:	-Xms3700m -Xns3200m -Xmx3700m -XXaggressive -XXthroughputCompaction -XlargePages -XXlazyUnlocking -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=4k,preferred=512k
JVM Affinity:	start /affinity [0F,F0]
JVM Instances:	2
JVM Initial Heap (MB):	3700
JVM Maximum Heap (MB):	3700
JVM Address Bits:	64
Benchmark Version:	SPECpower_ssj2008 1.1.3
Director Location:	Controller
Other Software:	None

Each JVM instance was affinitized to a socket.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
BIOS settings changed from default

Software
Operating System (OS):	Microsoft Windows XP Professional SP2 32-bit
JVM Vendor:	SUN Microsystems Inc.
JVM Version:	Java(TM) SE Runtime Environment (build 1.6.0_05-b13)
CCS Version:	1.1.3

Power Analyzer
Hardware Vendor:	Yokogawa Electric International Pte. Ltd.
Model:	WT210
Serial Number:	91GB53037
Connectivity:	RS-232
Input Connection:	Default
Voltage Range:	150
Current Range:	5
Calibration Institute:	NIST
Accredited by:	Yokogawa Electric International Pte. Ltd.
Calibration Label:	08-0220
Date of Calibration:	04-Feb-2008
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.3.2-e0c92e60

None

Target Load	Electrical Data				Environmental Data
Target Load	Average Voltage (V)	Average Current (A)	Average Power Factor	Average Power (W)	Minimum Ambient Temperature (°C)
100%	117	2.27	0.991	264	21.5
90%	118	2.18	0.989	253	21.5
80%	118	2.08	0.987	241	21.4
70%	118	1.99	0.986	230	21.4
60%	118	1.89	0.984	218	21.4
50%	118	1.79	0.982	206	21.4
40%	118	1.68	0.980	194	21.4
30%	118	1.58	0.978	182	21.4
20%	118	1.47	0.976	169	21.3
10%	117	1.35	0.974	154	21.3
Active Idle	118	1.19	0.969	136	21.3

Line Standard	Average Power Factor	Minimum Temperature (°C)	Elevation (m)
120V / 60 Hz / 1 phase / 2 wires	0.981	21.3	168

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SPECpower_ssj2008 1.1.3, May 15, 2008]
