SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Tyan Computer Corp. Transport GT24 (B2912-E) | ssj_ops@100% = 335,116 ssj_ops@100% per JVM = 167,558 |
||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX, USA | Test Date: | Oct 16, 2008 |
| Hardware Availability: | Dec-2008 | Software Availability: | May-2008 | Publication: | Nov 5, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 340,912 | ||
| Calibration 2 | 340,862 | ||
| Calibration 3 | 336,998 | ||
| ssj_ops@calibrated=338,930 | |||
| 100% | 98.9% | 338,930 | 335,116 |
| 90% | 90.1% | 305,037 | 305,350 |
| 80% | 79.8% | 271,144 | 270,407 |
| 70% | 70.1% | 237,251 | 237,455 |
| 60% | 59.9% | 203,358 | 203,008 |
| 50% | 50.0% | 169,465 | 169,547 |
| 40% | 39.7% | 135,572 | 134,510 |
| 30% | 29.8% | 101,679 | 101,042 |
| 20% | 19.7% | 67,786 | 66,895 |
| 10% | 10.0% | 33,893 | 33,763 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Transport GT24 (B2912-E) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Tyan Computer Corp. |
| Model: | Transport GT24 (B2912-E) |
| Form Factor: | -- |
| CPU Name: | AMD Opteron 2384 |
| CPU Characteristics: | Quad-Core, 2.7GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2700 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | DDR2-800 CL5; slots A1/B1 populated for each socket |
| Power Supply Quantity and Rating (W): | 1 x 500 |
| Power Supply Details: | Delta Electronics DPS-500GB |
| Disk Drive: | 1 x 500GB WD5000ABPS SATAII |
| Disk Controller: | Integrated NFP3600 SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Marvell 88E1121 Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Balanced profile enabled) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise |
| OS Version: | SP1 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3700m -Xns3200m -Xmx3700m -XXaggressive -XXthroughputCompaction -XlargePages -XXlazyUnlocking -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=4k,preferred=512k |
| JVM Affinity: | start /affinity [0F,F0] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3700 |
| JVM Maximum Heap (MB): | 3700 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |

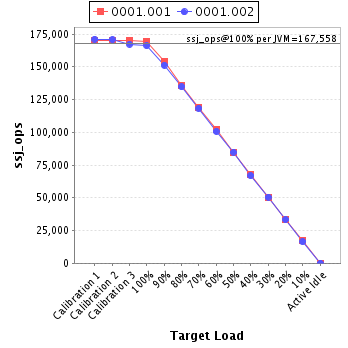

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 169,037 |
| 0001.002 | 166,079 |
| ssj_ops@100% | 335,116 |
| ssj_ops@100% per JVM | 167,558 |

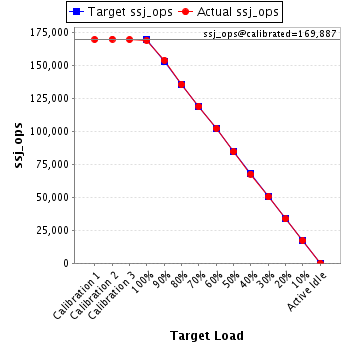

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 169,818 | ||
| Calibration 2 | 170,071 | ||
| Calibration 3 | 169,703 | ||
| ssj_ops@calibrated=169,887 | |||
| 100% | 99.5% | 169,887 | 169,037 |
| 90% | 90.7% | 152,898 | 154,056 |
| 80% | 79.9% | 135,910 | 135,743 |
| 70% | 70.1% | 118,921 | 119,069 |
| 60% | 60.2% | 101,932 | 102,333 |
| 50% | 49.8% | 84,943 | 84,603 |
| 40% | 39.9% | 67,955 | 67,731 |
| 30% | 29.7% | 50,966 | 50,521 |
| 20% | 19.8% | 33,977 | 33,606 |
| 10% | 10.1% | 16,989 | 17,236 |
| Active Idle | 0 | 0 | |

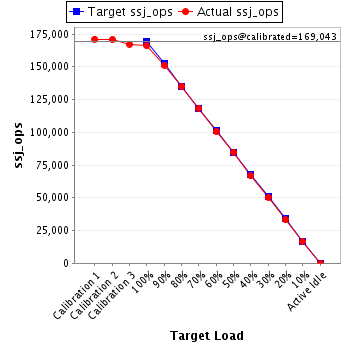

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 171,093 | ||
| Calibration 2 | 170,791 | ||
| Calibration 3 | 167,295 | ||
| ssj_ops@calibrated=169,043 | |||
| 100% | 98.2% | 169,043 | 166,079 |
| 90% | 89.5% | 152,139 | 151,294 |
| 80% | 79.7% | 135,235 | 134,664 |
| 70% | 70.0% | 118,330 | 118,387 |
| 60% | 59.6% | 101,426 | 100,675 |
| 50% | 50.2% | 84,522 | 84,944 |
| 40% | 39.5% | 67,617 | 66,779 |
| 30% | 29.9% | 50,713 | 50,521 |
| 20% | 19.7% | 33,809 | 33,289 |
| 10% | 9.8% | 16,904 | 16,527 |
| Active Idle | 0 | 0 | |
