SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Tyan Computer Corp. Transport GT24 (B2912-E) | SPECpower_ssj2008 = 826 overall ssj_ops/watt | ||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX, USA | Test Date: | Oct 16, 2008 |
| Hardware Availability: | Dec-2008 | Software Availability: | May-2008 | Publication: | Nov 5, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

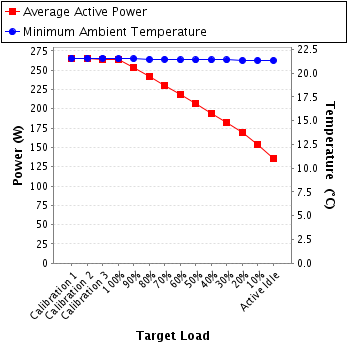

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 265 | 21.6 |
| Calibration 2 | 266 | 21.6 |
| Calibration 3 | 264 | 21.6 |
| 100% | 264 | 21.5 |
| 90% | 253 | 21.5 |
| 80% | 241 | 21.4 |
| 70% | 230 | 21.4 |
| 60% | 218 | 21.4 |
| 50% | 206 | 21.4 |
| 40% | 194 | 21.4 |
| 30% | 182 | 21.4 |
| 20% | 169 | 21.3 |
| 10% | 154 | 21.3 |
| Active Idle | 136 | 21.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB53037 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 08-0220 |
| Date of Calibration: | 04-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.40.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

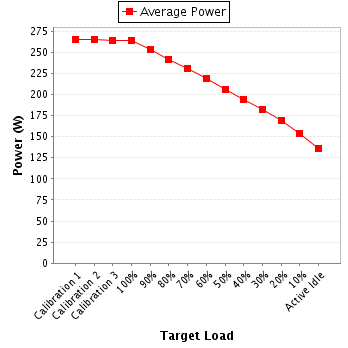

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 117 | 150 | 2.27 | 5 | 0.991 | 265 | -- |
| Calibration 2 | 117 | 150 | 2.28 | 5 | 0.991 | 266 | -- |
| Calibration 3 | 117 | 150 | 2.27 | 5 | 0.991 | 264 | -- |
| 100% | 117 | 150 | 2.27 | 5 | 0.991 | 264 | -- |
| 90% | 118 | 150 | 2.18 | 5 | 0.989 | 253 | -- |
| 80% | 118 | 150 | 2.08 | 5 | 0.987 | 241 | -- |
| 70% | 118 | 150 | 1.99 | 5 | 0.986 | 230 | -- |
| 60% | 118 | 150 | 1.89 | 5 | 0.984 | 218 | -- |
| 50% | 118 | 150 | 1.79 | 5 | 0.982 | 206 | -- |
| 40% | 118 | 150 | 1.68 | 5 | 0.980 | 194 | -- |
| 30% | 118 | 150 | 1.58 | 5 | 0.978 | 182 | -- |
| 20% | 118 | 150 | 1.47 | 5 | 0.976 | 169 | -- |
| 10% | 117 | 150 | 1.35 | 5 | 0.974 | 154 | -- |
| Active Idle | 118 | 150 | 1.19 | 5 | 0.969 | 136 | -- |
