SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) | SPECpower_ssj2008 = 908 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Jun 11, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Apr-2008 | Publication: | Jun 20, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

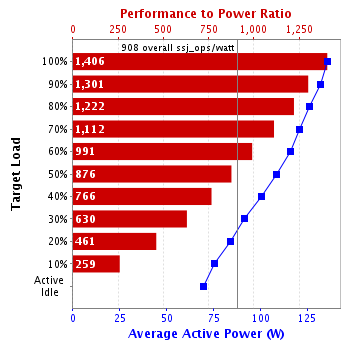

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 190,630 | 136 | 1,406 |
| 90% | 89.9% | 171,924 | 132 | 1,301 |
| 80% | 80.4% | 153,806 | 126 | 1,222 |
| 70% | 70.0% | 133,984 | 121 | 1,112 |
| 60% | 60.2% | 115,099 | 116 | 991 |
| 50% | 49.7% | 95,147 | 109 | 876 |
| 40% | 40.3% | 77,039 | 101 | 766 |
| 30% | 30.2% | 57,764 | 91.7 | 630 |
| 20% | 20.2% | 38,709 | 84.0 | 461 |
| 10% | 10.2% | 19,522 | 75.5 | 259 |
| Active Idle | 0 | 69.5 | 0 | |
| ∑ssj_ops / ∑power = | 908 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | 2.83 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC2-6400E CL6; All slots populated |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | Integrated |
| Disk Drive: | 1 x 160GB 7.2K SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x NC105i |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | Used "start /affinity" with "0x3" and "0xc" CPU masks. |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | HP |
| Model: | ProLiant DL360 G3 |
| CPU Description: | Intel Xeon |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP Professional |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.4.0-90-89592-1.6.0_02-20070928-1715-windows-ia32, compiled mode) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1675 |
| Date of Calibration: | 7-Dec-2007 |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 136 | 21.5 |
| 90% | 132 | 21.5 |
| 80% | 126 | 21.5 |
| 70% | 121 | 21.5 |
| 60% | 116 | 21.5 |
| 50% | 109 | 21.5 |
| 40% | 101 | 21.5 |
| 30% | 91.7 | 21.5 |
| 20% | 84.0 | 21.5 |
| 10% | 75.5 | 21.5 |
| Active Idle | 69.5 | 21.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.5 | 132 |

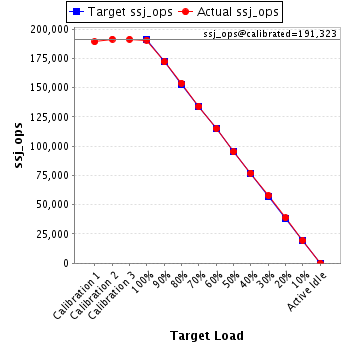

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 189,044 | ||
| Calibration 2 | 191,362 | ||
| Calibration 3 | 191,284 | ||
| ssj_ops@calibrated=191,323 | |||
| 100% | 99.6% | 191,323 | 190,630 |
| 90% | 89.9% | 172,190 | 171,924 |
| 80% | 80.4% | 153,058 | 153,806 |
| 70% | 70.0% | 133,926 | 133,984 |
| 60% | 60.2% | 114,794 | 115,099 |
| 50% | 49.7% | 95,661 | 95,147 |
| 40% | 40.3% | 76,529 | 77,039 |
| 30% | 30.2% | 57,397 | 57,764 |
| 20% | 20.2% | 38,265 | 38,709 |
| 10% | 10.2% | 19,132 | 19,522 |
| Active Idle | 0 | 0 | |
