SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) | ssj_ops@100% = 190,630 ssj_ops@100% per JVM = 95,315 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Jun 11, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Apr-2008 | Publication: | Jun 20, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 189,044 | ||
| Calibration 2 | 191,362 | ||
| Calibration 3 | 191,284 | ||
| ssj_ops@calibrated=191,323 | |||
| 100% | 99.6% | 191,323 | 190,630 |
| 90% | 89.9% | 172,190 | 171,924 |
| 80% | 80.4% | 153,058 | 153,806 |
| 70% | 70.0% | 133,926 | 133,984 |
| 60% | 60.2% | 114,794 | 115,099 |
| 50% | 49.7% | 95,661 | 95,147 |
| 40% | 40.3% | 76,529 | 77,039 |
| 30% | 30.2% | 57,397 | 57,764 |
| 20% | 20.2% | 38,265 | 38,709 |
| 10% | 10.2% | 19,132 | 19,522 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | 2.83 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC2-6400E CL6; All slots populated |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | Integrated |
| Disk Drive: | 1 x 160GB 7.2K SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x NC105i |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | Used "start /affinity" with "0x3" and "0xc" CPU masks. |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 95,006 |
| 0001.002 | 95,624 |
| ssj_ops@100% | 190,630 |
| ssj_ops@100% per JVM | 95,315 |

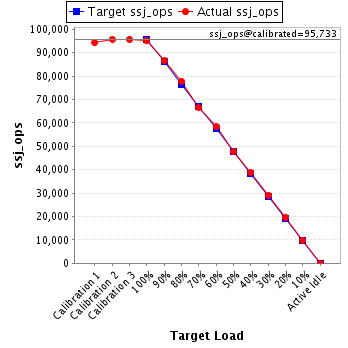

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 94,293 | ||
| Calibration 2 | 95,751 | ||
| Calibration 3 | 95,714 | ||
| ssj_ops@calibrated=95,733 | |||
| 100% | 99.2% | 95,733 | 95,006 |
| 90% | 90.3% | 86,160 | 86,473 |
| 80% | 81.2% | 76,586 | 77,718 |
| 70% | 69.5% | 67,013 | 66,535 |
| 60% | 60.9% | 57,440 | 58,268 |
| 50% | 49.9% | 47,866 | 47,757 |
| 40% | 40.5% | 38,293 | 38,811 |
| 30% | 30.2% | 28,720 | 28,863 |
| 20% | 20.4% | 19,147 | 19,511 |
| 10% | 10.3% | 9,573 | 9,856 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 94,751 | ||
| Calibration 2 | 95,610 | ||
| Calibration 3 | 95,570 | ||
| ssj_ops@calibrated=95,590 | |||
| 100% | 100.0% | 95,590 | 95,624 |
| 90% | 89.4% | 86,031 | 85,451 |
| 80% | 79.6% | 76,472 | 76,088 |
| 70% | 70.6% | 66,913 | 67,449 |
| 60% | 59.5% | 57,354 | 56,831 |
| 50% | 49.6% | 47,795 | 47,390 |
| 40% | 40.0% | 38,236 | 38,228 |
| 30% | 30.2% | 28,677 | 28,900 |
| 20% | 20.1% | 19,118 | 19,198 |
| 10% | 10.1% | 9,559 | 9,666 |
| Active Idle | 0 | 0 | |
