SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL120 G5 (2.83 GHz, Intel Xeon processor X3360) | SPECpower_ssj2008 = 908 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Jun 11, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Apr-2008 | Publication: | Jun 20, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

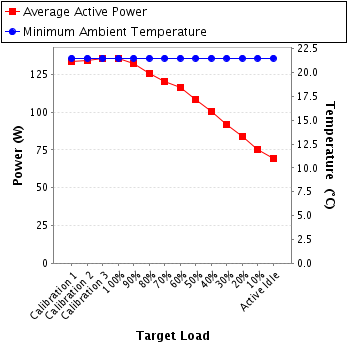

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 134 | 21.5 |
| Calibration 2 | 134 | 21.5 |
| Calibration 3 | 136 | 21.5 |
| 100% | 136 | 21.5 |
| 90% | 132 | 21.5 |
| 80% | 126 | 21.5 |
| 70% | 121 | 21.5 |
| 60% | 116 | 21.5 |
| 50% | 109 | 21.5 |
| 40% | 101 | 21.5 |
| 30% | 91.7 | 21.5 |
| 20% | 84.0 | 21.5 |
| 10% | 75.5 | 21.5 |
| Active Idle | 69.5 | 21.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1675 |
| Date of Calibration: | 7-Dec-2007 |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| Setup Description: | -- |

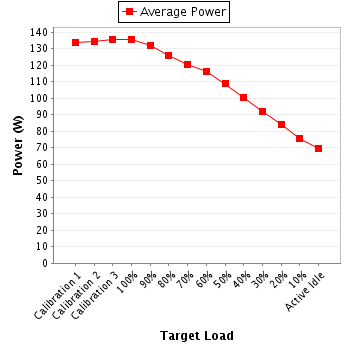

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | -- | 0.760 | -- | 0.872 | 134 | -- |
| Calibration 2 | 202 | -- | 0.762 | -- | 0.872 | 134 | -- |
| Calibration 3 | 202 | -- | 0.772 | -- | 0.872 | 136 | -- |
| 100% | 201 | -- | 0.771 | -- | 0.873 | 136 | -- |
| 90% | 201 | -- | 0.753 | -- | 0.872 | 132 | -- |
| 80% | 201 | -- | 0.719 | -- | 0.871 | 126 | -- |
| 70% | 202 | -- | 0.688 | -- | 0.867 | 121 | -- |
| 60% | 202 | -- | 0.665 | -- | 0.864 | 116 | -- |
| 50% | 202 | -- | 0.624 | -- | 0.862 | 109 | -- |
| 40% | 202 | -- | 0.579 | -- | 0.861 | 101 | -- |
| 30% | 201 | -- | 0.529 | -- | 0.861 | 91.7 | -- |
| 20% | 201 | -- | 0.486 | -- | 0.858 | 84.0 | -- |
| 10% | 201 | -- | 0.440 | -- | 0.853 | 75.5 | -- |
| Active Idle | 201 | -- | 0.406 | -- | 0.851 | 69.5 | -- |
