SPEC CPU2000 Memory Footprint

Click to skip directly to the results:
table icon table bar graph icon graphs

Introduction

The SPEC CPU2000 benchmarks are intended to exercise the CPU itself, the memory hierarcy, and the compilers. How much memory do they actually use?

The data collected here show that SPEC met its goals for memory footprint: most benchmarks are larger than common cache sizes, many are larger than 100MB, and none are larger than 200MB.

The SPEC CPU2000 benchmarks are derived from real applications, and they exercise more of the system than just the CPU chip.

Testbed and methods

Benchmark sizes were measured using:

Resident size (rsz) and virtual size (vsz) were collected using
   ps -o rsz,vsz,command
in a loop with a sleep of 5 seconds between each observation.

Results in table form

In the table that follows, the column num obs indicates the total number of observations, so that number times 5 should roughly equal the times reported at www.spec.org (see above for the exact URLs). The column num unchanged indicates the number of observations that reported the same value prior to the conclusion of the benchmark. Thus a zero in that column indicates that the last observation was different from the second last. The final column contains the word "stable" if the number unchanged is at least 90% of the number of observations; it is intended to indicate a benchmark that grows quickly to its target size and then stays there.

All observations on this web page are expressed in megabytes.

            max     max     num  num
            rsz     vsz     obs  unchanged  stable?
            -----   -----   ---  ---------  -------
gzip        180.0   199.0   181      68
vpr          50.0    53.6   151       6
gcc         154.0   156.0   134       0
mcf         190.0   190.0   232     230     stable
crafty        2.0     2.6   107     106     stable
parser       37.0    66.8   263     254     stable
eon           0.6     1.5   130       0
perlbmk     146.0   158.0   186       0
gap         192.0   194.0   149     148     stable
vortex       72.0    79.4   162       0
bzip2       185.0   199.0   153       6
twolf         3.4     4.0   273       0

wupwise     176.0   177.0   185     181     stable
swim        191.0   192.0   322     320     stable
mgrid        56.0    56.7   281     279     stable
applu       181.0   191.0   371     369     stable
mesa          9.4    23.1   132     131     stable
galgel       63.0   155.0   287      59
art           3.7     4.3   157      37
equake       49.0    49.4   218     216     stable
facerec      16.0    18.5   182     173     stable
ammp         26.0    28.4   277     269     stable
lucas       142.0   143.0   181     179     stable
fma3d       103.0   105.0   268     249     stable
sixtrack     26.0    59.8   148     141     stable
apsi        191.0   192.0   271     270     stable

Results in graphic form

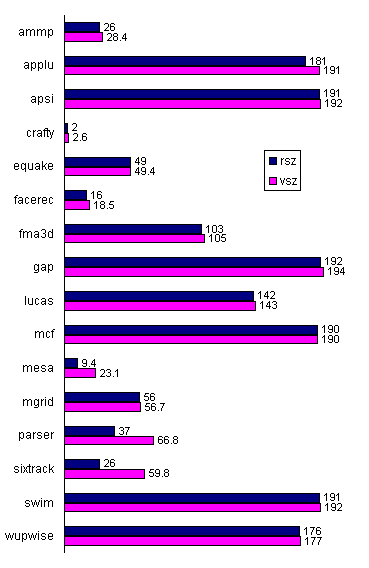

The following benchmarks grow quickly to their target sizes (expressed in megabytes) and then stay there:

ammp, applu, apsi, crafty, equake, facerec, fma3d, gap, lucas, mcf, mesa, mgrid, parser, sixtrack, swim, wupwise

The following benchmarks change size over time:

art bzip2 eon galgel gcc gzip perlbmk twolf vortex vpr

The following benchmarks are shown rescaled:

art RESCALED eon RESCALED twolf RESCALED vpr Rescaled

This page was last updated 29-Aug-2001 3:04 PM.

The results on this page were generated in late 1999 and early 2000 and have been previously presented at SPEC and ACM seminars. At that time, the author worked for Compaq Computer Corporation, whose permission is gratefully acknowledged for the re-publication at the SPEC web site.

The author can be reached at j.henning@computer.org.
