Dell Inc. PowerEdge R7625 SPECpower_ssj2008 = 12,991 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 8, 2026
Hardware Availability: Feb-2023 Software Availability: Jul-2025 Publication: Apr 22, 2026
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 12,616,573 687 18,373
90% 90.0% 11,411,724 654 17,450
80% 80.0% 10,138,456 617 16,443
70% 69.9% 8,866,679 573 15,486
60% 60.0% 7,600,769 520 14,605
50% 50.1% 6,345,009 497 12,768
40% 40.0% 5,071,770 459 11,039
30% 30.0% 3,799,544 409 9,296
20% 20.0% 2,535,308 384 6,611
10% 10.0% 1,266,682 347 3,647
Active Idle 0 215 0
∑ssj_ops / ∑power = 12,991

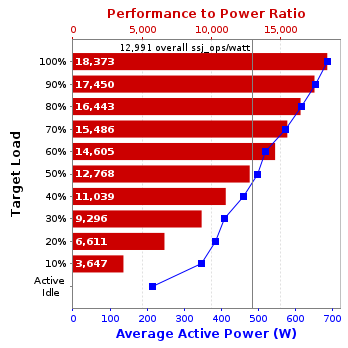

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R7625
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R7625
Form Factor: 2U
CPU Name: AMD EPYC 9354 3.25 GHz
CPU Characteristics: 32 core, 3.25 GHz, 256 MB L3 Cache, Max Boost Clock up to 3.8 GHz
CPU Frequency (MHz): 3250
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 1536
# and size of DIMM: 24 x 64 GB
Memory Details: 64 GB 2Rx4 PC5-4800-R, Slots A1-12, B1-12 populated.
Power Supply Quantity and Rating (W): 2 x 2800
Power Supply Details: 2 x Delta 2800W Titanium Efficiency (DPN - P56GH)
Disk Drive: 4 x 3.84 TB E3.S NVMe (DPN - 6RC59), 2 x 480 GB M.2 NVMe (DPN - 3JC4V)
Disk Controller: Onboard PCIe SSD Backplane, PCIe attached Boot Optimized Storage (BOSS) card
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom 5720 Dual Port 1GbE LOM, 1 x Broadcom 57414 Dual Port 25GbE LOM
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS (see SUT notes)
Operating System (OS): Microsoft Windows Server 2025 Datacenter
OS Version: Version 24H2 (OS Build 26100.1)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.16+12-LTS-247, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-15] /AFFINITY [0xF,0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.15.3
Management Firmware Version: 7.20.80.50 A00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
Minimum Power (Performance per Watt Optimized)
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc
Model: PowerEdge T150
CPU Description: Intel Xeon E-2378, 2.60 GHz
Memory amount (GB): 32
Software
Operating System (OS): Microsoft Windows Server 2022 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Hotspot(TM) Client VM, version 15.0.2+7 (build 15.0.2+7, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: T11733384
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: TesCom
Calibration Label: T126624
Date of Calibration: 13-Aug-2025
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 687 25.6
90% 654 25.6
80% 617 25.6
70% 573 25.6
60% 520 25.6
50% 497 25.6
40% 459 25.6
30% 409 25.6
20% 384 25.6
10% 347 25.6
Active Idle 215 25.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.6 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,898,985
Calibration 2     12,685,220
Calibration 3     12,666,260
ssj_ops@calibrated=12,675,740
100% 99.5% 12,675,740 12,616,573
90% 90.0% 11,408,166 11,411,724
80% 80.0% 10,140,592 10,138,456
70% 69.9% 8,873,018 8,866,679
60% 60.0% 7,605,444 7,600,769
50% 50.1% 6,337,870 6,345,009
40% 40.0% 5,070,296 5,071,770
30% 30.0% 3,802,722 3,799,544
20% 20.0% 2,535,148 2,535,308
10% 10.0% 1,267,574 1,266,682
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
