SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7625 | SPECpower_ssj2008 = 12,991 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jan 8, 2026 |
| Hardware Availability: | Feb-2023 | Software Availability: | Jul-2025 | Publication: | Apr 22, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

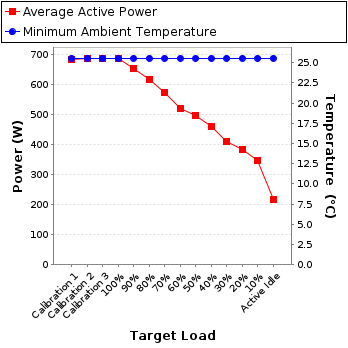

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 683 | 25.6 |
| Calibration 2 | 687 | 25.6 |
| Calibration 3 | 687 | 25.6 |
| 100% | 687 | 25.6 |
| 90% | 654 | 25.6 |
| 80% | 617 | 25.6 |
| 70% | 573 | 25.6 |
| 60% | 520 | 25.6 |
| 50% | 497 | 25.6 |
| 40% | 459 | 25.6 |
| 30% | 409 | 25.6 |
| 20% | 384 | 25.6 |
| 10% | 347 | 25.6 |
| Active Idle | 215 | 25.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | T11733384 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T126624 |
| Date of Calibration: | 13-Aug-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 3.35 | 5.0 | 0.991 | 683 | 0.2% |
| Calibration 2 | 206 | 300.0 | 3.37 | 5.0 | 0.991 | 687 | 0.2% |
| Calibration 3 | 206 | 300.0 | 3.37 | 5.0 | 0.991 | 687 | 0.2% |
| 100% | 206 | 300.0 | 3.37 | 5.0 | 0.991 | 687 | 0.2% |
| 90% | 206 | 300.0 | 3.21 | 5.0 | 0.990 | 654 | 0.2% |
| 80% | 206 | 300.0 | 3.03 | 5.0 | 0.989 | 617 | 0.3% |
| 70% | 206 | 300.0 | 2.82 | 5.0 | 0.986 | 573 | 0.3% |
| 60% | 206 | 300.0 | 2.57 | 5.0 | 0.983 | 520 | 0.3% |
| 50% | 206 | 300.0 | 2.45 | 5.0 | 0.982 | 497 | 0.3% |
| 40% | 206 | 300.0 | 2.28 | 5.0 | 0.979 | 459 | 0.3% |
| 30% | 206 | 300.0 | 2.04 | 5.0 | 0.972 | 409 | 0.3% |
| 20% | 206 | 300.0 | 1.92 | 5.0 | 0.968 | 384 | 0.3% |
| 10% | 206 | 300.0 | 1.75 | 5.0 | 0.960 | 347 | 0.4% |
| Active Idle | 207 | 300.0 | 1.17 | 5.0 | 0.893 | 215 | 0.5% |
