SPECpower_ssj2008

Dell Inc. PowerEdge XR8720t (Intel Xeon 6716P-B)			SPECpower_ssj2008 = 17,889 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	6573	Test Method:	Single Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Feb 25, 2026
Hardware Availability:	Jan-2026	Software Availability:	Nov-2025	Publication:	Mar 24, 2026
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge XR8720t (Intel Xeon 6716P-B)
Form Factor:	2U
CPU Name:	Intel Xeon 6716P-B 2.5 GHz
CPU Characteristics:	40 core, 2.5 GHz, 160 MB L3 Cache, Max Boost Clock up to 3.5 GHz
CPU Frequency (MHz):	2500
CPU(s) Enabled:	40 cores, 1 chip, 40 cores/chip
Hardware Threads:	80 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	64 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	160 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	4 x 32 GB
Memory Details:	32 GB 2Rx4 PC5-6400-R running at 6400MHz Slots A5-8 populated.
Power Supply Quantity and Rating (W):	1 x 1800
Power Supply Details:	1 x 1800W Titanium Efficiency (SKU: 450-BCXB)
Disk Drive:	1 x 480 GB NVMe Gen4 M.2 SSD
Disk Controller:	Integrated PCIe Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel(R) Ethernet Connection E825-C
NICs Enabled in Firmware / OS / Connected:	8/8/2
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT notes)
Operating System (OS):	SUSE Linux Enterprise Server 16.0
OS Version:	6.12.0-160000.5-default
Filesystem:	xfs
JVM Vendor:	Oracle
JVM Version:	Java HotSpot(TM) 64-Bit Server VM(build 17.0.11+7-LTS-207, mixed mode)
JVM Command-line Options:	-server -Xms1024m -Xmx1024m -Xmn800m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 40}
JVM Instances:	40
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	1.0.4
Management Firmware Version:	1.30.05.10 A00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Each JVM instance was bound to 2 logical processors
SPECpower_ssj.props input.load_level.number_warehouses set to 80
The System ROM used for this result contains Intel microcode 0x10002B3 Version for the Intel Xeon processor

Software
Operating System (OS):	Microsoft Windows Server 2022 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Java Development Kit 15.0.2
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310
Serial Number:	T11733387
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	T126625
Date of Calibration:	13-Aug-2025
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.11.3-a7835373-20251015
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

None

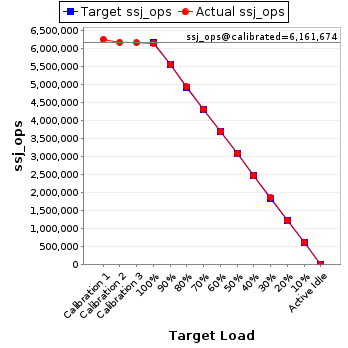

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	283	20.9
90%	264	20.9
80%	220	20.9
70%	195	21.0
60%	175	21.0
50%	157	21.0
40%	143	21.0
30%	130	21.0
20%	119	21.1
10%	107	21.1
Active Idle	104	21.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	20.9	255

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
