SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge XR8720t (Intel Xeon 6716P-B) | SPECpower_ssj2008 = 17,889 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 25, 2026 |
| Hardware Availability: | Jan-2026 | Software Availability: | Nov-2025 | Publication: | Mar 24, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

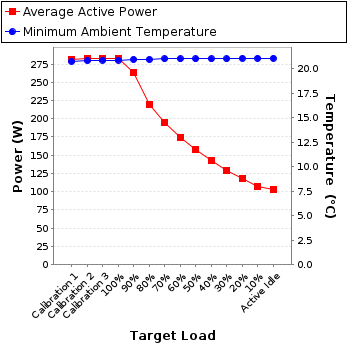

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 281 | 20.8 |
| Calibration 2 | 283 | 20.8 |
| Calibration 3 | 283 | 20.9 |
| 100% | 283 | 20.9 |
| 90% | 264 | 20.9 |
| 80% | 220 | 20.9 |
| 70% | 195 | 21.0 |
| 60% | 175 | 21.0 |
| 50% | 157 | 21.0 |
| 40% | 143 | 21.0 |
| 30% | 130 | 21.0 |
| 20% | 119 | 21.1 |
| 10% | 107 | 21.1 |
| Active Idle | 104 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | T11733387 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T126625 |
| Date of Calibration: | 13-Aug-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.3-a7835373-20251015 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 1.38 | 2.0 | 0.984 | 281 | 0.2% |
| Calibration 2 | 207 | 300.0 | 1.39 | 2.0 | 0.984 | 283 | 0.2% |
| Calibration 3 | 206 | 300.0 | 1.39 | 2.0 | 0.984 | 283 | 0.2% |
| 100% | 206 | 300.0 | 1.39 | 2.0 | 0.984 | 283 | 0.2% |
| 90% | 206 | 300.0 | 1.30 | 2.0 | 0.982 | 264 | 0.3% |
| 80% | 207 | 300.0 | 1.10 | 2.0 | 0.972 | 220 | 0.3% |
| 70% | 207 | 300.0 | 0.975 | 2.0 | 0.966 | 195 | 0.3% |
| 60% | 207 | 300.0 | 0.881 | 2.0 | 0.960 | 175 | 0.3% |
| 50% | 207 | 300.0 | 0.797 | 2.0 | 0.956 | 157 | 0.3% |
| 40% | 207 | 300.0 | 0.725 | 2.0 | 0.950 | 143 | 0.4% |
| 30% | 207 | 300.0 | 0.667 | 2.0 | 0.941 | 130 | 0.4% |
| 20% | 207 | 300.0 | 0.617 | 2.0 | 0.929 | 119 | 0.4% |
| 10% | 207 | 300.0 | 0.570 | 2.0 | 0.911 | 107 | 0.4% |
| Active Idle | 207 | 300.0 | 0.553 | 2.0 | 0.906 | 104 | 0.5% |
