Compal Electronics, Inc. SD223-8A ssj_ops@100% = 14,298,403
ssj_ops@100% per JVM = 223,413
Test Sponsor: Compal Electronics, Inc. SPEC License #: 6857 Test Method: Multi Node
Tested By: Compal Electronics, Inc. Test Location: Neihu Dist, Taipei City, Taiwan (R.O.C.) Test Date: Feb 10, 2026
Hardware Availability: May-2025 Software Availability: Sep-2025 Publication: Mar 17, 2026
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,414,668
Calibration 2     14,327,357
Calibration 3     14,356,304
ssj_ops@calibrated=14,341,831
100% 99.7% 14,341,831 14,298,403
90% 90.1% 12,907,648 12,919,117
80% 80.0% 11,473,465 11,476,272
70% 70.0% 10,039,282 10,035,500
60% 60.1% 8,605,098 8,614,529
50% 50.0% 7,170,915 7,168,459
40% 40.0% 5,736,732 5,736,765
30% 30.0% 4,302,549 4,298,810
20% 20.0% 2,868,366 2,867,975
10% 10.0% 1,434,183 1,435,391
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Compal Electronics, Inc.
Model: SD223-8A
Form Factor: 2U
CPU Name: AMD EPYC 9355 3.55 GHz
CPU Characteristics: 32 core, 3.55GHz, 256MB L3 Cache
CPU Frequency (MHz): 3550
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 48 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared/4 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: [16GB 1Rx8 PC5-4800; slots A0, B0, C0, D0, E0, F0, G0 ,H0 ,I0 ,J0 ,K0 ,L0 populated]
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960G M.2 NVMe Express SSD, Micron p/n MTFDKBA960TFR-1BC1ZABDA
Disk Controller: Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed: 1 x PCIE i350 4-port, LR-LINK p/n LREC9714HT-PCIE
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Preferred plans in OS: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter Evaluation
OS Version: Version 21H2 (OS Build 20348.4648)
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: "17.0.12" 2024-07-16 LTS Java(TM) SE Runtime Environment (build 17.0.12+8-LTS-286) Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1450m -Xms1650m -Xmx1650m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=0 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 -XX:+UseBiasedLocking -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8 -XX:+UseNUMA
JVM Affinity: start /NODE [0-15] /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 2.12.0
Management Firmware Version: 1.29.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE2.001 225,879
NODE2.002 226,431
NODE2.003 219,241
NODE2.004 220,938
NODE2.005 221,516
NODE2.006 224,236
NODE2.007 222,774
NODE2.008 225,986
NODE2.009 222,250
NODE2.010 227,601
NODE2.011 224,440
NODE2.012 226,256
NODE2.013 223,690
NODE2.014 224,800
NODE2.015 224,899
NODE2.016 219,858
NODE2.017 230,879
NODE2.018 225,413
NODE2.019 224,369
NODE2.020 226,079
NODE2.021 220,508
NODE2.022 222,912
NODE2.023 223,122
NODE2.024 222,449
NODE2.025 223,640
NODE2.026 224,322
NODE2.027 218,991
NODE2.028 215,421
NODE2.029 221,347
NODE2.030 225,479
NODE2.031 220,178
NODE2.032 219,705
NODE2.033 215,449
NODE2.034 224,384
NODE2.035 226,053
NODE2.036 223,252
NODE2.037 218,836
NODE2.038 221,788
NODE2.039 232,830
NODE2.040 223,553
NODE2.041 223,558
NODE2.042 227,385
NODE2.043 222,133
NODE2.044 224,168
NODE2.045 221,312
NODE2.046 222,566
NODE2.047 230,145
NODE2.048 226,543
NODE2.049 227,984
NODE2.050 222,726
NODE2.051 223,706
NODE2.052 222,762
NODE2.053 226,715
NODE2.054 223,506
NODE2.055 222,365
NODE2.056 219,175
NODE2.057 220,236
NODE2.058 229,591
NODE2.059 226,302
NODE2.060 220,753
NODE2.061 218,481
NODE2.062 220,734
NODE2.063 226,078
NODE2.064 217,722
ssj_ops@100% 14,298,403
ssj_ops@100% per JVM 223,413

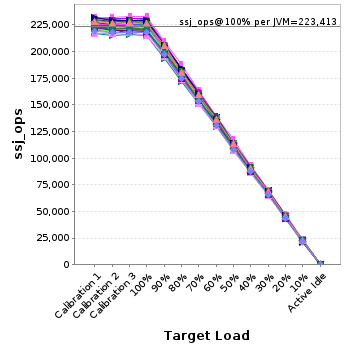

Graph of per-instance results
JVM 'NODE2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,881
Calibration 2     226,070
Calibration 3     226,489
ssj_ops@calibrated=226,280
100% 99.8% 226,280 225,879
90% 90.1% 203,652 203,893
80% 80.0% 181,024 181,004
70% 69.8% 158,396 158,056
60% 60.3% 135,768 136,423
50% 50.2% 113,140 113,508
40% 39.8% 90,512 90,090
30% 29.8% 67,884 67,472
20% 19.8% 45,256 44,769
10% 10.1% 22,628 22,768
Active Idle   0 0

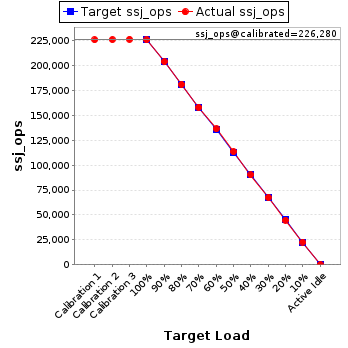

Graph of results
JVM 'NODE2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,510
Calibration 2     228,144
Calibration 3     227,813
ssj_ops@calibrated=227,979
100% 99.3% 227,979 226,431
90% 90.4% 205,181 206,118
80% 79.6% 182,383 181,560
70% 70.2% 159,585 159,936
60% 60.3% 136,787 137,411
50% 49.6% 113,989 113,177
40% 39.9% 91,191 91,066
30% 30.0% 68,394 68,297
20% 19.7% 45,596 44,939
10% 10.1% 22,798 23,033
Active Idle   0 0
Graph of results
JVM 'NODE2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,051
Calibration 2     220,538
Calibration 3     221,845
ssj_ops@calibrated=221,191
100% 99.1% 221,191 219,241
90% 90.6% 199,072 200,474
80% 79.8% 176,953 176,477
70% 70.2% 154,834 155,294
60% 60.6% 132,715 133,941
50% 50.0% 110,596 110,643
40% 40.1% 88,477 88,763
30% 29.6% 66,357 65,437
20% 20.3% 44,238 44,876
10% 10.0% 22,119 22,053
Active Idle   0 0
Graph of results
JVM 'NODE2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,901
Calibration 2     221,153
Calibration 3     221,473
ssj_ops@calibrated=221,313
100% 99.8% 221,313 220,938
90% 90.4% 199,182 199,968
80% 80.1% 177,050 177,179
70% 70.1% 154,919 155,124
60% 59.9% 132,788 132,571
50% 50.1% 110,656 110,953
40% 39.8% 88,525 88,157
30% 29.7% 66,394 65,703
20% 20.2% 44,263 44,786
10% 10.0% 22,131 22,195
Active Idle   0 0
Graph of results
JVM 'NODE2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,129
Calibration 2     222,265
Calibration 3     223,355
ssj_ops@calibrated=222,810
100% 99.4% 222,810 221,516
90% 90.5% 200,529 201,666
80% 79.9% 178,248 178,019
70% 69.2% 155,967 154,279
60% 60.2% 133,686 134,233
50% 49.5% 111,405 110,195
40% 40.0% 89,124 89,152
30% 30.4% 66,843 67,669
20% 20.0% 44,562 44,455
10% 10.1% 22,281 22,482
Active Idle   0 0
Graph of results
JVM 'NODE2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,941
Calibration 2     225,008
Calibration 3     224,084
ssj_ops@calibrated=224,546
100% 99.9% 224,546 224,236
90% 90.5% 202,091 203,293
80% 80.2% 179,637 180,124
70% 70.3% 157,182 157,853
60% 60.3% 134,728 135,408
50% 50.1% 112,273 112,414
40% 40.5% 89,818 90,844
30% 30.4% 67,364 68,163
20% 19.9% 44,909 44,657
10% 10.2% 22,455 22,931
Active Idle   0 0
Graph of results
JVM 'NODE2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,284
Calibration 2     223,207
Calibration 3     224,060
ssj_ops@calibrated=223,634
100% 99.6% 223,634 222,774
90% 90.5% 201,270 202,290
80% 80.0% 178,907 178,992
70% 69.8% 156,543 156,138
60% 60.2% 134,180 134,550
50% 50.3% 111,817 112,585
40% 40.1% 89,453 89,586
30% 30.1% 67,090 67,260
20% 19.9% 44,727 44,499
10% 9.9% 22,363 22,232
Active Idle   0 0
Graph of results
JVM 'NODE2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,010
Calibration 2     225,768
Calibration 3     226,328
ssj_ops@calibrated=226,048
100% 100.0% 226,048 225,986
90% 89.4% 203,443 202,101
80% 80.0% 180,838 180,814
70% 69.5% 158,233 157,187
60% 60.2% 135,629 136,076
50% 50.4% 113,024 114,036
40% 40.2% 90,419 90,890
30% 30.0% 67,814 67,874
20% 20.2% 45,210 45,650
10% 10.3% 22,605 23,324
Active Idle   0 0
Graph of results
JVM 'NODE2.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,191
Calibration 2     222,583
Calibration 3     221,959
ssj_ops@calibrated=222,271
100% 100.0% 222,271 222,250
90% 90.4% 200,044 200,903
80% 79.6% 177,817 176,935
70% 70.0% 155,590 155,573
60% 60.1% 133,363 133,522
50% 49.9% 111,136 110,902
40% 39.6% 88,908 88,040
30% 29.5% 66,681 65,665
20% 19.9% 44,454 44,319
10% 9.8% 22,227 21,803
Active Idle   0 0
Graph of results
JVM 'NODE2.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,043
Calibration 2     228,205
Calibration 3     227,474
ssj_ops@calibrated=227,839
100% 99.9% 227,839 227,601
90% 89.9% 205,055 204,716
80% 80.1% 182,271 182,553
70% 69.9% 159,488 159,171
60% 60.5% 136,704 137,757
50% 49.8% 113,920 113,542
40% 40.1% 91,136 91,285
30% 30.5% 68,352 69,593
20% 20.2% 45,568 46,104
10% 10.1% 22,784 22,924
Active Idle   0 0
Graph of results
JVM 'NODE2.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,767
Calibration 2     225,086
Calibration 3     224,628
ssj_ops@calibrated=224,857
100% 99.8% 224,857 224,440
90% 90.8% 202,371 204,179
80% 79.4% 179,886 178,645
70% 68.9% 157,400 154,993
60% 60.0% 134,914 134,855
50% 50.6% 112,428 113,848
40% 39.9% 89,943 89,757
30% 29.8% 67,457 67,064
20% 20.2% 44,971 45,412
10% 10.0% 22,486 22,503
Active Idle   0 0

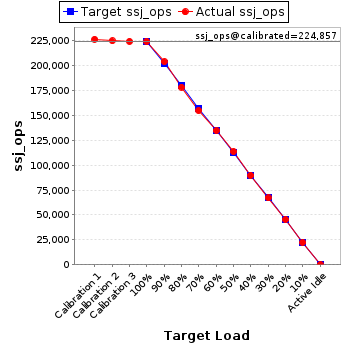

Graph of results
JVM 'NODE2.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,176
Calibration 2     225,808
Calibration 3     226,195
ssj_ops@calibrated=226,002
100% 100.1% 226,002 226,256
90% 90.1% 203,401 203,557
80% 80.2% 180,801 181,176
70% 69.5% 158,201 157,157
60% 59.4% 135,601 134,337
50% 50.4% 113,001 113,841
40% 39.8% 90,401 89,951
30% 30.1% 67,800 67,982
20% 20.1% 45,200 45,528
10% 10.0% 22,600 22,529
Active Idle   0 0
Graph of results
JVM 'NODE2.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,103
Calibration 2     224,280
Calibration 3     224,236
ssj_ops@calibrated=224,258
100% 99.7% 224,258 223,690
90% 90.8% 201,832 203,687
80% 80.2% 179,406 179,772
70% 70.1% 156,980 157,259
60% 59.9% 134,555 134,328
50% 49.9% 112,129 111,795
40% 39.8% 89,703 89,178
30% 29.6% 67,277 66,354
20% 20.0% 44,852 44,946
10% 9.9% 22,426 22,278
Active Idle   0 0
Graph of results
JVM 'NODE2.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,908
Calibration 2     225,220
Calibration 3     225,767
ssj_ops@calibrated=225,493
100% 99.7% 225,493 224,800
90% 89.6% 202,944 201,986
80% 79.6% 180,395 179,436
70% 69.8% 157,845 157,437
60% 60.5% 135,296 136,441
50% 50.1% 112,747 112,896
40% 40.5% 90,197 91,269
30% 29.8% 67,648 67,174
20% 20.0% 45,099 45,117
10% 10.0% 22,549 22,543
Active Idle   0 0
Graph of results
JVM 'NODE2.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,463
Calibration 2     224,456
Calibration 3     224,614
ssj_ops@calibrated=224,535
100% 100.2% 224,535 224,899
90% 90.4% 202,081 202,930
80% 80.6% 179,628 181,061
70% 70.3% 157,174 157,789
60% 59.6% 134,721 133,802
50% 50.2% 112,267 112,690
40% 40.0% 89,814 89,904
30% 30.2% 67,360 67,806
20% 20.1% 44,907 45,196
10% 9.8% 22,453 22,083
Active Idle   0 0
Graph of results
JVM 'NODE2.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,862
Calibration 2     220,597
Calibration 3     220,853
ssj_ops@calibrated=220,725
100% 99.6% 220,725 219,858
90% 90.1% 198,653 198,851
80% 79.9% 176,580 176,414
70% 69.6% 154,508 153,545
60% 60.2% 132,435 132,801
50% 50.2% 110,363 110,798
40% 39.7% 88,290 87,647
30% 29.8% 66,218 65,805
20% 20.0% 44,145 44,048
10% 9.8% 22,073 21,620
Active Idle   0 0
Graph of results

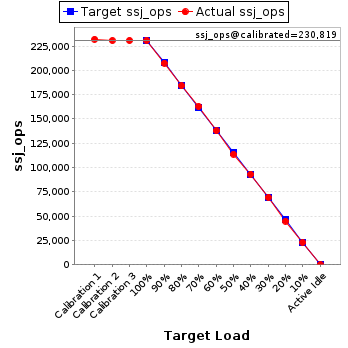

JVM 'NODE2.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,061
Calibration 2     230,757
Calibration 3     230,881
ssj_ops@calibrated=230,819
100% 100.0% 230,819 230,879
90% 89.9% 207,737 207,468
80% 79.7% 184,655 184,076
70% 70.6% 161,573 162,969
60% 59.7% 138,491 137,860
50% 49.3% 115,409 113,799
40% 40.4% 92,327 93,137
30% 30.0% 69,246 69,280
20% 19.4% 46,164 44,846
10% 10.0% 23,082 23,036
Active Idle   0 0
Graph of results
JVM 'NODE2.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,189
Calibration 2     225,232
Calibration 3     225,951
ssj_ops@calibrated=225,592
100% 99.9% 225,592 225,413
90% 89.1% 203,033 201,085
80% 80.3% 180,474 181,097
70% 70.3% 157,914 158,569
60% 60.1% 135,355 135,521
50% 50.3% 112,796 113,374
40% 39.8% 90,237 89,858
30% 29.9% 67,678 67,535
20% 20.2% 45,118 45,484
10% 9.8% 22,559 22,204
Active Idle   0 0
Graph of results
JVM 'NODE2.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,382
Calibration 2     225,313
Calibration 3     225,864
ssj_ops@calibrated=225,589
100% 99.5% 225,589 224,369
90% 90.5% 203,030 204,181
80% 80.2% 180,471 181,010
70% 69.9% 157,912 157,789
60% 60.0% 135,353 135,399
50% 50.0% 112,794 112,751
40% 40.0% 90,235 90,290
30% 30.0% 67,677 67,599
20% 19.8% 45,118 44,608
10% 10.2% 22,559 22,998
Active Idle   0 0
Graph of results

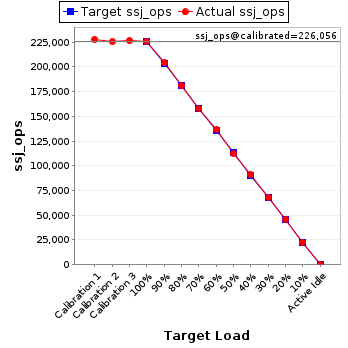

JVM 'NODE2.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,077
Calibration 2     225,676
Calibration 3     226,436
ssj_ops@calibrated=226,056
100% 100.0% 226,056 226,079
90% 90.3% 203,450 204,195
80% 80.0% 180,845 180,833
70% 69.8% 158,239 157,699
60% 60.5% 135,634 136,845
50% 49.7% 113,028 112,412
40% 40.2% 90,422 90,942
30% 30.0% 67,817 67,858
20% 20.3% 45,211 45,882
10% 9.9% 22,606 22,482
Active Idle   0 0
Graph of results
JVM 'NODE2.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,908
Calibration 2     220,708
Calibration 3     220,530
ssj_ops@calibrated=220,619
100% 99.9% 220,619 220,508
90% 89.9% 198,557 198,238
80% 80.1% 176,495 176,713
70% 70.0% 154,433 154,536
60% 60.0% 132,371 132,366
50% 49.9% 110,309 110,176
40% 39.9% 88,248 87,936
30% 30.0% 66,186 66,144
20% 19.9% 44,124 43,904
10% 10.2% 22,062 22,611
Active Idle   0 0
Graph of results
JVM 'NODE2.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,731
Calibration 2     224,654
Calibration 3     224,575
ssj_ops@calibrated=224,615
100% 99.2% 224,615 222,912
90% 90.0% 202,153 202,171
80% 80.5% 179,692 180,857
70% 70.4% 157,230 158,218
60% 60.0% 134,769 134,866
50% 50.1% 112,307 112,571
40% 40.1% 89,846 89,970
30% 29.7% 67,384 66,759
20% 19.9% 44,923 44,782
10% 10.2% 22,461 22,849
Active Idle   0 0
Graph of results
JVM 'NODE2.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,199
Calibration 2     222,927
Calibration 3     224,202
ssj_ops@calibrated=223,564
100% 99.8% 223,564 223,122
90% 89.6% 201,208 200,262
80% 79.7% 178,852 178,268
70% 69.6% 156,495 155,523
60% 60.6% 134,139 135,474
50% 50.0% 111,782 111,736
40% 40.1% 89,426 89,737
30% 30.0% 67,069 66,961
20% 19.9% 44,713 44,470
10% 10.1% 22,356 22,545
Active Idle   0 0
Graph of results
JVM 'NODE2.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,399
Calibration 2     224,213
Calibration 3     223,686
ssj_ops@calibrated=223,950
100% 99.3% 223,950 222,449
90% 90.0% 201,555 201,505
80% 79.9% 179,160 179,010
70% 69.7% 156,765 156,127
60% 59.8% 134,370 133,859
50% 50.1% 111,975 112,282
40% 40.0% 89,580 89,609
30% 29.9% 67,185 67,004
20% 19.8% 44,790 44,253
10% 9.8% 22,395 22,004
Active Idle   0 0
Graph of results
JVM 'NODE2.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,068
Calibration 2     224,358
Calibration 3     224,387
ssj_ops@calibrated=224,372
100% 99.7% 224,372 223,640
90% 89.4% 201,935 200,483
80% 80.3% 179,498 180,125
70% 69.4% 157,061 155,681
60% 59.8% 134,623 134,185
50% 50.4% 112,186 113,057
40% 40.3% 89,749 90,524
30% 29.9% 67,312 67,065
20% 20.0% 44,874 44,871
10% 9.9% 22,437 22,136
Active Idle   0 0
Graph of results

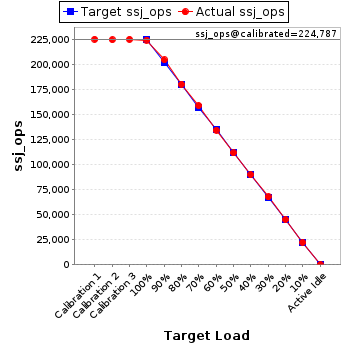

JVM 'NODE2.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,116
Calibration 2     224,529
Calibration 3     225,044
ssj_ops@calibrated=224,787
100% 99.8% 224,787 224,322
90% 91.0% 202,308 204,502
80% 80.2% 179,829 180,229
70% 70.7% 157,351 158,834
60% 59.8% 134,872 134,310
50% 49.6% 112,393 111,524
40% 39.9% 89,915 89,674
30% 30.1% 67,436 67,631
20% 20.0% 44,957 45,008
10% 9.9% 22,479 22,336
Active Idle   0 0
Graph of results

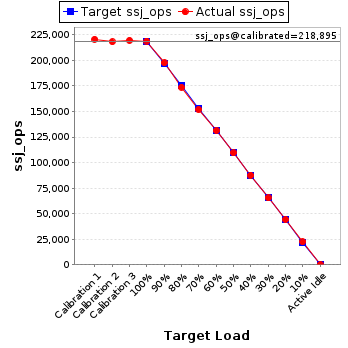

JVM 'NODE2.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,728
Calibration 2     218,160
Calibration 3     219,631
ssj_ops@calibrated=218,895
100% 100.0% 218,895 218,991
90% 90.3% 197,006 197,590
80% 79.4% 175,116 173,784
70% 69.4% 153,227 151,935
60% 60.0% 131,337 131,337
50% 50.0% 109,448 109,377
40% 40.0% 87,558 87,553
30% 29.8% 65,669 65,288
20% 20.2% 43,779 44,211
10% 10.2% 21,890 22,236
Active Idle   0 0
Graph of results
JVM 'NODE2.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,006
Calibration 2     215,085
Calibration 3     216,421
ssj_ops@calibrated=215,753
100% 99.8% 215,753 215,421
90% 89.7% 194,178 193,460
80% 79.8% 172,602 172,161
70% 69.9% 151,027 150,844
60% 60.1% 129,452 129,654
50% 49.8% 107,876 107,353
40% 40.2% 86,301 86,737
30% 30.1% 64,726 64,964
20% 19.9% 43,151 42,907
10% 9.9% 21,575 21,253
Active Idle   0 0
Graph of results
JVM 'NODE2.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,350
Calibration 2     221,890
Calibration 3     222,877
ssj_ops@calibrated=222,384
100% 99.5% 222,384 221,347
90% 89.7% 200,145 199,509
80% 80.8% 177,907 179,627
70% 69.7% 155,669 154,997
60% 60.4% 133,430 134,362
50% 50.6% 111,192 112,495
40% 39.7% 88,953 88,245
30% 30.1% 66,715 66,975
20% 19.8% 44,477 43,982
10% 10.0% 22,238 22,148
Active Idle   0 0
Graph of results
JVM 'NODE2.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,097
Calibration 2     226,011
Calibration 3     225,943
ssj_ops@calibrated=225,977
100% 99.8% 225,977 225,479
90% 90.2% 203,379 203,747
80% 79.8% 180,782 180,322
70% 70.4% 158,184 159,175
60% 60.1% 135,586 135,898
50% 50.0% 112,989 113,060
40% 40.3% 90,391 91,027
30% 29.7% 67,793 67,111
20% 20.1% 45,195 45,422
10% 10.3% 22,598 23,303
Active Idle   0 0
Graph of results
JVM 'NODE2.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,669
Calibration 2     218,167
Calibration 3     221,396
ssj_ops@calibrated=219,781
100% 100.2% 219,781 220,178
90% 90.0% 197,803 197,726
80% 80.9% 175,825 177,784
70% 69.6% 153,847 152,957
60% 59.7% 131,869 131,311
50% 49.7% 109,891 109,281
40% 40.1% 87,913 88,164
30% 29.9% 65,934 65,712
20% 20.0% 43,956 44,048
10% 10.0% 21,978 21,889
Active Idle   0 0
Graph of results
JVM 'NODE2.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,139
Calibration 2     219,857
Calibration 3     219,548
ssj_ops@calibrated=219,703
100% 100.0% 219,703 219,705
90% 90.1% 197,732 197,884
80% 80.7% 175,762 177,206
70% 70.3% 153,792 154,545
60% 59.6% 131,822 131,045
50% 50.0% 109,851 109,803
40% 39.7% 87,881 87,145
30% 29.6% 65,911 64,967
20% 20.1% 43,941 44,086
10% 10.1% 21,970 22,137
Active Idle   0 0
Graph of results
JVM 'NODE2.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,062
Calibration 2     216,625
Calibration 3     217,525
ssj_ops@calibrated=217,075
100% 99.3% 217,075 215,449
90% 90.2% 195,368 195,767
80% 79.9% 173,660 173,461
70% 69.7% 151,953 151,211
60% 60.1% 130,245 130,413
50% 49.6% 108,538 107,564
40% 40.0% 86,830 86,782
30% 30.1% 65,123 65,369
20% 19.9% 43,415 43,165
10% 10.2% 21,708 22,186
Active Idle   0 0
Graph of results
JVM 'NODE2.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,681
Calibration 2     224,975
Calibration 3     224,488
ssj_ops@calibrated=224,731
100% 99.8% 224,731 224,384
90% 89.9% 202,258 202,093
80% 80.3% 179,785 180,434
70% 70.4% 157,312 158,255
60% 60.1% 134,839 135,048
50% 50.4% 112,366 113,188
40% 40.0% 89,893 89,950
30% 29.9% 67,419 67,233
20% 19.9% 44,946 44,642
10% 10.0% 22,473 22,566
Active Idle   0 0
Graph of results
JVM 'NODE2.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,630
Calibration 2     226,149
Calibration 3     226,943
ssj_ops@calibrated=226,546
100% 99.8% 226,546 226,053
90% 90.2% 203,892 204,415
80% 80.5% 181,237 182,375
70% 70.0% 158,582 158,678
60% 60.3% 135,928 136,522
50% 49.7% 113,273 112,647
40% 40.2% 90,619 91,087
30% 30.4% 67,964 68,778
20% 20.1% 45,309 45,432
10% 10.0% 22,655 22,687
Active Idle   0 0
Graph of results
JVM 'NODE2.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,739
Calibration 2     223,636
Calibration 3     224,663
ssj_ops@calibrated=224,150
100% 99.6% 224,150 223,252
90% 90.3% 201,735 202,391
80% 79.8% 179,320 178,938
70% 70.1% 156,905 157,102
60% 59.8% 134,490 133,954
50% 50.4% 112,075 113,065
40% 40.2% 89,660 90,032
30% 29.9% 67,245 67,125
20% 20.2% 44,830 45,352
10% 10.1% 22,415 22,637
Active Idle   0 0
Graph of results
JVM 'NODE2.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     220,268
Calibration 2     219,800
Calibration 3     220,424
ssj_ops@calibrated=220,112
100% 99.4% 220,112 218,836
90% 89.8% 198,101 197,562
80% 79.9% 176,090 175,872
70% 69.5% 154,079 152,886
60% 59.9% 132,067 131,875
50% 49.8% 110,056 109,564
40% 39.7% 88,045 87,420
30% 30.0% 66,034 65,968
20% 20.1% 44,022 44,166
10% 10.0% 22,011 21,977
Active Idle   0 0
Graph of results
JVM 'NODE2.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,177
Calibration 2     223,560
Calibration 3     224,165
ssj_ops@calibrated=223,862
100% 99.1% 223,862 221,788
90% 90.7% 201,476 203,008
80% 80.0% 179,090 179,165
70% 70.1% 156,704 156,958
60% 59.9% 134,317 134,027
50% 50.2% 111,931 112,487
40% 40.3% 89,545 90,275
30% 29.8% 67,159 66,601
20% 20.0% 44,772 44,854
10% 10.1% 22,386 22,637
Active Idle   0 0
Graph of results
JVM 'NODE2.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,800
Calibration 2     232,014
Calibration 3     233,007
ssj_ops@calibrated=232,511
100% 100.1% 232,511 232,830
90% 90.2% 209,259 209,778
80% 80.6% 186,008 187,481
70% 70.4% 162,757 163,644
60% 59.9% 139,506 139,193
50% 50.3% 116,255 117,057
40% 39.9% 93,004 92,835
30% 30.0% 69,753 69,786
20% 20.1% 46,502 46,638
10% 10.0% 23,251 23,257
Active Idle   0 0
Graph of results
JVM 'NODE2.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,882
Calibration 2     225,836
Calibration 3     226,025
ssj_ops@calibrated=225,931
100% 98.9% 225,931 223,553
90% 89.5% 203,338 202,201
80% 79.8% 180,745 180,231
70% 69.6% 158,152 157,216
60% 60.1% 135,559 135,773
50% 49.5% 112,965 111,800
40% 39.7% 90,372 89,736
30% 29.9% 67,779 67,651
20% 20.1% 45,186 45,456
10% 9.8% 22,593 22,124
Active Idle   0 0
Graph of results
JVM 'NODE2.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,079
Calibration 2     224,444
Calibration 3     224,233
ssj_ops@calibrated=224,339
100% 99.7% 224,339 223,558
90% 90.4% 201,905 202,863
80% 79.6% 179,471 178,653
70% 70.2% 157,037 157,430
60% 60.5% 134,603 135,800
50% 50.2% 112,169 112,691
40% 40.3% 89,736 90,386
30% 29.5% 67,302 66,242
20% 20.0% 44,868 44,815
10% 10.1% 22,434 22,586
Active Idle   0 0
Graph of results
JVM 'NODE2.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,390
Calibration 2     227,961
Calibration 3     227,167
ssj_ops@calibrated=227,564
100% 99.9% 227,564 227,385
90% 90.4% 204,807 205,613
80% 80.1% 182,051 182,320
70% 70.3% 159,295 160,060
60% 60.1% 136,538 136,786
50% 50.2% 113,782 114,165
40% 39.7% 91,025 90,379
30% 30.2% 68,269 68,773
20% 20.1% 45,513 45,698
10% 10.2% 22,756 23,174
Active Idle   0 0
Graph of results
JVM 'NODE2.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,598
Calibration 2     222,452
Calibration 3     222,503
ssj_ops@calibrated=222,477
100% 99.8% 222,477 222,133
90% 90.1% 200,230 200,520
80% 79.6% 177,982 177,057
70% 70.3% 155,734 156,350
60% 60.0% 133,486 133,529
50% 50.2% 111,239 111,636
40% 40.0% 88,991 89,023
30% 29.8% 66,743 66,220
20% 20.2% 44,495 45,018
10% 9.9% 22,248 21,991
Active Idle   0 0
Graph of results
JVM 'NODE2.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,855
Calibration 2     224,017
Calibration 3     225,876
ssj_ops@calibrated=224,947
100% 99.7% 224,947 224,168
90% 90.4% 202,452 203,248
80% 79.8% 179,957 179,510
70% 70.4% 157,463 158,442
60% 60.4% 134,968 135,976
50% 50.7% 112,473 114,053
40% 39.9% 89,979 89,725
30% 29.9% 67,484 67,291
20% 19.8% 44,989 44,480
10% 9.9% 22,495 22,241
Active Idle   0 0
Graph of results
JVM 'NODE2.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,935
Calibration 2     221,463
Calibration 3     222,704
ssj_ops@calibrated=222,084
100% 99.7% 222,084 221,312
90% 89.7% 199,875 199,240
80% 80.3% 177,667 178,228
70% 69.7% 155,459 154,774
60% 60.7% 133,250 134,770
50% 49.3% 111,042 109,502
40% 40.1% 88,833 88,945
30% 29.9% 66,625 66,494
20% 20.1% 44,417 44,633
10% 10.2% 22,208 22,699
Active Idle   0 0
Graph of results
JVM 'NODE2.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,603
Calibration 2     223,481
Calibration 3     224,123
ssj_ops@calibrated=223,802
100% 99.4% 223,802 222,566
90% 90.1% 201,422 201,557
80% 79.9% 179,042 178,793
70% 69.6% 156,662 155,756
60% 60.1% 134,281 134,465
50% 49.8% 111,901 111,490
40% 39.9% 89,521 89,186
30% 29.7% 67,141 66,399
20% 20.2% 44,760 45,165
10% 9.7% 22,380 21,670
Active Idle   0 0
Graph of results
JVM 'NODE2.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,888
Calibration 2     230,216
Calibration 3     230,670
ssj_ops@calibrated=230,443
100% 99.9% 230,443 230,145
90% 89.6% 207,399 206,551
80% 79.7% 184,354 183,771
70% 70.6% 161,310 162,601
60% 60.0% 138,266 138,298
50% 49.7% 115,221 114,584
40% 39.8% 92,177 91,790
30% 29.9% 69,133 68,959
20% 20.0% 46,089 46,165
10% 9.9% 23,044 22,912
Active Idle   0 0
Graph of results
JVM 'NODE2.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,293
Calibration 2     228,266
Calibration 3     229,092
ssj_ops@calibrated=228,679
100% 99.1% 228,679 226,543
90% 89.5% 205,811 204,669
80% 79.7% 182,943 182,276
70% 70.2% 160,075 160,527
60% 60.3% 137,207 137,797
50% 50.1% 114,339 114,663
40% 39.9% 91,471 91,161
30% 30.0% 68,604 68,594
20% 19.5% 45,736 44,635
10% 10.2% 22,868 23,241
Active Idle   0 0
Graph of results
JVM 'NODE2.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,081
Calibration 2     228,161
Calibration 3     229,289
ssj_ops@calibrated=228,725
100% 99.7% 228,725 227,984
90% 90.0% 205,853 205,749
80% 80.2% 182,980 183,495
70% 69.8% 160,108 159,608
60% 60.8% 137,235 139,047
50% 49.9% 114,363 114,135
40% 39.8% 91,490 90,993
30% 30.1% 68,618 68,861
20% 19.8% 45,745 45,203
10% 9.9% 22,873 22,749
Active Idle   0 0
Graph of results
JVM 'NODE2.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,256
Calibration 2     223,917
Calibration 3     224,815
ssj_ops@calibrated=224,366
100% 99.3% 224,366 222,726
90% 90.9% 201,929 203,886
80% 79.2% 179,493 177,716
70% 70.3% 157,056 157,700
60% 59.4% 134,619 133,382
50% 50.1% 112,183 112,466
40% 40.1% 89,746 89,947
30% 29.8% 67,310 66,935
20% 19.9% 44,873 44,701
10% 10.1% 22,437 22,674
Active Idle   0 0

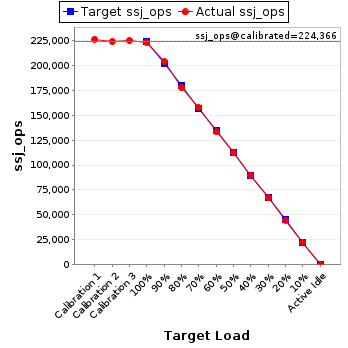

Graph of results
JVM 'NODE2.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,631
Calibration 2     224,736
Calibration 3     224,728
ssj_ops@calibrated=224,732
100% 99.5% 224,732 223,706
90% 89.7% 202,259 201,555
80% 80.6% 179,786 181,157
70% 70.0% 157,312 157,250
60% 59.5% 134,839 133,796
50% 49.6% 112,366 111,451
40% 40.1% 89,893 90,191
30% 30.4% 67,420 68,220
20% 20.1% 44,946 45,229
10% 10.0% 22,473 22,362
Active Idle   0 0
Graph of results
JVM 'NODE2.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,039
Calibration 2     222,842
Calibration 3     223,071
ssj_ops@calibrated=222,957
100% 99.9% 222,957 222,762
90% 90.4% 200,661 201,619
80% 79.5% 178,365 177,329
70% 70.0% 156,070 156,163
60% 60.4% 133,774 134,664
50% 50.0% 111,478 111,405
40% 39.8% 89,183 88,812
30% 29.9% 66,887 66,558
20% 19.8% 44,591 44,226
10% 9.9% 22,296 22,183
Active Idle   0 0
Graph of results
JVM 'NODE2.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,796
Calibration 2     226,398
Calibration 3     226,911
ssj_ops@calibrated=226,655
100% 100.0% 226,655 226,715
90% 90.1% 203,989 204,156
80% 79.5% 181,324 180,079
70% 69.8% 158,658 158,234
60% 59.8% 135,993 135,497
50% 49.4% 113,327 112,013
40% 40.3% 90,662 91,240
30% 29.8% 67,996 67,510
20% 19.9% 45,331 45,065
10% 10.0% 22,665 22,757
Active Idle   0 0
Graph of results
JVM 'NODE2.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,171
Calibration 2     225,660
Calibration 3     225,121
ssj_ops@calibrated=225,390
100% 99.2% 225,390 223,506
90% 90.2% 202,851 203,265
80% 80.5% 180,312 181,445
70% 70.3% 157,773 158,435
60% 60.1% 135,234 135,411
50% 50.1% 112,695 112,821
40% 40.0% 90,156 90,161
30% 30.1% 67,617 67,786
20% 20.1% 45,078 45,215
10% 10.0% 22,539 22,429
Active Idle   0 0
Graph of results
JVM 'NODE2.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,286
Calibration 2     222,778
Calibration 3     223,181
ssj_ops@calibrated=222,979
100% 99.7% 222,979 222,365
90% 89.3% 200,681 199,150
80% 79.7% 178,383 177,732
70% 69.8% 156,086 155,564
60% 59.5% 133,788 132,585
50% 49.8% 111,490 111,154
40% 39.4% 89,192 87,796
30% 30.5% 66,894 68,020
20% 20.1% 44,596 44,740
10% 10.0% 22,298 22,350
Active Idle   0 0
Graph of results
JVM 'NODE2.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,762
Calibration 2     219,659
Calibration 3     219,689
ssj_ops@calibrated=219,674
100% 99.8% 219,674 219,175
90% 89.5% 197,706 196,578
80% 80.1% 175,739 175,987
70% 69.5% 153,772 152,611
60% 60.5% 131,804 132,993
50% 50.1% 109,837 110,107
40% 40.6% 87,870 89,244
30% 30.2% 65,902 66,394
20% 20.0% 43,935 43,947
10% 9.8% 21,967 21,580
Active Idle   0 0
Graph of results
JVM 'NODE2.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,256
Calibration 2     221,365
Calibration 3     221,633
ssj_ops@calibrated=221,499
100% 99.4% 221,499 220,236
90% 89.7% 199,349 198,751
80% 80.4% 177,199 178,070
70% 69.8% 155,049 154,522
60% 60.1% 132,899 133,053
50% 50.2% 110,749 111,106
40% 39.9% 88,600 88,303
30% 29.9% 66,450 66,267
20% 20.2% 44,300 44,825
10% 10.0% 22,150 22,192
Active Idle   0 0
Graph of results
JVM 'NODE2.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,656
Calibration 2     229,090
Calibration 3     229,493
ssj_ops@calibrated=229,291
100% 100.1% 229,291 229,591
90% 89.6% 206,362 205,475
80% 80.4% 183,433 184,280
70% 70.0% 160,504 160,477
60% 59.5% 137,575 136,482
50% 49.7% 114,646 113,875
40% 39.9% 91,717 91,393
30% 30.0% 68,787 68,767
20% 20.2% 45,858 46,257
10% 9.6% 22,929 22,037
Active Idle   0 0
Graph of results
JVM 'NODE2.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,597
Calibration 2     225,847
Calibration 3     227,867
ssj_ops@calibrated=226,857
100% 99.8% 226,857 226,302
90% 90.4% 204,171 205,030
80% 80.1% 181,486 181,719
70% 70.1% 158,800 159,009
60% 59.7% 136,114 135,498
50% 49.8% 113,429 112,888
40% 40.0% 90,743 90,753
30% 30.2% 68,057 68,522
20% 19.8% 45,371 44,833
10% 10.0% 22,686 22,687
Active Idle   0 0
Graph of results
JVM 'NODE2.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,051
Calibration 2     221,376
Calibration 3     221,617
ssj_ops@calibrated=221,496
100% 99.7% 221,496 220,753
90% 89.6% 199,347 198,364
80% 80.3% 177,197 177,843
70% 70.2% 155,047 155,585
60% 59.4% 132,898 131,489
50% 49.2% 110,748 109,066
40% 39.9% 88,599 88,443
30% 30.1% 66,449 66,744
20% 20.0% 44,299 44,247
10% 10.1% 22,150 22,304
Active Idle   0 0
Graph of results
JVM 'NODE2.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,472
Calibration 2     219,962
Calibration 3     219,879
ssj_ops@calibrated=219,920
100% 99.3% 219,920 218,481
90% 89.9% 197,928 197,673
80% 79.6% 175,936 175,150
70% 70.2% 153,944 154,430
60% 60.4% 131,952 132,918
50% 50.4% 109,960 110,733
40% 39.7% 87,968 87,303
30% 30.2% 65,976 66,417
20% 19.8% 43,984 43,628
10% 10.1% 21,992 22,220
Active Idle   0 0
Graph of results
JVM 'NODE2.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,384
Calibration 2     220,493
Calibration 3     221,637
ssj_ops@calibrated=221,065
100% 99.9% 221,065 220,734
90% 89.8% 198,959 198,422
80% 80.3% 176,852 177,481
70% 69.5% 154,746 153,644
60% 60.8% 132,639 134,407
50% 49.9% 110,533 110,420
40% 40.4% 88,426 89,236
30% 29.8% 66,320 65,982
20% 20.1% 44,213 44,363
10% 10.1% 22,107 22,366
Active Idle   0 0
Graph of results
JVM 'NODE2.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,808
Calibration 2     226,751
Calibration 3     227,297
ssj_ops@calibrated=227,024
100% 99.6% 227,024 226,078
90% 90.7% 204,322 205,972
80% 79.5% 181,619 180,481
70% 70.4% 158,917 159,887
60% 59.9% 136,215 135,942
50% 50.0% 113,512 113,486
40% 39.8% 90,810 90,344
30% 30.1% 68,107 68,262
20% 20.1% 45,405 45,611
10% 9.9% 22,702 22,511
Active Idle   0 0
Graph of results
JVM 'NODE2.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,200
Calibration 2     217,503
Calibration 3     217,923
ssj_ops@calibrated=217,713
100% 100.0% 217,713 217,722
90% 90.7% 195,942 197,381
80% 80.1% 174,170 174,485
70% 70.4% 152,399 153,303
60% 59.9% 130,628 130,391
50% 49.7% 108,857 108,302
40% 40.3% 87,085 87,771
30% 30.3% 65,314 65,911
20% 20.0% 43,543 43,503
10% 10.1% 21,771 21,941
Active Idle   0 0
Graph of results
