SPECpower_ssj2008

IEIT Systems Co., Ltd. NF5280M7			SPECpower_ssj2008 = 17,791 overall ssj_ops/watt
Test Sponsor:	IEIT Systems Co., Ltd.	SPEC License #:	3358	Test Method:	Single Node
Tested By:	IEIT Systems Co., Ltd.	Test Location:	JINAN, CHINA	Test Date:	Apr 17, 2024
Hardware Availability:	Apr-2024	Software Availability:	Sep-2023	Publication:	Jun 4, 2024
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	IEIT Systems Co., Ltd.
Model:	NF5280M7
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8592+ Processor 1.90 GHz
CPU Characteristics:	64 core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz):	1900
CPU(s) Enabled:	128 cores, 2 chips, 64 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	128 MB I+D on chip per chip
Tertiary Cache:	320 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	512
# and size of DIMM:	16 x 32768 MB
Memory Details:	16 x SK_32G_DDR5-4800ER_2R8_A20J, IEIT PN:ZMMY1000728;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W):	1 x 1300
Power Supply Details:	1 x 1300w Great Wall Power; G_M_GW-CRPS1300D2W_1300W_1U_P; IEIT PN:V031052000000000
Disk Drive:	1 x 960G PM963_MZQLW960HMJP-00003_NVME;IEIT PN:ZMHD1000265
Disk Controller:	Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel_W_I350-T2V2_RJ_PCI-E4X_1KM
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode enabled in OS
Operating System (OS):	Windows Server 2022 Datacenter
OS Version:	Version 21H2 (OS Build 20348.1970)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
JVM Command-line Options:	-server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE[0-3] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000]
JVM Instances:	128
JVM Initial Heap (MB):	1800
JVM Maximum Heap (MB):	1800
JVM Address Bits:	64
Boot Firmware Version:	06.00.00
Management Firmware Version:	05.02.00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB5030216

none

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
The system ROM used for this result contains Intel microcode version 21000161 for the Intel Xeon Platinum 8592+ processor.

Software
Operating System (OS):	Windows Server 2012
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.9+11-LTS-201), version 17.0.9
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310E
Serial Number:	C3TA11005E
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	J202305312300C-0167
Date of Calibration:	3-Jul-2023
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.11.0-a4047d62-20231205
Setup Description:	Connected to PSU 0

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 256 to detect the full number of available processors on the SUT

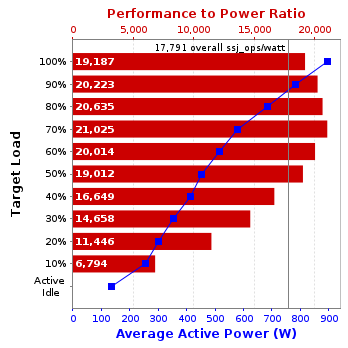

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	895	27.3
90%	782	27.2
80%	683	27.2
70%	579	27.4
60%	517	27.4
50%	453	27.4
40%	414	27.5
30%	353	27.5
20%	301	27.5
10%	254	27.5
Active Idle	134	27.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 1 wire	27.2	57

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
