IEIT Systems Co., Ltd. NF5280M7 SPECpower_ssj2008 = 17,791 overall ssj_ops/watt
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Apr 17, 2024
Hardware Availability: Apr-2024 Software Availability: Sep-2023 Publication: Jun 4, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 910 27.8
Calibration 2 890 27.8
Calibration 3 909 27.8
100% 895 27.3
90% 782 27.2
80% 683 27.2
70% 579 27.4
60% 517 27.4
50% 453 27.4
40% 414 27.5
30% 353 27.5
20% 301 27.5
10% 254 27.5
Active Idle 134 27.6

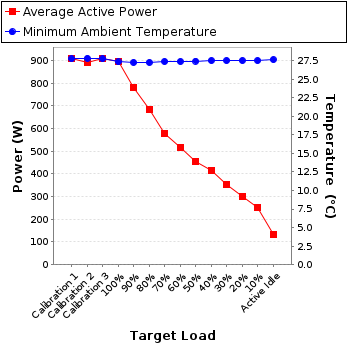

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202305312300C-0167
Date of Calibration: 3-Jul-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 256 to detect the full number of available processors on the SUT
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 300.0 4.00 10.0 0.995 910 0.3%
Calibration 2 228 300.0 3.92 10.0 0.997 890 0.3%
Calibration 3 228 300.0 3.99 10.0 0.997 909 0.3%
100% 228 300.0 3.94 10.0 0.997 895 0.3%
90% 228 300.0 3.46 10.0 0.994 782 0.3%
80% 228 300.0 3.03 10.0 0.994 683 0.3%
70% 228 300.0 2.56 10.0 0.992 579 0.4%
60% 228 300.0 2.30 10.0 0.989 517 0.4%
50% 227 300.0 2.02 10.0 0.987 453 0.5%
40% 228 300.0 1.91 10.0 0.963 414 0.5%
30% 227 300.0 1.58 10.0 0.979 353 0.6%
20% 227 300.0 1.35 5.0 0.978 301 0.4%
10% 227 300.0 1.15 5.0 0.971 254 0.4%
Active Idle 227 300.0 0.646 5.0 0.918 134 0.7%
Power details for pwr1
