Lenovo Global Technology ThinkEdge SE360 V2 SPECpower_ssj2008 = 8,565 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 29, 2024
Hardware Availability: Dec-2023 Software Availability: Jan-2024 Publication: Mar 1, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 1,580,623 139 11,407
90% 88.9% 1,410,299 123 11,479
80% 80.0% 1,268,980 112 11,300
70% 69.9% 1,108,266 104 10,688
60% 59.9% 949,745 94.6 10,038
50% 50.0% 793,115 88.5 8,962
40% 40.0% 635,066 83.0 7,651
30% 30.0% 475,694 78.5 6,061
20% 20.0% 316,541 73.4 4,311
10% 10.1% 159,963 67.7 2,363
Active Idle 0 52.4 0
∑ssj_ops / ∑power = 8,565

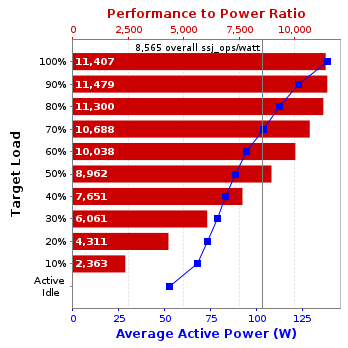

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE360 V2
Form Factor: 2U
CPU Name: Intel(R) Xeon(R) D-2775TE CPU @ 2.00GHz
CPU Characteristics: 16-Core, 2.00GHz, 25MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 25 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 4 x 16 GB
Memory Details: 4 x 16GB 2Rx8 PC4-3200AA-RE2; slots 1 to 4 populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Lenovo P/N:4X27A88607
Disk Drive: 1 x 480GB M.2 SSD P/N:4XB7A83139
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE 4-Port RJ45 Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE [0] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: IYE106R
Management Firmware Version: IYX322X
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR645
CPU Description: 2 x AMD EPYC 7763 2.45GHz
Memory amount (GB): 512
Software
Operating System (OS): Microsoft Windows Server 2019 DataCenter - Version 1809 (OS Build 17763.1217)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 139 23.9
90% 123 24.0
80% 112 24.0
70% 104 24.0
60% 94.6 24.1
50% 88.5 24.3
40% 83.0 24.4
30% 78.5 24.2
20% 73.4 24.1
10% 67.7 23.8
Active Idle 52.4 23.0
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 23.0 43
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,602,424
Calibration 2     1,587,564
Calibration 3     1,585,678
ssj_ops@calibrated=1,586,621
100% 99.6% 1,586,621 1,580,623
90% 88.9% 1,427,959 1,410,299
80% 80.0% 1,269,297 1,268,980
70% 69.9% 1,110,635 1,108,266
60% 59.9% 951,973 949,745
50% 50.0% 793,311 793,115
40% 40.0% 634,648 635,066
30% 30.0% 475,986 475,694
20% 20.0% 317,324 316,541
10% 10.1% 158,662 159,963
Active Idle   0 0

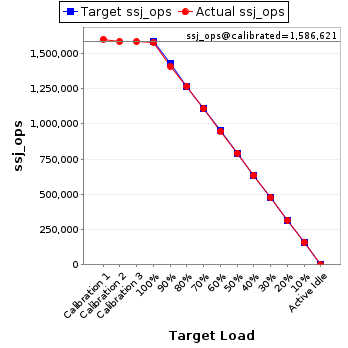

Graph of results
