Lenovo Global Technology ThinkEdge SE360 V2 ssj_ops@100% = 1,580,623
ssj_ops@100% per JVM = 98,789
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 29, 2024
Hardware Availability: Dec-2023 Software Availability: Jan-2024 Publication: Mar 1, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,602,424
Calibration 2     1,587,564
Calibration 3     1,585,678
ssj_ops@calibrated=1,586,621
100% 99.6% 1,586,621 1,580,623
90% 88.9% 1,427,959 1,410,299
80% 80.0% 1,269,297 1,268,980
70% 69.9% 1,110,635 1,108,266
60% 59.9% 951,973 949,745
50% 50.0% 793,311 793,115
40% 40.0% 634,648 635,066
30% 30.0% 475,986 475,694
20% 20.0% 317,324 316,541
10% 10.1% 158,662 159,963
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE360 V2
Form Factor: 2U
CPU Name: Intel(R) Xeon(R) D-2775TE CPU @ 2.00GHz
CPU Characteristics: 16-Core, 2.00GHz, 25MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 25 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 4 x 16 GB
Memory Details: 4 x 16GB 2Rx8 PC4-3200AA-RE2; slots 1 to 4 populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Lenovo P/N:4X27A88607
Disk Drive: 1 x 480GB M.2 SSD P/N:4XB7A83139
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE 4-Port RJ45 Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE [0] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: IYE106R
Management Firmware Version: IYX322X
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-T2IHGMO4ANR.001 96,079
WIN-T2IHGMO4ANR.002 97,735
WIN-T2IHGMO4ANR.003 98,101
WIN-T2IHGMO4ANR.004 99,709
WIN-T2IHGMO4ANR.005 99,787
WIN-T2IHGMO4ANR.006 97,465
WIN-T2IHGMO4ANR.007 100,228
WIN-T2IHGMO4ANR.008 98,328
WIN-T2IHGMO4ANR.009 99,891
WIN-T2IHGMO4ANR.010 99,653
WIN-T2IHGMO4ANR.011 99,653
WIN-T2IHGMO4ANR.012 98,247
WIN-T2IHGMO4ANR.013 99,059
WIN-T2IHGMO4ANR.014 98,285
WIN-T2IHGMO4ANR.015 99,004
WIN-T2IHGMO4ANR.016 99,399
ssj_ops@100% 1,580,623
ssj_ops@100% per JVM 98,789

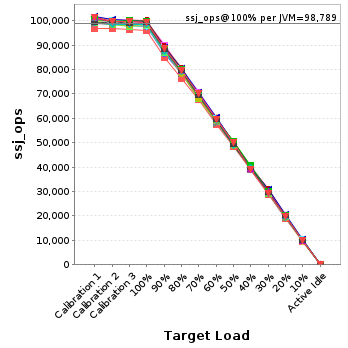

Graph of per-instance results
JVM 'WIN-T2IHGMO4ANR.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,691
Calibration 2     96,723
Calibration 3     96,416
ssj_ops@calibrated=96,569
100% 99.5% 96,569 96,079
90% 87.9% 86,913 84,852
80% 79.0% 77,256 76,286
70% 69.9% 67,599 67,524
60% 59.5% 57,942 57,504
50% 50.2% 48,285 48,446
40% 40.5% 38,628 39,094
30% 29.8% 28,971 28,740
20% 19.6% 19,314 18,937
10% 9.9% 9,657 9,595
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,317
Calibration 2     98,441
Calibration 3     98,008
ssj_ops@calibrated=98,224
100% 99.5% 98,224 97,735
90% 87.9% 88,402 86,381
80% 79.8% 78,579 78,360
70% 69.5% 68,757 68,239
60% 59.6% 58,935 58,534
50% 50.5% 49,112 49,610
40% 39.9% 39,290 39,161
30% 29.6% 29,467 29,116
20% 20.7% 19,645 20,299
10% 10.4% 9,822 10,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,369
Calibration 2     98,231
Calibration 3     97,795
ssj_ops@calibrated=98,013
100% 100.1% 98,013 98,101
90% 88.7% 88,212 86,896
80% 80.8% 78,410 79,153
70% 69.3% 68,609 67,970
60% 59.9% 58,808 58,720
50% 50.2% 49,006 49,159
40% 40.2% 39,205 39,386
30% 29.7% 29,404 29,118
20% 20.1% 19,603 19,749
10% 10.1% 9,801 9,879
Active Idle   0 0

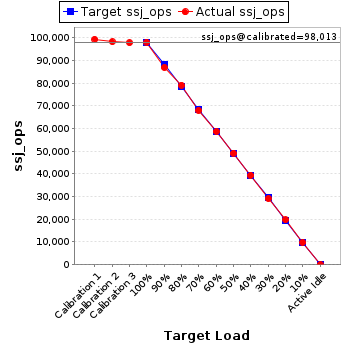

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,856
Calibration 2     99,979
Calibration 3     99,270
ssj_ops@calibrated=99,624
100% 100.1% 99,624 99,709
90% 88.8% 89,662 88,489
80% 80.0% 79,699 79,722
70% 69.4% 69,737 69,142
60% 60.6% 59,775 60,356
50% 49.4% 49,812 49,239
40% 39.6% 39,850 39,459
30% 29.7% 29,887 29,572
20% 19.8% 19,925 19,691
10% 9.7% 9,962 9,632
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,214
Calibration 2     100,463
Calibration 3     100,607
ssj_ops@calibrated=100,535
100% 99.3% 100,535 99,787
90% 89.8% 90,482 90,255
80% 79.4% 80,428 79,817
70% 70.8% 70,375 71,142
60% 59.7% 60,321 60,033
50% 49.8% 50,268 50,070
40% 40.0% 40,214 40,178
30% 30.5% 30,161 30,656
20% 20.0% 20,107 20,110
10% 10.5% 10,054 10,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,300
Calibration 2     100,019
Calibration 3     100,056
ssj_ops@calibrated=100,037
100% 97.4% 100,037 97,465
90% 89.0% 90,034 89,072
80% 80.3% 80,030 80,318
70% 70.3% 70,026 70,290
60% 59.9% 60,022 59,954
50% 50.6% 50,019 50,633
40% 40.1% 40,015 40,125
30% 30.1% 30,011 30,069
20% 20.2% 20,007 20,170
10% 10.4% 10,004 10,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,539
Calibration 2     100,042
Calibration 3     100,459
ssj_ops@calibrated=100,251
100% 100.0% 100,251 100,228
90% 89.0% 90,226 89,261
80% 80.6% 80,200 80,804
70% 69.3% 70,175 69,482
60% 59.9% 60,150 60,069
50% 49.8% 50,125 49,892
40% 40.3% 40,100 40,443
30% 30.1% 30,075 30,220
20% 19.6% 20,050 19,687
10% 10.0% 10,025 10,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,663
Calibration 2     98,269
Calibration 3     98,377
ssj_ops@calibrated=98,323
100% 100.0% 98,323 98,328
90% 88.8% 88,491 87,360
80% 79.7% 78,658 78,318
70% 70.1% 68,826 68,900
60% 58.9% 58,994 57,927
50% 50.0% 49,162 49,200
40% 39.8% 39,329 39,157
30% 30.0% 29,497 29,538
20% 19.5% 19,665 19,180
10% 10.0% 9,832 9,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,437
Calibration 2     99,803
Calibration 3     99,666
ssj_ops@calibrated=99,734
100% 100.2% 99,734 99,891
90% 89.6% 89,761 89,409
80% 80.6% 79,788 80,361
70% 69.4% 69,814 69,265
60% 59.8% 59,841 59,646
50% 50.6% 49,867 50,471
40% 40.5% 39,894 40,413
30% 30.7% 29,920 30,625
20% 20.0% 19,947 19,954
10% 10.0% 9,973 9,970
Active Idle   0 0

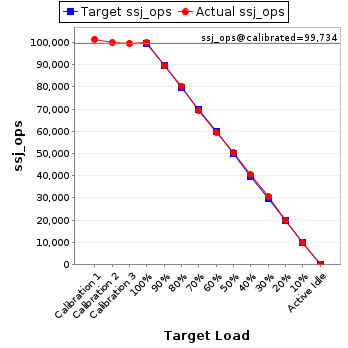

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,738
Calibration 2     100,358
Calibration 3     100,250
ssj_ops@calibrated=100,304
100% 99.4% 100,304 99,653
90% 88.7% 90,274 89,003
80% 80.1% 80,243 80,313
70% 70.2% 70,213 70,439
60% 60.3% 60,182 60,499
50% 49.8% 50,152 50,000
40% 39.7% 40,122 39,859
30% 30.7% 30,091 30,808
20% 20.4% 20,061 20,462
10% 10.5% 10,030 10,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,509
Calibration 2     99,506
Calibration 3     100,170
ssj_ops@calibrated=99,838
100% 99.8% 99,838 99,653
90% 88.9% 89,854 88,767
80% 80.0% 79,871 79,893
70% 69.3% 69,887 69,150
60% 59.7% 59,903 59,623
50% 50.4% 49,919 50,318
40% 40.7% 39,935 40,612
30% 30.2% 29,951 30,138
20% 20.0% 19,968 19,995
10% 10.1% 9,984 10,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,611
Calibration 2     98,556
Calibration 3     98,085
ssj_ops@calibrated=98,321
100% 99.9% 98,321 98,247
90% 89.5% 88,489 87,957
80% 79.6% 78,657 78,274
70% 69.3% 68,825 68,093
60% 59.9% 58,993 58,877
50% 49.5% 49,160 48,632
40% 40.0% 39,328 39,284
30% 29.8% 29,496 29,304
20% 19.6% 19,664 19,299
10% 10.0% 9,832 9,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,840
Calibration 2     99,574
Calibration 3     99,575
ssj_ops@calibrated=99,574
100% 99.5% 99,574 99,059
90% 89.1% 89,617 88,753
80% 80.0% 79,660 79,651
70% 70.1% 69,702 69,817
60% 60.2% 59,745 59,988
50% 50.0% 49,787 49,830
40% 39.6% 39,830 39,476
30% 30.2% 29,872 30,053
20% 20.1% 19,915 19,977
10% 9.8% 9,957 9,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,092
Calibration 2     98,523
Calibration 3     98,567
ssj_ops@calibrated=98,545
100% 99.7% 98,545 98,285
90% 88.6% 88,691 87,327
80% 80.1% 78,836 78,964
70% 70.6% 68,982 69,582
60% 59.9% 59,127 59,066
50% 49.5% 49,273 48,785
40% 40.3% 39,418 39,688
30% 29.4% 29,564 28,997
20% 19.6% 19,709 19,310
10% 9.9% 9,855 9,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,025
Calibration 2     99,615
Calibration 3     98,805
ssj_ops@calibrated=99,210
100% 99.8% 99,210 99,004
90% 88.7% 89,289 87,978
80% 79.9% 79,368 79,267
70% 69.8% 69,447 69,265
60% 59.8% 59,526 59,281
50% 49.3% 49,605 48,913
40% 40.0% 39,684 39,652
30% 29.7% 29,763 29,425
20% 20.0% 19,842 19,795
10% 9.9% 9,921 9,851
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-T2IHGMO4ANR.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,224
Calibration 2     99,460
Calibration 3     99,573
ssj_ops@calibrated=99,517
100% 99.9% 99,517 99,399
90% 89.0% 89,565 88,540
80% 79.9% 79,613 79,478
70% 70.3% 69,662 69,969
60% 60.0% 59,710 59,669
50% 50.2% 49,758 49,917
40% 39.3% 39,807 39,078
30% 29.5% 29,855 29,316
20% 20.0% 19,903 19,928
10% 10.1% 9,952 10,096
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
