SPECpower_ssj2008

Dell Inc. PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz)			SPECpower_ssj2008 = 27,010 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	6573	Test Method:	Multi Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Oct 5, 2023
Hardware Availability:	Dec-2023	Software Availability:	Feb-2022	Publication:	Oct 30, 2023
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
3	3	192	384	288	3	96

Shared Hardware
Enclosure:	C6600
Form Factor:	2U
Power Supply Quantity and Rating (W):	1 x 1800
Power Supply Details:	1800W, Dell p/n H66J1
Network Switch:	None
Network Switch Details:	None
KVM Switch:	None
KVM Switch Details:	None
Other Hardware:	None
Comment:	None

Hardware per Node
Hardware Vendor:	Dell Inc.
Model:	PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz)
Form Factor:	Blade
CPU Name:	AMD EPYC 8534P
CPU Characteristics:	64-Core, 2.30GHz, 128 MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	128 MB I+D on chip per chip, 16 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	96
# and size of DIMM:	6 x 16 GB
Memory Details:	16GB 1Rx8 PC5-4800-R (Slots A1-6 populated)
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x Dell NVMe PE8010 RI M.2 960GB, Dell p/n 21GXV
Disk Controller:	BOSS controller card, Dell p/n 3YGWT
# and type of Network Interface Cards (NICs) Installed:	Onboard 1 x Broadcom NetXtreme Gigabit Ethernet (BCM5720)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Power saver power plan enabled in OS
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
OS Version:	Version 21H2(OS Build 20348.558)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options:	-XX:AllocatePrefetchDistance=256 -XX:SurvivorRatio=8 -XX:TargetSurvivorRatio=99 -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=3900 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity:	start /NODE [0-7] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances:	32
JVM Initial Heap (MB):	2048
JVM Maximum Heap (MB):	2048
JVM Address Bits:	64
Boot Firmware Version:	0.3.3
Management Firmware Version:	7.00.55.00 (Build 10)
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

IDRAC Thermal Set to Minimum Power (Performance per Watt Optimized)

Benchmark started via Windows Remote Desktop Connection
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Balanced mode
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minimum processor state set to 0%.
Maximum processor state set to 100%.
PCIE power management set to maximum power saving.
Using Windows PowerShell, set the following powercfg properties:

Each JVM instance was bound to 4 logical processors
The system ROM used for this result contains AMD AGESA version 1.0.0.9 for the AMD EPYC 8534P processor

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 15.0.2+7-27, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT210
Serial Number:	91J936840
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	T76419
Date of Calibration:	25-Oct-2022
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.10.0-82175bac-20220817
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.

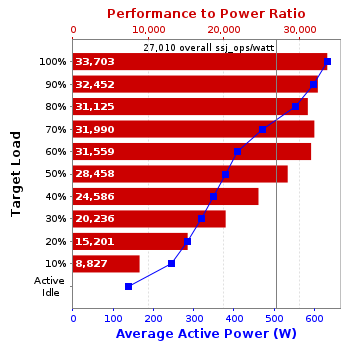

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	632	23.4
90%	597	23.5
80%	554	23.5
70%	471	23.5
60%	409	23.5
50%	378	23.5
40%	350	23.5
30%	319	23.6
20%	284	23.8
10%	244	23.8
Active Idle	138	23.9

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	23.4	255

See the Power/Temperature Details Report for additional details.

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
