SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz) | SPECpower_ssj2008 = 27,010 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Oct 5, 2023 |
| Hardware Availability: | Dec-2023 | Software Availability: | Feb-2022 | Publication: | Oct 30, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

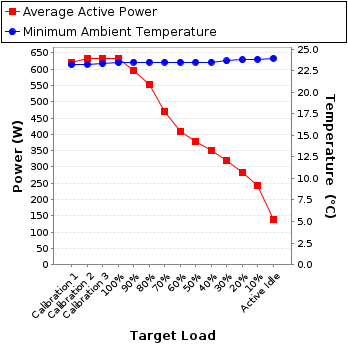

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 619 | 23.2 |
| Calibration 2 | 631 | 23.2 |
| Calibration 3 | 634 | 23.3 |
| 100% | 632 | 23.4 |
| 90% | 597 | 23.5 |
| 80% | 554 | 23.5 |
| 70% | 471 | 23.5 |
| 60% | 409 | 23.5 |
| 50% | 378 | 23.5 |
| 40% | 350 | 23.5 |
| 30% | 319 | 23.6 |
| 20% | 284 | 23.8 |
| 10% | 244 | 23.8 |
| Active Idle | 138 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91J936840 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T76419 |
| Date of Calibration: | 25-Oct-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 3.02 | 5.0 | 0.996 | 619 | 0.4% |
| Calibration 2 | 206 | 300.0 | 3.08 | 5.0 | 0.997 | 631 | 0.4% |
| Calibration 3 | 206 | 300.0 | 3.09 | 5.0 | 0.997 | 634 | 0.4% |
| 100% | 205 | 300.0 | 3.09 | 5.0 | 0.997 | 632 | 0.4% |
| 90% | 206 | 300.0 | 2.92 | 5.0 | 0.995 | 597 | 0.4% |
| 80% | 206 | 300.0 | 2.71 | 5.0 | 0.994 | 554 | 0.4% |
| 70% | 206 | 300.0 | 2.31 | 5.0 | 0.991 | 471 | 0.5% |
| 60% | 206 | 300.0 | 2.01 | 5.0 | 0.988 | 409 | 0.5% |
| 50% | 206 | 300.0 | 1.86 | 2.0 | 0.990 | 378 | 0.3% |
| 40% | 206 | 300.0 | 1.72 | 2.0 | 0.991 | 350 | 0.3% |
| 30% | 206 | 300.0 | 1.56 | 2.0 | 0.991 | 319 | 0.4% |
| 20% | 206 | 300.0 | 1.39 | 2.0 | 0.990 | 284 | 0.4% |
| 10% | 206 | 300.0 | 1.20 | 2.0 | 0.986 | 244 | 0.4% |
| Active Idle | 206 | 300.0 | 0.699 | 2.0 | 0.955 | 138 | 0.6% |
