Dell Inc. PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz) SPECpower_ssj2008 = 24,169 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 11, 2023
Hardware Availability: Dec-2023 Software Availability: Feb-2022 Publication: Sep 27, 2023
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.9% 7,065,052 227 31,138
90% 89.9% 6,421,361 215 29,936
80% 80.1% 5,723,717 200 28,636
70% 69.9% 4,996,695 171 29,137
60% 60.0% 4,290,065 151 28,434
50% 50.0% 3,573,221 140 25,452
40% 40.0% 2,859,634 131 21,828
30% 29.9% 2,138,086 120 17,782
20% 20.0% 1,428,831 108 13,181
10% 10.0% 713,670 95.2 7,496
Active Idle 0 63.4 0
∑ssj_ops / ∑power = 24,169

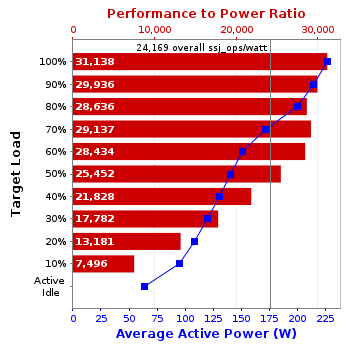

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge C6615
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz)
Form Factor: Blade
CPU Name: AMD EPYC 8534P
CPU Characteristics: 64-Core, 2.30GHz, 128 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 128 MB I+D on chip per chip, 16 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800-R (Slots A1-6 populated)
Power Supply Quantity and Rating (W): 1 x 1800
Power Supply Details: 1800W, Dell p/n H66J1
Disk Drive: 1 x Dell NVMe PE8010 RI M.2 960GB, Dell p/n 21GXV
Disk Controller: BOSS controller card, Dell p/n 3YGWT
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Broadcom NetXtreme Gigabit Ethernet (BCM5720)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: 2U C6600 Chassis and 1 x 1800W PSU DPN#H66J1
Software
Power Management: Power saver power plan enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.558)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -XX:AllocatePrefetchDistance=256 -XX:SurvivorRatio=8 -XX:TargetSurvivorRatio=99 -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=3900 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: start /NODE [0-7] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 32
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 0.3.3
Management Firmware Version: 7.00.55.00 (Build 10)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
IDRAC Thermal Set to Minimum Power (Performance per Watt Optimized)
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc
Model: PowerEdge R410
CPU Description: Intel Xeon E5620, 2.40 GHz
Memory amount (GB): 32
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 15.0.2+7-27, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91J936840
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: TesCom
Calibration Label: T76419
Date of Calibration: 25-Oct-2022
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 227 21.1
90% 215 21.1
80% 200 21.1
70% 171 21.1
60% 151 21.0
50% 140 21.0
40% 131 20.9
30% 120 20.9
20% 108 20.9
10% 95.2 20.9
Active Idle 63.4 20.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.8 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,246,910
Calibration 2     7,152,622
Calibration 3     7,139,866
ssj_ops@calibrated=7,146,244
100% 98.9% 7,146,244 7,065,052
90% 89.9% 6,431,620 6,421,361
80% 80.1% 5,716,995 5,723,717
70% 69.9% 5,002,371 4,996,695
60% 60.0% 4,287,746 4,290,065
50% 50.0% 3,573,122 3,573,221
40% 40.0% 2,858,498 2,859,634
30% 29.9% 2,143,873 2,138,086
20% 20.0% 1,429,249 1,428,831
10% 10.0% 714,624 713,670
Active Idle   0 0

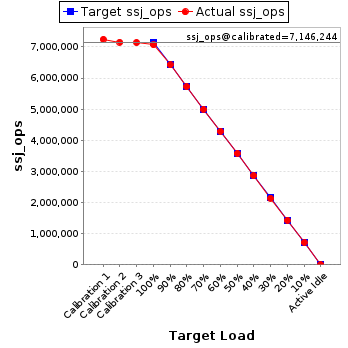

Graph of results
See the Host Performance Report for additional details.
