SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge C6615 (AMD EPYC 8534P, 2.30 GHz) | SPECpower_ssj2008 = 24,169 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Sep 11, 2023 |
| Hardware Availability: | Dec-2023 | Software Availability: | Feb-2022 | Publication: | Sep 27, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

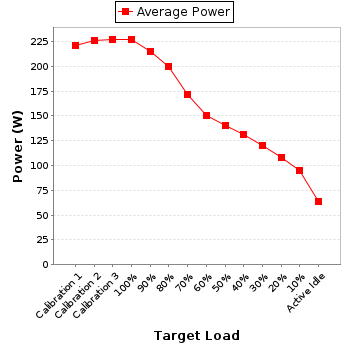

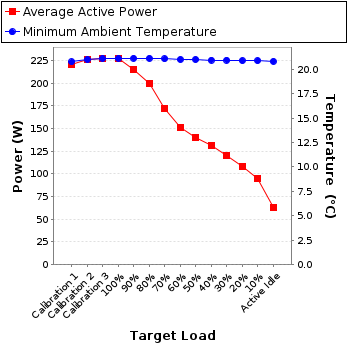

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 221 | 20.8 |
| Calibration 2 | 226 | 21.0 |
| Calibration 3 | 227 | 21.1 |
| 100% | 227 | 21.1 |
| 90% | 215 | 21.1 |
| 80% | 200 | 21.1 |
| 70% | 171 | 21.1 |
| 60% | 151 | 21.0 |
| 50% | 140 | 21.0 |
| 40% | 131 | 20.9 |
| 30% | 120 | 20.9 |
| 20% | 108 | 20.9 |
| 10% | 95.2 | 20.9 |
| Active Idle | 63.4 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91J936840 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T76419 |
| Date of Calibration: | 25-Oct-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 1.09 | 2.0 | 0.964 | 221 | 0.5% |
| Calibration 2 | 210 | 300.0 | 1.12 | 2.0 | 0.965 | 226 | 0.5% |
| Calibration 3 | 210 | 300.0 | 1.12 | 2.0 | 0.966 | 227 | 0.5% |
| 100% | 210 | 300.0 | 1.12 | 2.0 | 0.966 | 227 | 0.5% |
| 90% | 210 | 300.0 | 1.06 | 2.0 | 0.962 | 215 | 0.5% |
| 80% | 210 | 300.0 | 0.994 | 2.0 | 0.958 | 200 | 0.5% |
| 70% | 210 | 300.0 | 0.866 | 2.0 | 0.944 | 171 | 0.6% |
| 60% | 210 | 300.0 | 0.771 | 2.0 | 0.932 | 151 | 0.6% |
| 50% | 210 | 300.0 | 0.724 | 2.0 | 0.924 | 140 | 0.7% |
| 40% | 210 | 300.0 | 0.681 | 2.0 | 0.916 | 131 | 0.7% |
| 30% | 210 | 300.0 | 0.634 | 1.0 | 0.903 | 120 | 0.5% |
| 20% | 210 | 300.0 | 0.582 | 1.0 | 0.886 | 108 | 0.5% |
| 10% | 210 | 300.0 | 0.522 | 1.0 | 0.869 | 95.2 | 0.6% |
| Active Idle | 210 | 300.0 | 0.398 | 1.0 | 0.759 | 63.4 | 0.8% |
